Zernike calculator
Graphical calculator showing Zernike polynomials for a variety of aperture shapes.
이 제출물을 팔로우합니다
- 팔로우하는 게시물 피드에서 업데이트를 확인할 수 있습니다
- 정보 수신 기본 설정에 따라 이메일을 받을 수 있습니다
This calculator plots orthonormal polynomials for circular, annular, rectangular, hexagonal, and elliptical apertures. FRINGE Zernikes are used for the circular apertures. The annular apertures uses the polynomials derived by V. N. Mahajan, "Zernike annular polynomials for imaging systems with annular pupils," J. Opt. Soc. Am., Vol. 71, No. 1, pg 75-85 (1981). All other polynomials are from the paper V. N. Mahajan and G. M. Dai, "Orthonormal polynomials in wavefront analysis: analytical solution," Vol. 24, No. 9, pg 2994-3016 (Sept. 2007). Any errors in functions in the program are my own.

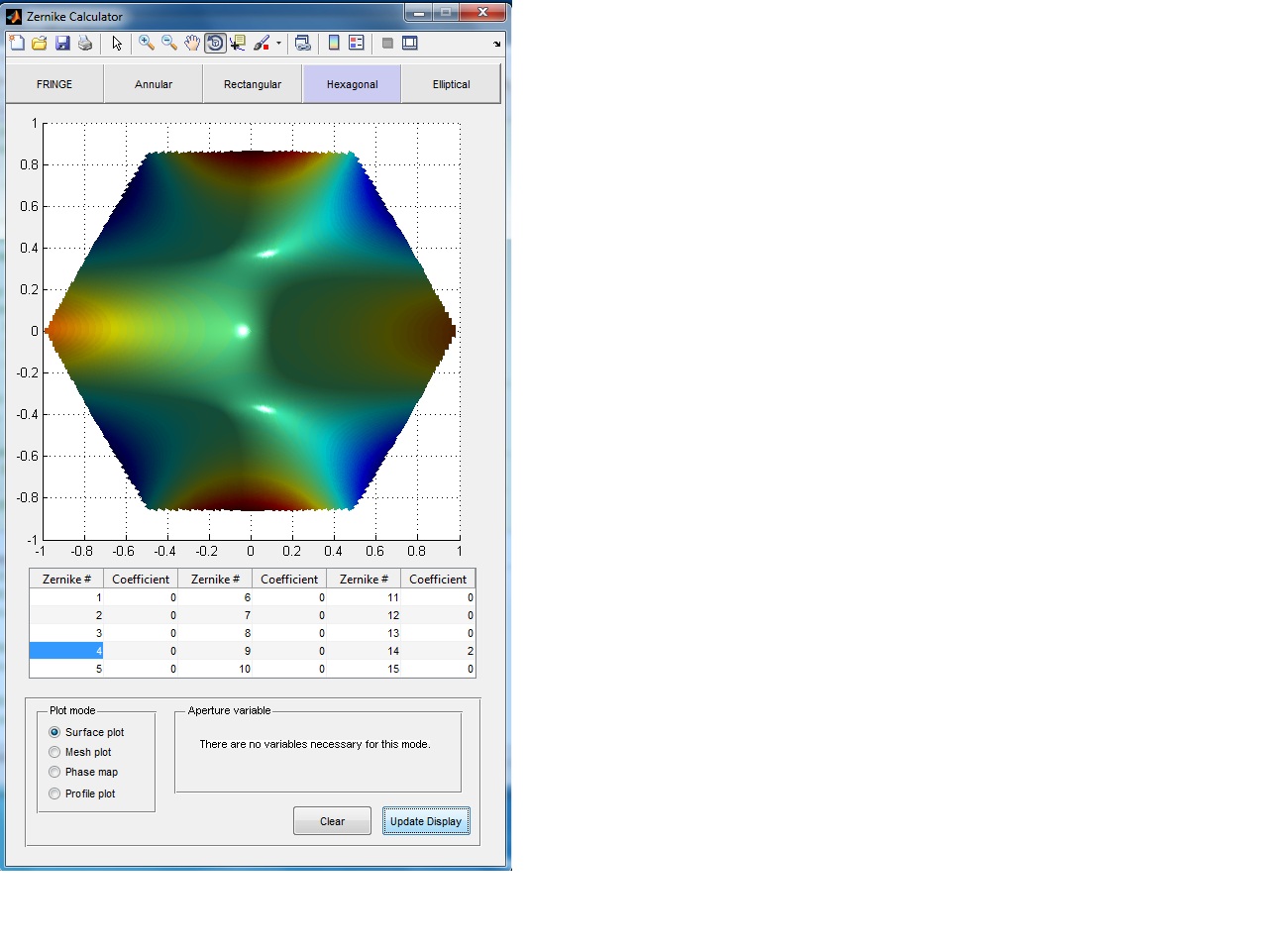

To plot a function, choose a tab from the top of the GUI, input some coefficient values in the GUI table, choose a plot mode, and click 'Update Display.'
인용 양식
Christina Reynolds (2026). Zernike calculator (https://kr.mathworks.com/matlabcentral/fileexchange/28652-zernike-calculator), MATLAB Central File Exchange. 검색 날짜: .
도움
도움 받은 파일: 3D Polar Plot
