quiver3Dpatch

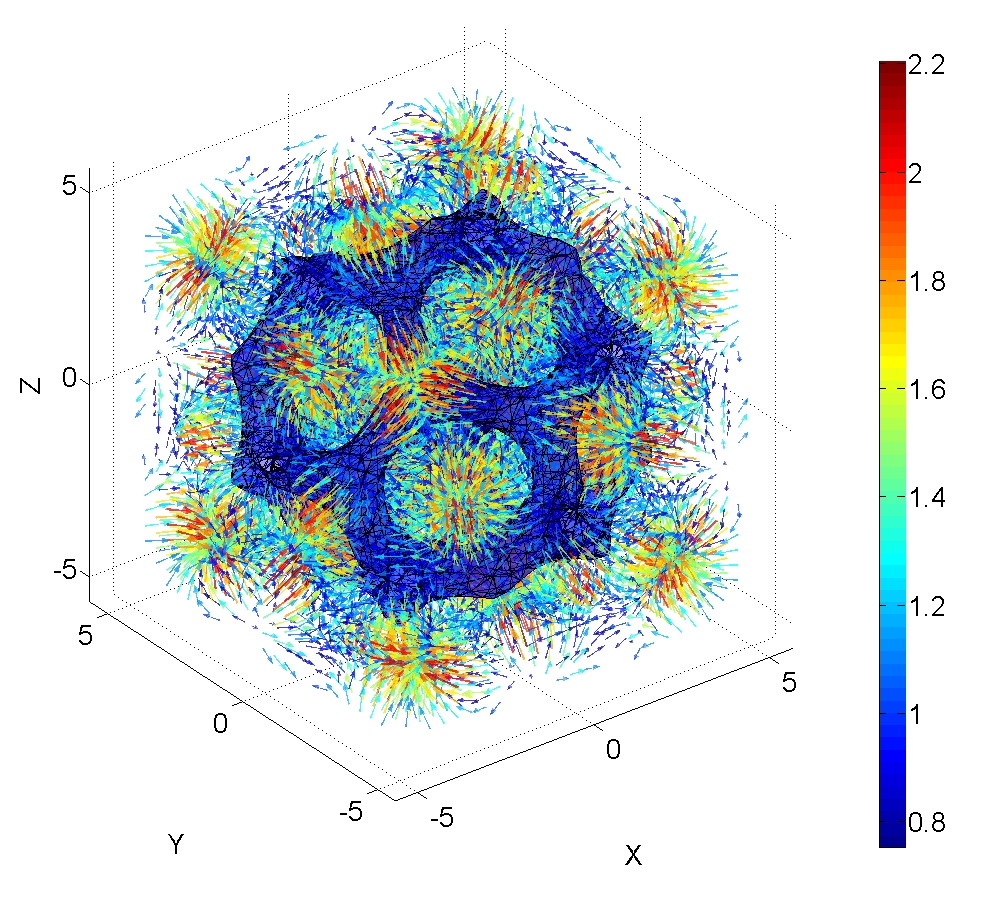

This function allows plotting of colored 3D arrows by generating patch
data (faces “F”, vertices “V” and color data “C”). The patch data which
allows plotting of 3D quiver arrows with specified (e.g. colormap driven)
color. To save memory n arrows are created using only n*6 faces and n*7
vertices. The vector "a" defines arrow length scaling where a(1) is the
smallest arrow length and a(2) the largest. The input c specified color data. Use the PATCH command to plot
the arrows:
[F,V,C]=quiver3Dpatch(x,y,z,ux,uy,uz,c,a);
patch('Faces',F,'Vertices',V,'CData',C,'FaceColor','flat');
인용 양식
Kevin Moerman (2024). quiver3Dpatch (https://www.mathworks.com/matlabcentral/fileexchange/28211-quiver3dpatch), MATLAB Central File Exchange. 검색됨 .
