Stacked line plot

version 2.1.1.0 (715 KB) by Christopher Hummersone
Stacked line plots from a matrix or vectors

8 Downloads

Updated 05 May 2018

GitHub view license on GitHub

NOTE: this function is now available from the IoSR Matlab Toolbox as iosr.figures.multiwaveplot.
-------------------------

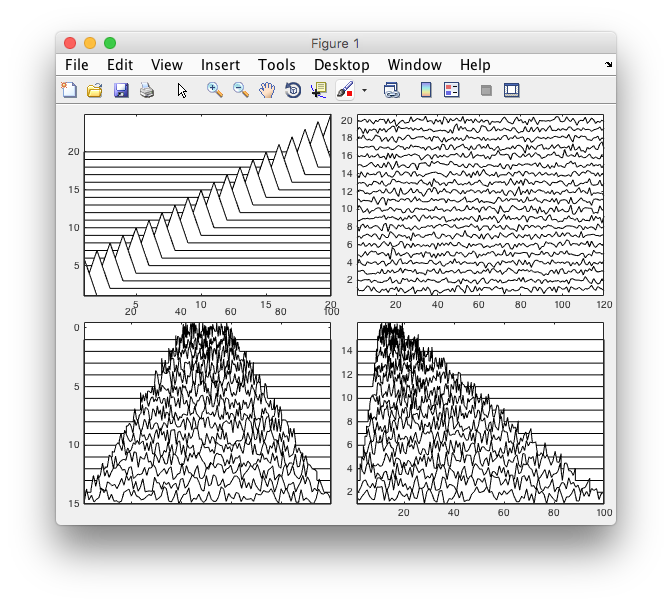

Multiwaveplot draws a series of stacked waves (one on top of the other) contained in the rows of an input 2-D matrix. Each wave has a designated row on the plot. Data may also be specified as vectors X, Y, and Z. The plot is similar to a cascade or waterfall plot.
