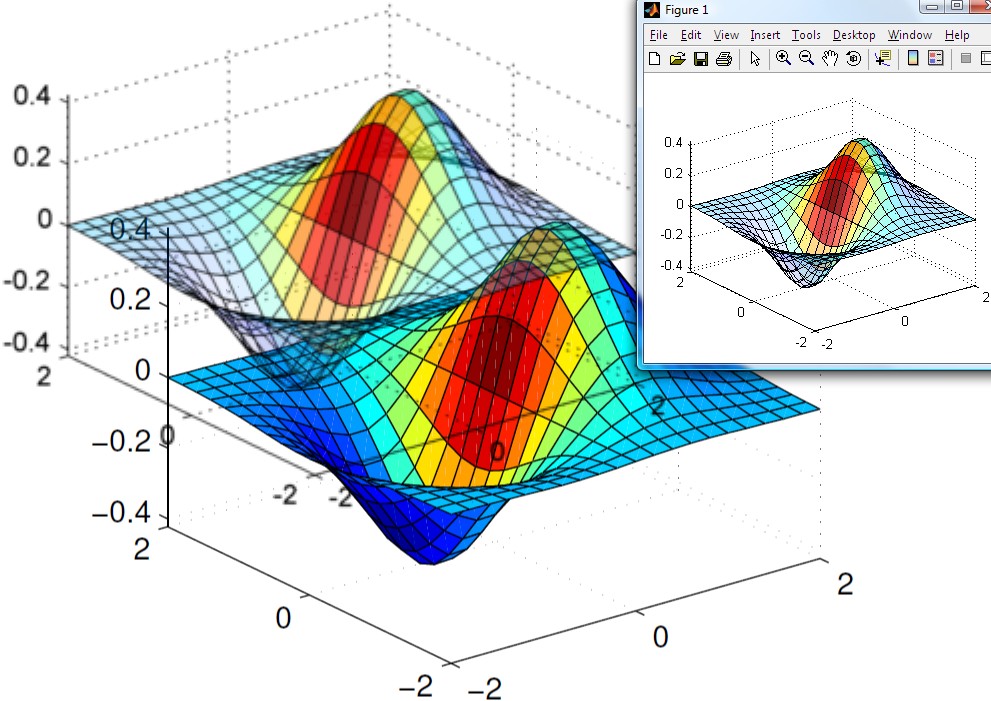

- Figure/axes reproduced as it appears on screen
- Cropped/padded borders (optional)
- Embedded fonts (vector formats)
- Improved line and grid line styles
- Anti-aliased graphics (bitmap formats)
- Render images at native resolution (optional for bitmap formats)
- Transparent background supported (pdf, eps, png, tiff, gif)
- Semi-transparent patch objects supported (png, tiff)
- RGB, CMYK or grayscale output (CMYK only with pdf, eps, tiff)
- Variable image compression, including lossless (pdf, eps, jpg)
- Optional rounded line-caps (pdf, eps)
- Optionally append to file (pdf, tiff, gif)
- Vector formats: pdf, eps, emf, svg
- Bitmap formats: png, tiff, jpg, bmp, gif, clipboard, export to workspace
- For a list of available options, run: help export_fig or: doc export_fig or read here: https://github.com/altmany/export_fig/blob/master/SYNTAX
- For usage examples, tips and detailed explanations, read https://github.com/altmany/export_fig/blob/master/README.md
- A technical description of the various components can be found at https://undocumentedmatlab.com/articles/export_fig
- Background color and figure dimensions are reproduced (the latter approximately, and ignoring cropping & magnification) in the output file. For transparent background (and semi-transparent patch objects), use the -transparent option, and set the axes 'Color' property to 'none' where desired. Only some image formats support a transparent background, and only png/tiff support transparency of patch objects.
- When exporting to vector format (pdf & eps), and to bitmap using the painters renderer, ghostscript (http://ghostscript.com) needs to be installed on your system
- When exporting to eps, the pdftops program, a part of the Xpdf package, also needs to be installed. You can download this from http://xpdfreader.com
- This submission was originally created by Oliver Woodford. Yair Altman maintains this utility since Jan 2015.
- A single textual ad message is displayed once a week. I have no intention of removing the ad; if you don't want to see even a single ad once a week, don't use the program.
