DVBS2 LDPC Decoder
Libraries:
Wireless HDL Toolbox /
Error Detection and Correction
Description
The DVBS2 LDPC Decoder block implements a lowdensity paritycheck (LDPC) decoder using layered belief propagation with minsum approximation and normalized minsum approximation algorithms for decoding LDPC codes according to the Digital Video Broadcast Satellite Second Generation (DVBS2) standard. The block accepts loglikelihood ratio (LLR) values, a stream of control signals, a frame type, and a code rate as inputs and outputs decoded bits, a stream of control signals, and a signal that indicates when the block is ready to accept new inputs.
The DVBS2 LDPC Decoder block supports early termination to help improve decoding performance and convergence speeds at high signaltonoiseratio (SNR) conditions. The block supports scalar values through the input/output (I/O) interface. It also supports forward error correction (FEC) frames of type normal and short with all the code rates supported by the DVBS2 standard. For more information about the DVBS2 standard, see [1].
The block provides an architecture suitable for HDL code generation and hardware deployment. You can use this block in DVBS2 modem development.
Ports
Input
data — LLR values
scalar
LLR values, specified as a scalar.
For HDL code generation, specify this value in signed fixedpoint format. The input word length must be in the range from 4 to 16.
Data Types: int8
 int16
 signed fixed point
ctrl — Control signals accompanying sample stream
samplecontrol
bus
Control signals accompanying the sample stream, specified as a
samplecontrol
bus. The bus includes the start
,
end
, and valid
control signals, which indicate the
boundaries of the frame and the validity of the samples.
start
— Indicates the start of the input frameend
— Indicates the end of the input framevalid
— Indicates that the data on the input data port is valid
For more details, see Sample Control Bus.
Data Types: bus
frameType — Type of FEC frame
scalar
Type of FEC frame, specified as a Boolean scalar.
0
— Indicates a normal frame1
— Indicates a short frame
Dependencies
To enable this port, set the FEC frame source parameter to
Input port
.
Data Types: Boolean
codeRateIdx — Code rate index
integer
Code rate index, specified as an integer. Code rate index values range from 0 to 10. Each code rate index value represents a specific code rate, as shown in this table.
codeRateIdx Value  Code Rate

0
 1/4
1  1/3
2  2/5
3  1/2
4
 3/5
5  2/3
6  3/4
7  4/5
8  5/6
9  8/9
10  9/10 (not supported for short frame)
You must specify this value in the fixdt(0,4,0)
format.
Dependencies
To enable this port, do one of the following:
Set the FEC frame source parameter to
Input port
.Set the FEC frame source parameter to
Property
and the Code rate source parameter toInput port
.
Data Types: fixdt(0,4,0)
iter — Number of iterations
scalar
Number of iterations, specified as an unsigned integer in the range from 1 to 63.
If you specify an iter value greater than 63 or less than 1,
the block overrides your specification and sets the iter value to
8
before decoding.
Dependencies
To enable this port, set the Decoding termination criteria
parameter to Max
or Early
and
the Source for number of iterations parameter to
Input port
.
Data Types: uint8
Output
data — Decoded bits
scalar
Decoded bits, returned as a Boolean scalar.
Data Types: Boolean
ctrl — Control signals accompanying sample stream
samplecontrol
bus
Control signals accompanying the sample stream, returned as a samplecontrol
bus. The bus includes the start
, end
, and
valid
control signals, which indicate the boundaries of the frame
and the validity of the samples.
start
— Indicates the start of the output frameend
— Indicates the end of the output framevalid
— Indicates that the data on the output data port is valid
For more details, see Sample Control Bus.
Data Types: bus
nextFrame — Block ready indicator
scalar
Block ready indicator, returned as a Boolean scalar.
The block sets this signal to 1
(true
) when
the block is ready to accept the start of the next frame. If the block receives an
input ctrl.start signal while nextFrame is
0
(false
), the block discards the frame in
progress and begins processing the new data.
Data Types: Boolean
parityCheck — Parity check status indicator
scalar
Parity check status indicator, returned as a Boolean scalar. The port indicates the status of the parity check after the decoding operation.
0
— Indicates that the parity check failed1
— Indicates that the parity check passed
Dependencies
To enable this port, select the Enable parity check output port parameter.
Data Types: Boolean
actIter — Actual number of iterations
scalar
Actual number of iterations the block takes to decode the output, returned as a scalar.
Dependencies
To enable this port, set the Decoding termination criteria
parameter to Early
.
Data Types: uint8
Parameters
FEC frame source — Source for FEC frame
Input port
(default)  Property
Select the FEC frame source as Input port
or
Property
.
Property
— Select this option to enable the FEC frame type parameter.Input port
— Select this option to enable the frameType port.
FEC frame type — FEC frame type
Normal
(default)  Short
Select the FEC frame type as Normal
or
Short
.
Dependencies
To enable this parameter, set the FEC frame source parameter
to Property
.
Code rate source — Source for code rate
Property
(default)  Input port
Select the code rate source as Property
or
Input port
.
Property
— Select this option to enable the Code rate parameter.Input port
— Select this option to enable the codeRateIdx port.
Dependencies
To enable this parameter, set the FEC frame source parameter
to Property
.
Code rate — Code rate
1/4
(default)  1/3
 2/5
 1/2
 3/5
 2/3
 3/4
 4/5
 5/6
 8/9
 9/10
Select the code rate.
Note
Code rate of 9/10
is not supported for short
frame.
Dependencies
To enable this parameter, set the FEC frame source parameter
to Property
and set the Code rate
source parameter to Property
.
Algorithm — LDPC decoding algorithm
Minsum
(default)  Normalized minsum
Select the type of LDPC decoding algorithm. For more information, see Algorithm.
Minsum
— Use this option to select the layered belief propagation algorithm with a minsum approximation. For more information, see MinSum Approximation.Normalized minsum
— Use this option to select the layered belief propagation algorithm with a normalized minsum approximation. For more information, see Normalized MinSum Approximation.
Scaling factor — Scaling factor for normalized minsum decoding
0.75
(default)  scalar in the range 0.5 to 1, incremented by 0.0625
Specify the scaling factor as a scalar in the range 0.5 to 1, incremented by 0.0625.
Dependencies
To enable this parameter, set the Algorithm parameter to
Normalized minsum
.
Decoding termination criteria — Termination criteria
Max
(default)
Early
Select the decoding termination criteria.
Max
— Terminate decoding when the block reaches the number of iterations specified in the block mask or through the iter input port.Early
— Terminate decoding when the block meets all of the parity checks or when the block reaches the maximum number of iterations provided in the block mask.
Source for number of iterations — Source selection for number of iterations
Property
(default)  Input port
Select the source for specifying the number of iterations.
You can set the number of iterations by using either an input port or a parameter.
Property
— Select this option to enable the Number of iterations parameter.Input port
— Select this option to enable the iter port.
Number of iterations — Number of decoding iterations
8
(default)  integer in the range from 1 to 63
Specify the number of decoding iterations.
Dependencies
To enable this parameter, set the Decoding termination
criteria parameter to Max
and the
Source for number of iterations parameter to
Property
.
Maximum number of iterations — Maximum number of decoding iterations
8
(default)  integer in the range from 1 to 63
Specify the maximum number of decoding iterations.
Dependencies
To enable this parameter, set the Decoding termination
criteria parameter to Early
and set the
Source for number of iterations parameter to
Property
.
Enable parity check output port — Parity check status
off
(default)  on
Select this parameter to enable the parityCheck output port to view the status of the parity check.
Algorithms
This figure shows the architecture block diagram of the DVBS2 LDPC Decoder block. The Controller block controls the layer and iteration count of the decoding process. The Variable node RAM block stores the variable node (VN) messages, and the Check node RAM block stores the check node (CN) messages. The Functional Unit block calculates the VN messages and CN messages based on layered belief propagation and either the normalized minsum approximation algorithm or the minsum approximation algorithm. The Termination/Parity check status block calculates the parity checks and provides the parity check status after each iteration. For more information about decoding algorithms, see the following sections.
Belief Propagation Decoding
The implementation of the belief propagation algorithm is based on the decoding algorithm presented in [2]. For a transmitted LDPCencoded codeword, c, where $$c=({c}_{0},{c}_{1},\mathrm{...},{c}_{n1})$$, the input to the LDPC decoder is the loglikelihood ratio (LLR) value $$L({c}_{i})=\mathrm{log}\left(\frac{\mathrm{Pr}({c}_{i}=0\text{channeloutputfor}{c}_{i})}{\mathrm{Pr}({c}_{i}=1\text{channeloutputfor}{c}_{i})}\right)$$.
In each iteration, the key components of the algorithm are updated based on these equations:
$$L({r}_{ji})=2\text{\hspace{0.17em}}\text{atanh}\text{\hspace{0.17em}}\left({\displaystyle \prod _{{i}^{\prime}\in {V}_{j}\backslash i}\mathrm{tanh}\left(\frac{1}{2}L({q}_{{i}^{\prime}j})\right)}\right)$$,
$$L({q}_{ij})=L({c}_{i})+{\displaystyle \sum _{{j}^{\prime}\in {C}_{i}\backslash j}L({r}_{{j}^{\prime}i})}$$, initialized as $$L({q}_{ij})=L({c}_{i})$$ before the first iteration, and
$$L({Q}_{i})=L({c}_{i})+{\displaystyle \sum _{{j}^{\prime}\in {C}_{i}}L({r}_{{j}^{\prime}i})}$$.
At the end of each iteration, $$L({Q}_{i})$$ is an updated estimate of the LLR value for the transmitted bit $${c}_{i}$$. The value $$L({Q}_{i})$$ is the softdecision output for $${c}_{i}$$. If $$L({Q}_{i})<0$$, the harddecision output for $${c}_{i}$$ is 1. Otherwise, the output is 0.
Layered Belief Propagation Decoding
The implementation of the layered belief propagation algorithm is based on the decoding algorithm presented in [3], Section II.A. The decoding loop iterates over subsets of rows (layers) of the PCM. For each row, m, in a layer and each bit index, j, the implementation updates the key components of the algorithm based on these equations:
(1) $$L({q}_{mj})=L({q}_{j}){R}_{mj}$$,
(2) $${A}_{mj}={\displaystyle \sum _{\begin{array}{c}n\in N\left(m\right)\\ n\ne j\end{array}}\text{\psi}(L({q}_{mn}))}$$,
(3) $${s}_{mj}={\displaystyle \prod _{\begin{array}{c}n\in N\left(m\right)\\ n\ne j\end{array}}\text{sign}(L({q}_{mn}))}$$,
(4) $${R}_{mj}={s}_{mj}\text{\psi}({A}_{mj})$$, and
(5) $$L({q}_{j})=L({q}_{mj})+{R}_{mj}$$.
For each layer, the decoding equation (5) works on the combined input obtained from the current LLR inputs $$L({q}_{mj})$$ and the previous layer updates $${R}_{mj}$$.
Because only a subset of the nodes is updated in a layer, the layered belief propagation algorithm is faster compared to the belief propagation algorithm. To achieve the same error rate as attained with belief propagation decoding, use half the number of decoding iterations when using the layered belief propagation algorithm.
MinSum Approximation
The implementation of the minsum approximation algorithm follows the layered belief propagation algorithm with equation (2) replaced by
$${A}_{mj}=\underset{\begin{array}{c}n\in N\left(m\right)\\ n\ne j\end{array}}{\mathrm{min}}(\leftL({q}_{mn})\right\cdot \alpha )$$,
where α is 1.
Normalized MinSum Approximation
The implementation of the normalized minsum approximation algorithm follows the layered belief propagation algorithm with equation (2) replaced by
$${A}_{mj}=\underset{\begin{array}{c}n\in N\left(m\right)\\ n\ne j\end{array}}{\mathrm{min}}(\leftL({q}_{mn})\right\cdot \alpha )$$,
where α is in the range [0, 1] and is the scaling factor specified by the Scaling factor parameter. This equation is an adaptation of equation (4) presented in [4].
Latency
The latency of the block varies based on the frame type, code rate, and number of iterations.
The latency of the block is equal to (r x t
) +
d
+ inputLen. In this calculation, r is the number of iterations,
t is the number of clocks required to decode one iteration,
d
is the pipeline delays, which are a fixed value equal to 9, and
inputLen is the length of the input data.
The table shows the number of clocks the block requires to decode one iteration for normal and short frame types with different code rates.
Code Rate  Number of Clocks Per Iteration

Normal  Short
1/4  20,520  5328
1/3  20,160  5040
2/5  19,872  4968
1/2  18,000  4360
3/5  19,008  4752
2/3  14,880  3720
3/4  14,040  3168
4/5  13,536  2880
5/6  13,200  2896
8/9  10,400  2600
9/10  10,244  Code rate not supported for short frame

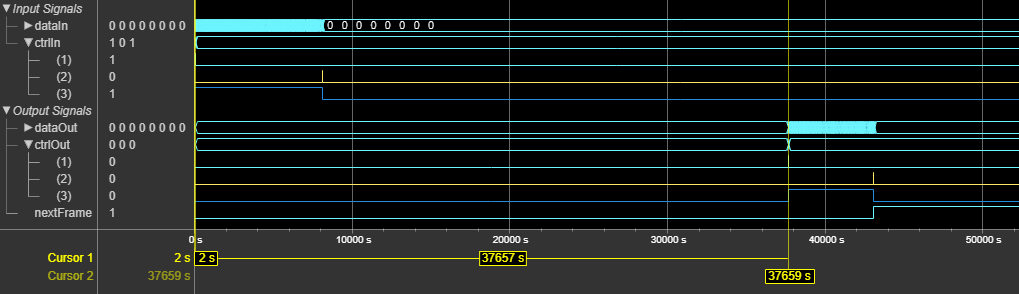

This figure shows a sample output and latency of the DVBS2 LDPC Decoder
block for the default configuration when you specify frameType as
0
(Normal frame) and codeRateIdx as
5
(2/3 code rate). The latency of the block is 183,849 clock
cycles.
EbNo and BER Plots
This section shows the EbNo and BER plots of the block for specified inputs and parameter settings.
This plot shows the performance of the block for a 4 bit QPSK modulated LLR input of
short and normal frames with code rates 1/2 and 3/4, respectively, when you set the
Algorithm parameter to Minsum
.
This plot shows the performance of the block for a 4 bit 16APSK modulated LLR input of
short and normal frames with code rates 3/5 and 5/6, respectively, when you set the
Algorithm parameter to Minsum
.
Performance
The performance of the synthesized HDL code varies with the target and synthesis options. It also varies based on the type of algorithm, frame type source, code rate source, decoding termination criteria, and word length of the input LLR values.
This table shows the resource and performance data synthesis results of the block for
the supported DVBS2 standard when you specify the input LLR values in
fixdt(1,4,0)
format and set the Algorithm
parameter to Minsum
, the Number of
iterations parameter to 8
, and the FEC frame
source parameter to Input port
. The generated HDL is
targeted to the Xilinx^{®}
Zynq^{®}Ultrascale+™ MPSoC  ZCU102 Evaluation Board.
Slice LUTs  Slice Registers  Block RAMs  Maximum Frequency in MHz

14,390  8,712  135  319.30
References
[1] ETSI Standard EN 302 307 V1.4.1: Digital Video Broadcasting (DVB); Second generation framing structure, channel coding and modulation systems for Broadcasting, Interactive Services, News Gathering and other broadband satellite applications (DVBS2), European Telecommunications Standards Institute, Valbonne, France, 200503.
[2] Gallager, R. “LowDensity ParityCheck Codes.” IEEE Transactions on Information Theory 8, no. 1 (January 1962): 21–28. https://doi.org/10.1109/TIT.1962.1057683.
[3] Hocevar, D.E. “A Reduced Complexity Decoder Architecture via Layered Decoding of LDPC Codes.” In IEEE Workshop On Signal Processing Systems, 2004. SIPS 2004, 107–12. Austin, Texas, USA: IEEE, 2004. https://doi.org/10.1109/SIPS.2004.1363033.
[4] Chen, Jinghu, R.M. Tanner, C. Jones, and Yan Li. "Improved MinSum Decoding Algorithms for Irregular LDPC Codes." In Proceedings. International Symposium on Information Theory, 2005. ISIT 2005. https://doi: 10.1109/ISIT.2005.1523374.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports C/C++ code generation for Simulink^{®} accelerator and rapid accelerator modes and for DPI component generation.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

You cannot generate HDL for this block inside a Resettable Synchronous Subsystem (HDL Coder).
Version History
Introduced in R2022a
MATLAB 명령
다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.
명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
