nodepar

Node parent

Syntax

f = nodepar(t,n)

f = nodepar(t,n,"deppos")

Description

nodepar is a tree-management utility.

f = nodepar(t,n) returns a vector that contains the indices of the "parent(s)" of the nodes n in the tree t. In the tree, nodes are numbered from left to right and from top to bottom. The root index is 0.

Note

nodepar(t,0) or nodepar(t,[0 0]) returns -1.

f = nodepar(t,n,"deppos") returns a matrix that contains the depths and positions of the "parent(s)" of the nodes n in the tree t.

Note

nodepar(t,0,"deppos") or nodepar(t,[0,0],"deppos") returns [-1,0].

Examples

Obtain Positions of Parent Nodes

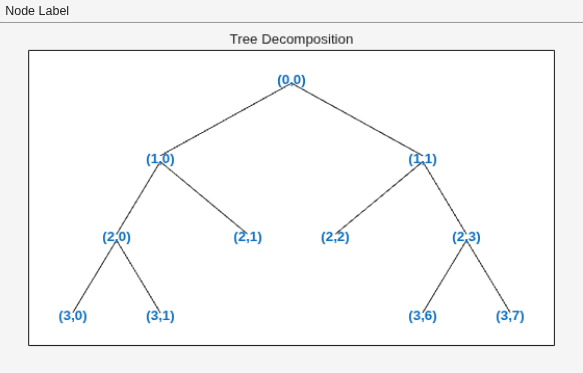

A tree of order 2 is a binary tree. Create a binary tree of depth 3. Recompose two of the nodes. Plot the tree.

t = ntree(2,3);
t = nodejoin(t,5);
t = nodejoin(t,4);
plot(t)

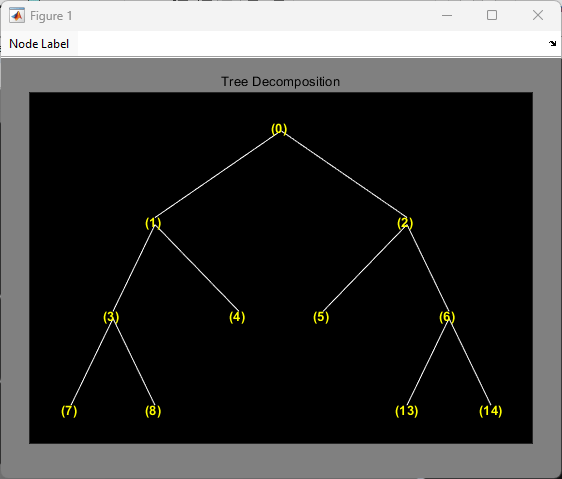

Change the Node Label from Depth_Position to Index to get this figure:

Obtain the depths and positions of the parents of the (2,2) and (3,1) nodes.

nodepar(t,[2 2; 3 1],"deppos")

ans = 2×2

     1     1
     2     0

Obtain the indices of the parents of the nodes whose indices are 1, 7, and 14.

nodepar(t,[1;7;14])

ans = 3×1

     0
     3
     6

Input Arguments

t — Tree

ntree object | dtree object | wptree object

Tree, specified as an ntree, dtree, or wptree object.

n — Tree nodes

column vector | two-column matrix

Tree nodes, specified as a column vector that contains indices of the nodes or a matrix that contains the depths and positions of the nodes. If specified as a matrix, n(i,1) and n(i,2) are the depth and position, respectively, of the ith node.

Data Types: double

Output Arguments

f — Tree nodes

column vector | matrix

Tree nodes, returned as a column vector or matrix. If f is a vector, f contains node indices. If f is matrix, f(i,1) and f(i,2) are the depth and position, respectively, of the ith node.

Version History

Introduced before R2006a
