Import Video from MATLAB Workspace

This example shows how to import a video from MATLAB to Simulink workspace by using Video From Workspace block.

Load the video data to MATLAB workspace.

load('videosignal.mat')

Open the Simulink model.

modelname='ex_blkvideofromworkspace.slx';
open_system(modelname);

The model reads the video data from MATLAB workspace. Set the Form output after final value by parameter of the Video From Workspace block to Holding final value. This parameter setting repeats the last frame of the video after generating all the frames.

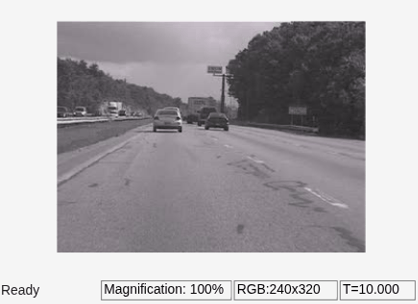

Simulate the model and display the imported video signal by using Video Viewer block.

sim(modelname);
