# updateMetricsAndFit

Update performance metrics in kernel incremental learning model given new data and train model

*Since R2022a*

## Description

Given streaming data, `updateMetricsAndFit`

first evaluates the
performance of a configured incremental learning model for kernel regression (`incrementalRegressionKernel`

object) or binary kernel classification (`incrementalClassificationKernel`

object) by calling `updateMetrics`

on
incoming data. Then `updateMetricsAndFit`

fits the model to that data by calling
`fit`

. In other words,
`updateMetricsAndFit`

performs *prequential evaluation*
because it treats each incoming chunk of data as a test set, and tracks performance metrics
measured cumulatively and over a specified window [1].

`updateMetricsAndFit`

provides a simple way to update model performance metrics
and train the model on each chunk of data. Alternatively, you can perform the operations
separately by calling `updateMetrics`

and then `fit`

,
which allows for more flexibility (for example, you can decide whether you need to train the
model based on its performance on a chunk of data).

returns an incremental learning model `Mdl`

= updateMetricsAndFit(`Mdl`

,`X`

,`Y`

)`Mdl`

, which is the input incremental learning model `Mdl`

with the following modifications:

`updateMetricsAndFit`

measures the model performance on the incoming predictor and response data,`X`

and`Y`

respectively. When the input model is*warm*(`Mdl.IsWarm`

is`true`

),`updateMetricsAndFit`

overwrites previously computed metrics, stored in the`Metrics`

property, with the new values. Otherwise,`updateMetricsAndFit`

stores`NaN`

values in`Metrics`

instead.`updateMetricsAndFit`

fits the modified model to the incoming data by following this procedure:

The input and output models have the same data type.

## Examples

### Update Performance Metrics and Train Model on Data Stream

Create an incremental kernel model for binary classification by calling `incrementalClassificationKernel`

directly. Track the model performance and fit the model to streaming data in one call by using `updateMetricsAndFit`

.

Create a default incremental kernel model for binary classification.

Mdl = incrementalClassificationKernel()

Mdl = incrementalClassificationKernel IsWarm: 0 Metrics: [1x2 table] ClassNames: [1x0 double] ScoreTransform: 'none' NumExpansionDimensions: 0 KernelScale: 1 Properties, Methods

`Mdl`

is an `incrementalClassificationKernel`

model object. All its properties are read-only.

`Mdl`

must be fit to data before you can use it to perform any other operations.

Load the human activity data set. Randomly shuffle the data.

load humanactivity n = numel(actid); rng(1) % For reproducibility idx = randsample(n,n); X = feat(idx,:); Y = actid(idx);

For details on the data set, enter `Description`

at the command line.

Responses can be one of five classes: Sitting, Standing, Walking, Running, or Dancing. Dichotomize the response by identifying whether the subject is moving (`actid`

> 2).

Y = Y > 2;

Fit the incremental model to the training data by using the `updateMetricsAndFit`

function. At each iteration:

Simulate a data stream by processing a chunk of 50 observations.

Overwrite the previous incremental model with a new one fitted to the incoming observations.

Store the cumulative metrics, window metrics, and number of training observations to see how they evolve during incremental learning.

% Preallocation numObsPerChunk = 50; nchunk = floor(n/numObsPerChunk); ce = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]); numtrainobs = [zeros(nchunk,1)]; % Incremental fitting for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; Mdl = updateMetricsAndFit(Mdl,X(idx,:),Y(idx)); ce{j,:} = Mdl.Metrics{"ClassificationError",:}; numtrainobs(j) = Mdl.NumTrainingObservations; end

`Mdl`

is an `incrementalClassificationKernel`

model object trained on all the data in the stream. During incremental learning and after the model is warmed up, `updateMetricsAndFit`

checks the performance of the model on the incoming observations, and then fits the model to those observations.

To see how the number of observations and performance metrics evolve during training, plot them on separate tiles.

t = tiledlayout(2,1); nexttile plot(numtrainobs) ylabel("Number of Training Observations") xlim([0 nchunk]) nexttile plot(ce.Variables) xlim([0 nchunk]) ylabel("Classification Error") xline((Mdl.EstimationPeriod + Mdl.MetricsWarmupPeriod)/numObsPerChunk,"--"); legend(ce.Properties.VariableNames) xlabel(t,"Iteration")

The plot suggests that `updateMetricsAndFit`

does the following:

Fit the model during all incremental learning iterations.

Compute the performance metrics after the metrics warm-up period only.

Compute the cumulative metrics during each iteration.

Compute the window metrics after processing 200 observations (4 iterations).

### Specify Observation Weights

Train a kernel regression model by using `fitrkernel`

, and convert it to an incremental learner by using `incrementalLearner`

. Track the model performance, and fit the model to streaming data in one call by using `updateMetricsAndFit`

. Specify the observation weights when you call `updateMetricsAndFit`

.

**Load and Preprocess Data**

Load the 2015 NYC housing data set, and shuffle the data. For more details on the data, see NYC Open Data.

load NYCHousing2015 rng(1) % For reproducibility n = size(NYCHousing2015,1); idxshuff = randsample(n,n); NYCHousing2015 = NYCHousing2015(idxshuff,:);

Suppose that the data collected from Manhattan (`BOROUGH`

= `1`

) was collected using a new method that doubles its quality. Create a weight variable that attributes 2 to observations collected from Manhattan, and 1 to all other observations.

n = size(NYCHousing2015,1); NYCHousing2015.W = ones(n,1) + (NYCHousing2015.BOROUGH == 1);

Extract the response variable `SALEPRICE`

from the table. For numerical stability, scale `SALEPRICE`

by `1e6`

.

Y = NYCHousing2015.SALEPRICE/1e6; NYCHousing2015.SALEPRICE = [];

To reduce computational cost for this example, remove the `NEIGHBORHOOD`

column, which contains a categorical variable with 254 categories.

NYCHousing2015.NEIGHBORHOOD = [];

Create dummy variable matrices from the other categorical predictors.

catvars = ["BOROUGH","BUILDINGCLASSCATEGORY"]; dumvarstbl = varfun(@(x)dummyvar(categorical(x)),NYCHousing2015, ... InputVariables=catvars); dumvarmat = table2array(dumvarstbl); NYCHousing2015(:,catvars) = [];

Treat all other numeric variables in the table as predictors of sales price. Concatenate the matrix of dummy variables to the rest of the predictor data.

```
idxnum = varfun(@isnumeric,NYCHousing2015,OutputFormat="uniform");
X = [dumvarmat NYCHousing2015{:,idxnum}];
```

**Train Kernel Regression Model**

Fit a kernel regression model to a random sample of half the data.

idxtt = randsample([true false],n,true); TTMdl = fitrkernel(X(idxtt,:),Y(idxtt),Weights=NYCHousing2015.W(idxtt))

TTMdl = RegressionKernel ResponseName: 'Y' Learner: 'svm' NumExpansionDimensions: 2048 KernelScale: 1 Lambda: 2.1977e-05 BoxConstraint: 1 Epsilon: 0.0547 Properties, Methods

`TTMdl`

is a `RegressionKernel`

model object representing a traditionally trained kernel regression model.

**Convert Trained Model**

Convert the traditionally trained kernel regression model to a model for incremental learning.

IncrementalMdl = incrementalLearner(TTMdl)

IncrementalMdl = incrementalRegressionKernel IsWarm: 1 Metrics: [1x2 table] ResponseTransform: 'none' NumExpansionDimensions: 2048 KernelScale: 1 Properties, Methods

`IncrementalMdl`

is an `incrementalRegressionKernel`

model object. All its properties are read-only.

**Track Performance Metrics and Fit Model**

Perform incremental learning on the rest of the data by using the `updateMetricsAndFit`

function. At each iteration:

Simulate a data stream by processing a chunk of 500 observations.

Call

`updateMetricsAndFit`

to update the cumulative and window epsilon insensitive loss of the model given the incoming chunk of observations, and then fit the model to the data. Overwrite the previous incremental model with a new one. Specify the observation weights.Store the losses.

% Preallocation idxil = ~idxtt; nil = sum(idxil); numObsPerChunk = 500; nchunk = floor(nil/numObsPerChunk); ei = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]); Xil = X(idxil,:); Yil = Y(idxil); Wil = NYCHousing2015.W(idxil); % Incremental fitting for j = 1:nchunk ibegin = min(nil,numObsPerChunk*(j-1) + 1); iend = min(nil,numObsPerChunk*j); idx = ibegin:iend; IncrementalMdl = updateMetricsAndFit(IncrementalMdl,Xil(idx,:),Yil(idx), ... Weights=Wil(idx)); ei{j,:} = IncrementalMdl.Metrics{"EpsilonInsensitiveLoss",:}; end

`IncrementalMdl`

is an `incrementalRegressionKernel`

model object trained on all the data in the stream.

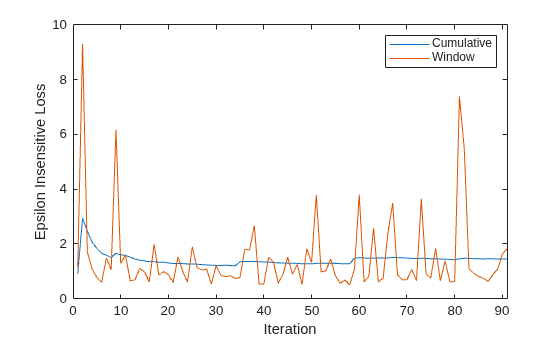

Plot a trace plot of the performance metrics.

plot(ei.Variables) xlim([0 nchunk]) ylabel("Epsilon Insensitive Loss") legend(ei.Properties.VariableNames) xlabel("Iteration")

The cumulative loss gradually changes with each iteration (chunk of 500 observations), whereas the window loss jumps. Because the metrics window is 200 by default, `updateMetricsAndFit`

measures the performance based on the latest 200 observations in each 500 observation chunk.

## Input Arguments

`Mdl`

— Incremental learning model

`incrementalClassificationKernel`

model object | `incrementalRegressionKernel`

model object

Incremental learning model whose performance is measured and then the model is fit
to data, specified as an `incrementalClassificationKernel`

or `incrementalRegressionKernel`

model object. You can create
`Mdl`

directly or by converting a supported, traditionally trained
machine learning model using the `incrementalLearner`

function. For
more details, see the corresponding reference page.

If `Mdl.IsWarm`

is `false`

,
`updateMetricsAndFit`

does not track the performance of the model. For more
details, see Performance Metrics.

`X`

— Chunk of predictor data

floating-point matrix

Chunk of predictor data, specified as a floating-point matrix of *n*
observations and `Mdl.NumPredictors`

predictor variables.

The length of the observation labels `Y`

and the number of observations in `X`

must be equal; `Y(`

is the label of observation * j*)

*j*(row) in

`X`

.**Note**

If

`Mdl.NumPredictors`

= 0,`updateMetricsAndFit`

infers the number of predictors from`X`

, and sets the corresponding property of the output model. Otherwise, if the number of predictor variables in the streaming data changes from`Mdl.NumPredictors`

,`updateMetricsAndFit`

issues an error.`updateMetricsAndFit`

supports only floating-point input predictor data. If your input data includes categorical data, you must prepare an encoded version of the categorical data. Use`dummyvar`

to convert each categorical variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable matrices and any other numeric predictors. For more details, see Dummy Variables.

**Data Types: **`single`

| `double`

`Y`

— Chunk of responses (labels)

categorical array | character array | string array | logical vector | floating-point vector | cell array of character vectors

Chunk of responses (labels), specified as a categorical, character, or string array, a logical or floating-point vector, or a cell array of character vectors for classification problems; or a floating-point vector for regression problems.

The length of the observation labels `Y`

and the number of
observations in `X`

must be equal;
`Y(`

is the label of observation
* j*)

*j*(row) in

`X`

.For classification problems:

`updateMetricsAndFit`

supports binary classification only.When the

`ClassNames`

property of the input model`Mdl`

is nonempty, the following conditions apply:If

`Y`

contains a label that is not a member of`Mdl.ClassNames`

,`updateMetricsAndFit`

issues an error.The data type of

`Y`

and`Mdl.ClassNames`

must be the same.

**Data Types: **`char`

| `string`

| `cell`

| `categorical`

| `logical`

| `single`

| `double`

`weights`

— Chunk of observation weights

floating-point vector of positive values

Chunk of observation weights, specified as a floating-point vector of positive values.
`updateMetricsAndFit`

weighs the observations in `X`

with the corresponding values in `weights`

. The size of
`weights`

must equal *n*, the number of
observations in `X`

.

By default, `weights`

is
`ones(`

.* n*,1)

For more details, including normalization schemes, see Observation Weights.

**Data Types: **`double`

| `single`

**Note**

If an observation (predictor or label) or weight contains at least one missing (

`NaN`

) value,`updateMetricsAndFit`

ignores the observation. Consequently,`updateMetricsAndFit`

uses fewer than*n*observations to compute the model performance and create an updated model, where*n*is the number of observations in`X`

.The chunk size

*n*and the stochastic gradient descent (SGD) hyperparameter mini-batch size (`Mdl.SolverOptions.BatchSize`

) can be different values, and*n*does not have to be an exact multiple of the mini-batch size.`updateMetricsAndFit`

uses the`BatchSize`

observations when it applies SGD for each learning cycle. The number of observations in the last mini-batch for the last learning cycle can be less than or equal to`Mdl.SolverOptions.BatchSize`

.

## Output Arguments

`Mdl`

— Updated incremental learning model

`incrementalClassificationKernel`

model object | `incrementalRegressionKernel`

model object

Updated incremental learning model, returned as an incremental learning model object
of the same data type as the input model `Mdl`

, either `incrementalClassificationKernel`

or `incrementalRegressionKernel`

.

When you call `updateMetricsAndFit`

, the following conditions
apply:

If the model is not warm,

`updateMetricsAndFit`

does not compute performance metrics. As a result, the`Metrics`

property of`Mdl`

remains completely composed of`NaN`

values. For more details, see Performance Metrics.If

`Mdl.EstimationPeriod`

> 0,`updateMetricsAndFit`

estimates hyperparameters using the first`Mdl.EstimationPeriod`

observations passed to it; the function does not train the input model using that data. However, if an incoming chunk of*n*observations is greater than or equal to the number of observations remaining in the estimation period*m*,`updateMetricsAndFit`

estimates hyperparameters using the first*n*–*m*observations, and fits the input model to the remaining*m*observations. Consequently, the software updates model parameters, hyperparameter properties, and recordkeeping properties such as`NumTrainingObservations`

.

For classification problems, if the `ClassNames`

property of the input model `Mdl`

is an empty array, `updateMetricsAndFit`

sets the `ClassNames`

property of the output model `Mdl`

to `unique(Y)`

.

## Algorithms

### Performance Metrics

`updateMetrics`

and`updateMetricsAndFit`

track model performance metrics, specified by the row labels of the table in`Mdl.Metrics`

, from new data only when the incremental model is*warm*(`IsWarm`

property is`true`

). An incremental model is warm after`fit`

or`updateMetricsAndFit`

fits the incremental model to`Mdl.MetricsWarmupPeriod`

observations, which is the*metrics warm-up period*.If

`Mdl.EstimationPeriod`

> 0, the`fit`

and`updateMetricsAndFit`

functions estimate hyperparameters before fitting the model to data. Therefore, the functions must process an additional`EstimationPeriod`

observations before the model starts the metrics warm-up period.The

`Mdl.Metrics`

property stores two forms of each performance metric as variables (columns) of a table,`Cumulative`

and`Window`

, with individual metrics in rows. When the incremental model is warm,`updateMetrics`

and`updateMetricsAndFit`

update the metrics at the following frequencies:`Cumulative`

— The functions compute cumulative metrics since the start of model performance tracking. The functions update metrics every time you call the functions and base the calculation on the entire supplied data set.`Window`

— The functions compute metrics based on all observations within a window determined by the`Mdl.MetricsWindowSize`

property.`Mdl.MetricsWindowSize`

also determines the frequency at which the software updates`Window`

metrics. For example, if`Mdl.MetricsWindowSize`

is 20, the functions compute metrics based on the last 20 observations in the supplied data (`X((end – 20 + 1):end,:)`

and`Y((end – 20 + 1):end)`

).Incremental functions that track performance metrics within a window use the following process:

Store a buffer of length

`Mdl.MetricsWindowSize`

for each specified metric, and store a buffer of observation weights.Populate elements of the metrics buffer with the model performance based on batches of incoming observations, and store corresponding observation weights in the weights buffer.

When the buffer is filled, overwrite

`Mdl.Metrics.Window`

with the weighted average performance in the metrics window. If the buffer is overfilled when the function processes a batch of observations, the latest incoming`Mdl.MetricsWindowSize`

observations enter the buffer, and the earliest observations are removed from the buffer. For example, suppose`Mdl.MetricsWindowSize`

is 20, the metrics buffer has 10 values from a previously processed batch, and 15 values are incoming. To compose the length 20 window, the function uses the measurements from the 15 incoming observations and the latest 5 measurements from the previous batch.

The software omits an observation with a

`NaN`

prediction (score for classification and response for regression) when computing the`Cumulative`

and`Window`

performance metric values.

### Observation Weights

For classification problems, if the prior class probability distribution is known (in other words, the prior distribution is not empirical), `updateMetricsAndFit`

normalizes observation weights to sum to the prior class probabilities in the respective classes. This action implies that observation weights are the respective prior class probabilities by default.

For regression problems or if the prior class probability distribution is empirical, the software normalizes the specified observation weights to sum to 1 each time you call `updateMetricsAndFit`

.

## References

[1] Bifet, Albert, Ricard Gavaldá, Geoffrey Holmes, and Bernhard Pfahringer. *Machine Learning for Data Streams with Practical Example in MOA*. Cambridge, MA: The MIT Press, 2007.

## Version History

**Introduced in R2022a**

## See Also

### Objects

### Functions

### Topics

- Incremental Learning Overview
- Configure Incremental Learning Model
- Implement Incremental Learning for Classification Using Succinct Workflow
- Initialize Incremental Learning Model from Logistic Regression Model Trained in Classification Learner
- Initialize Incremental Learning Model from SVM Regression Model Trained in Regression Learner

## MATLAB 명령

다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.

명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
