selectFeatures
Syntax
Description
returns indices of selected predictors for the number of important features specified by
idx
= selectFeatures(mdl
,NumFeatures=numfeatures
)numfeatures
.
returns indices of selected predictors with feature weights greater than or equal to the
threshold specified by idx
= selectFeatures(mdl
,MaxWeightFraction=maxweightfraction
)maxweightfraction
.
Examples
Generate data where the response variable depends on the 3rd, 9th, and 15th predictors.
rng(0,"twister"); % For reproducibility N = 100; X = rand(N,20); y = -ones(N,1); y(X(:,3).*X(:,9)./X(:,15) < 0.4) = 1;
Fit the NCA model for classification.
mdl = fscnca(X,y,Solver="sgd",Verbose=1);
o Tuning initial learning rate: NumTuningIterations = 20, TuningSubsetSize = 100 |===============================================| | TUNING | TUNING SUBSET | LEARNING | | ITER | FUN VALUE | RATE | |===============================================| | 1 | -3.755936e-01 | 2.000000e-01 | | 2 | -3.950971e-01 | 4.000000e-01 | | 3 | -4.311848e-01 | 8.000000e-01 | | 4 | -4.903195e-01 | 1.600000e+00 | | 5 | -5.630190e-01 | 3.200000e+00 | | 6 | -6.166993e-01 | 6.400000e+00 | | 7 | -6.255669e-01 | 1.280000e+01 | | 8 | -6.255669e-01 | 1.280000e+01 | | 9 | -6.255669e-01 | 1.280000e+01 | | 10 | -6.255669e-01 | 1.280000e+01 | | 11 | -6.255669e-01 | 1.280000e+01 | | 12 | -6.255669e-01 | 1.280000e+01 | | 13 | -6.255669e-01 | 1.280000e+01 | | 14 | -6.279210e-01 | 2.560000e+01 | | 15 | -6.279210e-01 | 2.560000e+01 | | 16 | -6.279210e-01 | 2.560000e+01 | | 17 | -6.279210e-01 | 2.560000e+01 | | 18 | -6.279210e-01 | 2.560000e+01 | | 19 | -6.279210e-01 | 2.560000e+01 | | 20 | -6.279210e-01 | 2.560000e+01 | o Solver = SGD, MiniBatchSize = 10, PassLimit = 5 |==========================================================================================| | PASS | ITER | AVG MINIBATCH | AVG MINIBATCH | NORM STEP | LEARNING | | | | FUN VALUE | NORM GRAD | | RATE | |==========================================================================================| | 0 | 9 | -5.658450e-01 | 4.492407e-02 | 9.290605e-01 | 2.560000e+01 | | 1 | 19 | -6.131382e-01 | 4.923625e-02 | 7.421541e-01 | 1.280000e+01 | | 2 | 29 | -6.225056e-01 | 3.738784e-02 | 3.277588e-01 | 8.533333e+00 | | 3 | 39 | -6.233366e-01 | 4.947901e-02 | 5.431133e-01 | 6.400000e+00 | | 4 | 49 | -6.238576e-01 | 3.445763e-02 | 2.946188e-01 | 5.120000e+00 | Two norm of the final step = 2.946e-01 Relative two norm of the final step = 6.588e-02, TolX = 1.000e-06 EXIT: Iteration or pass limit reached.

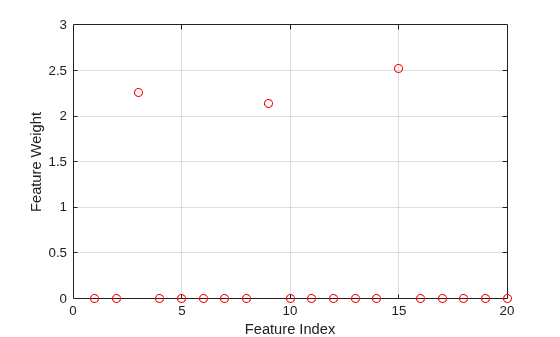

Plot the selected features. The weights of the irrelevant features are close to zero.
figure() plot(mdl.FeatureWeights,"ro") grid on xlabel("Feature Index") ylabel("Feature Weight")
Sort all predictors according to their feature weights.
idx = selectFeatures(mdl); mdl.PredictorNames(idx).'
ans = 20×1 cell
{'x15'}
{'x3' }
{'x9' }
{'x16'}
{'x10'}
{'x13'}
{'x2' }
{'x18'}
{'x17'}
{'x12'}
{'x14'}
{'x8' }
{'x4' }
{'x11'}
{'x19'}
{'x20'}
{'x6' }
{'x5' }
{'x7' }
{'x1' }
mdl.FeatureWeights(idx)
ans = 20×1
2.5197
2.2613
2.1424
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
⋮
Select five predictors with the largest feature weights.
idx = selectFeatures(mdl,NumFeatures=5); mdl.PredictorNames(idx).'
ans = 5×1 cell
{'x15'}
{'x3' }
{'x9' }
{'x16'}
{'x10'}
Select predictors with feature weights greater than or equal to the threshold defined by maxweightfraction
.
idx = selectFeatures(mdl,MaxWeightFraction=0.4); mdl.PredictorNames(idx).'
ans = 3×1 cell
{'x15'}
{'x3' }
{'x9' }
Generate data where the response variable depends on the 3rd, 9th, and 15th predictors.
rng(0,"twister"); % For reproducibility N = 100; X = rand(N,20); y = 1 + X(:,3)*5 + sin(X(:,9)./X(:,15) + 0.25*randn(N,1));
Fit the NCA model for regression.
mdl = fsrnca(X,y,Solver="lbfgs",Verbose=1,Lambda=0.5/N);
o Solver = LBFGS, HessianHistorySize = 15, LineSearchMethod = weakwolfe |====================================================================================================| | ITER | FUN VALUE | NORM GRAD | NORM STEP | CURV | GAMMA | ALPHA | ACCEPT | |====================================================================================================| | 0 | 1.636932e+00 | 3.688e-01 | 0.000e+00 | | 1.627e+00 | 0.000e+00 | YES | | 1 | 8.304833e-01 | 1.083e-01 | 2.449e+00 | OK | 9.194e+00 | 4.000e+00 | YES | | 2 | 7.548105e-01 | 1.341e-02 | 1.164e+00 | OK | 1.095e+01 | 1.000e+00 | YES | | 3 | 7.346997e-01 | 9.752e-03 | 6.383e-01 | OK | 2.979e+01 | 1.000e+00 | YES | | 4 | 7.053407e-01 | 1.605e-02 | 1.712e+00 | OK | 5.809e+01 | 1.000e+00 | YES | | 5 | 6.970502e-01 | 9.106e-03 | 8.818e-01 | OK | 6.223e+01 | 1.000e+00 | YES | | 6 | 6.952347e-01 | 5.522e-03 | 6.382e-01 | OK | 3.280e+01 | 1.000e+00 | YES | | 7 | 6.946302e-01 | 9.102e-04 | 1.952e-01 | OK | 3.380e+01 | 1.000e+00 | YES | | 8 | 6.945037e-01 | 6.557e-04 | 9.942e-02 | OK | 8.490e+01 | 1.000e+00 | YES | | 9 | 6.943908e-01 | 1.997e-04 | 1.756e-01 | OK | 1.124e+02 | 1.000e+00 | YES | | 10 | 6.943785e-01 | 3.478e-04 | 7.755e-02 | OK | 7.621e+01 | 1.000e+00 | YES | | 11 | 6.943728e-01 | 1.428e-04 | 3.416e-02 | OK | 3.649e+01 | 1.000e+00 | YES | | 12 | 6.943711e-01 | 1.128e-04 | 1.231e-02 | OK | 6.092e+01 | 1.000e+00 | YES | | 13 | 6.943688e-01 | 1.066e-04 | 2.326e-02 | OK | 9.319e+01 | 1.000e+00 | YES | | 14 | 6.943655e-01 | 9.324e-05 | 4.399e-02 | OK | 1.810e+02 | 1.000e+00 | YES | | 15 | 6.943603e-01 | 1.206e-04 | 8.823e-02 | OK | 4.609e+02 | 1.000e+00 | YES | | 16 | 6.943582e-01 | 1.701e-04 | 6.669e-02 | OK | 8.425e+01 | 5.000e-01 | YES | | 17 | 6.943552e-01 | 5.160e-05 | 6.473e-02 | OK | 8.832e+01 | 1.000e+00 | YES | | 18 | 6.943546e-01 | 2.477e-05 | 1.215e-02 | OK | 7.925e+01 | 1.000e+00 | YES | | 19 | 6.943546e-01 | 1.077e-05 | 6.086e-03 | OK | 1.378e+02 | 1.000e+00 | YES | |====================================================================================================| | ITER | FUN VALUE | NORM GRAD | NORM STEP | CURV | GAMMA | ALPHA | ACCEPT | |====================================================================================================| | 20 | 6.943545e-01 | 2.260e-05 | 4.071e-03 | OK | 5.856e+01 | 1.000e+00 | YES | | 21 | 6.943545e-01 | 4.250e-06 | 1.109e-03 | OK | 2.964e+01 | 1.000e+00 | YES | | 22 | 6.943545e-01 | 1.916e-06 | 8.356e-04 | OK | 8.649e+01 | 1.000e+00 | YES | | 23 | 6.943545e-01 | 1.083e-06 | 5.270e-04 | OK | 1.168e+02 | 1.000e+00 | YES | | 24 | 6.943545e-01 | 1.791e-06 | 2.673e-04 | OK | 4.016e+01 | 1.000e+00 | YES | | 25 | 6.943545e-01 | 2.596e-07 | 1.111e-04 | OK | 3.154e+01 | 1.000e+00 | YES | Infinity norm of the final gradient = 2.596e-07 Two norm of the final step = 1.111e-04, TolX = 1.000e-06 Relative infinity norm of the final gradient = 2.596e-07, TolFun = 1.000e-06 EXIT: Local minimum found.

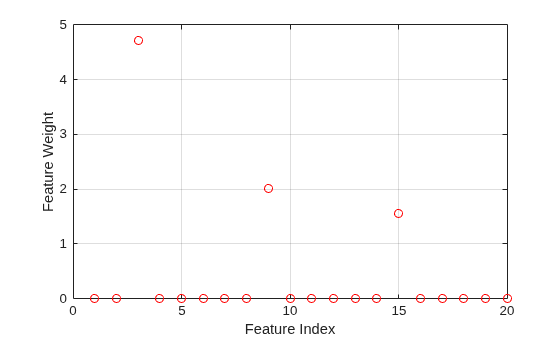

Plot the selected features. The weights of the irrelevant features are close to zero.
figure; plot(mdl.FeatureWeights,"ro"); grid on; xlabel("Feature Index"); ylabel("Feature Weight");
Sort all predictors according to their feature weights.
idx = selectFeatures(mdl); mdl.PredictorNames(idx).'
ans = 20×1 cell
{'x3' }
{'x9' }
{'x15'}
{'x8' }
{'x18'}
{'x17'}
{'x13'}
{'x6' }
{'x16'}
{'x5' }
{'x4' }
{'x20'}
{'x10'}
{'x1' }
{'x11'}
{'x2' }
{'x12'}
{'x19'}
{'x7' }
{'x14'}
mdl.FeatureWeights(idx)
ans = 20×1
4.7140
2.0046
1.5471
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
0.0000
⋮
Select five predictors with the largest feature weights.
idx = selectFeatures(mdl,NumFeatures=5); mdl.PredictorNames(idx).'
ans = 5×1 cell
{'x3' }
{'x9' }
{'x15'}
{'x8' }
{'x18'}
Select predictors with feature weights greater than or equal to the threshold defined by maxweightfraction
.
idx = selectFeatures(mdl,MaxWeightFraction=0.4); mdl.PredictorNames(idx).'
ans = 2×1 cell
{'x3'}
{'x9'}
Input Arguments
Neighborhood component analysis (NCA) model for classification or regression,
specified as a FeatureSelectionNCAClassification
object or a
FeatureSelectionNCARegression
object.
Number of important features, specified as a positive integer.
Example: 10
Data Types: double
Fraction for computing the threshold on the feature weights, specified as a real
value in the range [0,1]
. This value determines the threshold as
follows:
threshold = maxweightfraction*max(1,max(mdl.FeatureWeights))
selectFeatures
returns features with weights greater than or
equal to the threshold.
Example: 0.5
Data Types: double
Output Arguments
Indices of selected predictors, returned as a numeric vector.
Version History
Introduced in R2023b
