bestPoint

Best point in a Bayesian optimization according to a criterion

Syntax

x = bestPoint(results)

x = bestPoint(results,Name=Value)

[x,CriterionValue] = bestPoint(___)

[x,CriterionValue,iteration] = bestPoint(___)

Description

x = bestPoint(results) returns the best feasible point in the Bayesian model results according to the default criterion "min-visited-upper-confidence-interval".

x = bestPoint(results,Name=Value) modifies the best point using name-value arguments.

[x,CriterionValue] = bestPoint(___), for any previous syntax, also returns the value of the criterion at x.

[x,CriterionValue,iteration] = bestPoint(___) also returns the iteration number at which the best point was returned. This output argument applies only when the Criterion name-value argument is "min-observed", "min-visited-mean", or "min-visited-upper-confidence-interval" (the default).

Examples

Best Point of an Optimized KNN Classifier

This example shows how to obtain the best point of an optimized classifier.

Optimize a KNN classifier for the ionosphere data, meaning find parameters that minimize the cross-validation loss. Minimize over nearest-neighborhood sizes from 1 to 30, and over the distance functions 'chebychev', 'euclidean', and 'minkowski'.

For reproducibility, set the random seed, and set the AcquisitionFunctionName option to 'expected-improvement-plus'.

load ionosphere
rng(11)
num = optimizableVariable('n',[1,30],'Type','integer');
dst = optimizableVariable('dst',{'chebychev','euclidean','minkowski'},'Type','categorical');
c = cvpartition(351,'Kfold',5);
fun = @(x)kfoldLoss(fitcknn(X,Y,'CVPartition',c,'NumNeighbors',x.n,...
    'Distance',char(x.dst),'NSMethod','exhaustive'));
results = bayesopt(fun,[num,dst],'Verbose',0,...
    'AcquisitionFunctionName','expected-improvement-plus');

Obtain the best point according to the default 'min-visited-upper-confidence-interval' criterion.

x = bestPoint(results)

x=1×2 table
    n       dst
    _    _________

    1    chebychev

The lowest estimated cross-validation loss occurs for one nearest neighbor and 'chebychev' distance.

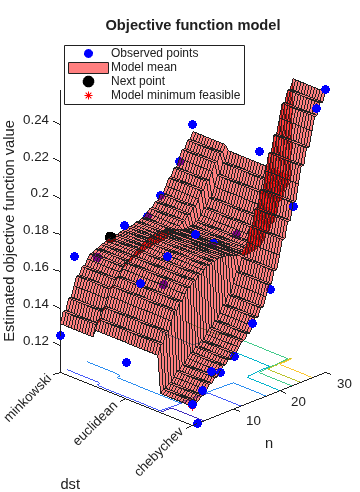

Careful examination of the objective function model plot shows a point with two nearest neighbors and 'chebychev' distance that has a lower objective function value. Find this point using a different criterion.

x = bestPoint(results,'Criterion','min-observed')

x=1×2 table
    n       dst
    _    _________

    2    chebychev

Also find the minimum observed objective function value, and the iteration number at which it was observed.

[x,CriterionValue,iteration] = bestPoint(results,'Criterion','min-observed')

x=1×2 table
    n       dst
    _    _________

    2    chebychev

CriterionValue =
0.1054

iteration =
21

Input Arguments

results — Bayesian optimization results

BayesianOptimization object | SupervisedLearningBayesianOptimization object

Bayesian optimization results, specified as a BayesianOptimization or SupervisedLearningBayesianOptimization object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: x = bestPoint(results,Criterion="min-observed")

Criterion — Best point criterion

"min-visited-upper-confidence-interval" (default) | "min-observed" | "min-mean" | "min-upper-confidence-interval" | "min-visited-mean"

Best point criterion, specified as a criterion name. The names are case-insensitive, do not require - characters, and require only enough characters to make the name uniquely distinguishable.

Criterion Name	Meaning
"min-observed"	x is the feasible point with minimum observed objective.
"min-mean"	x is the feasible point where the objective model mean is minimized.
"min-upper-confidence-interval"	x is the feasible point minimizing an upper confidence interval of the objective model. See Alpha.
"min-visited-mean"	x is the feasible point where the objective model mean is minimized among the visited points.
"min-visited-upper-confidence-interval"	x is the feasible point minimizing an upper confidence interval of the objective model among the visited points. See Alpha.

Example: Criterion="min-visited-mean"

Data Types: char | string

Alpha — Probability that modeled objective mean exceeds CriterionValue

0.01 (default) | scalar between 0 and 1

Probability that the modeled objective mean exceeds CriterionValue, specified as a scalar between 0 and 1. Alpha relates to the "min-upper-confidence-interval" and "min-visited-upper-confidence-interval" Criterion values. The definition for the upper confidence interval is the value Y where

P(mean_Q(fun(x)) > Y) = alpha,

where fun is the objective function, and the mean is calculated with respect to the posterior distribution Q.

Example: Alpha=0.05

Data Types: double

Output Arguments

x — Best point

1-by-D table

Best point, returned as a 1-by-D table, where D is the number of variables. The meaning of “best” is with respect to Criterion.

CriterionValue — Value of criterion

real scalar

Value of criterion, returned as a real scalar. The value depends on the setting of the Criterion name-value argument, which has a default value of "min-visited-upper-confidence-interval".

Criterion Name	Meaning
"min-observed"	Minimum observed objective.
"min-mean"	Minimum of model mean.
"min-upper-confidence-interval"	Value Y satisfying the equation P(meanQ(fun(x)) > Y) = alpha.
"min-visited-mean"	Minimum of observed model mean.
"min-visited-upper-confidence-interval"	Value Y satisfying the equation P(meanQ(fun(x)) > Y) = alpha among observed points.

iteration — Iteration number at which best point was observed

positive integer

Iteration number at which best point was observed, returned as a positive integer. The best point is defined by CriterionValue.

Version History

Introduced in R2016b

R2026a: SupervisedLearningBayesianOptimization objects are supported

You can specify results as a SupervisedLearningBayesianOptimization object.
