Programmatically Repair Broken Links
In this step, you use the Requirements Toolbox™ programmatic interface to repair broken links when the specified ID of the link sources no longer exists.
Examine Broken Links

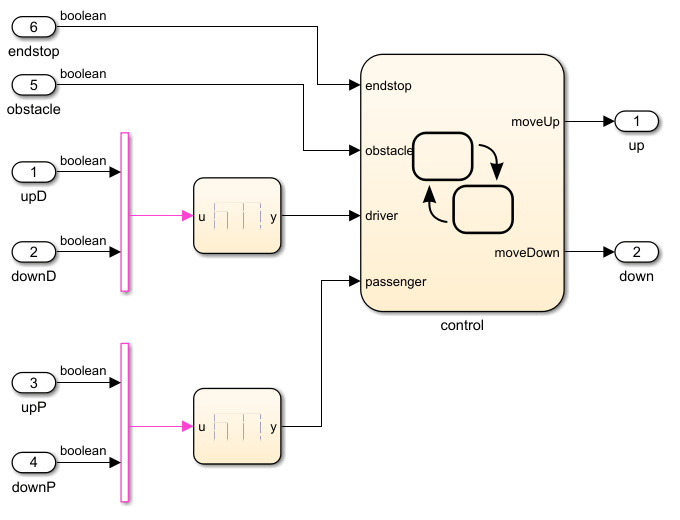

slvnvdemo_powerwindowController_stateflow model, which also loads its associated link set.
model = "slvnvdemo_powerwindowController_stateflow"; open_system(model)
The model is similar to the
slvnvdemo_powerwindowController model, but it implements the
Truth Table and
Truth Table1 blocks by using Stateflow charts that have logic.
Open the Requirements Editor.

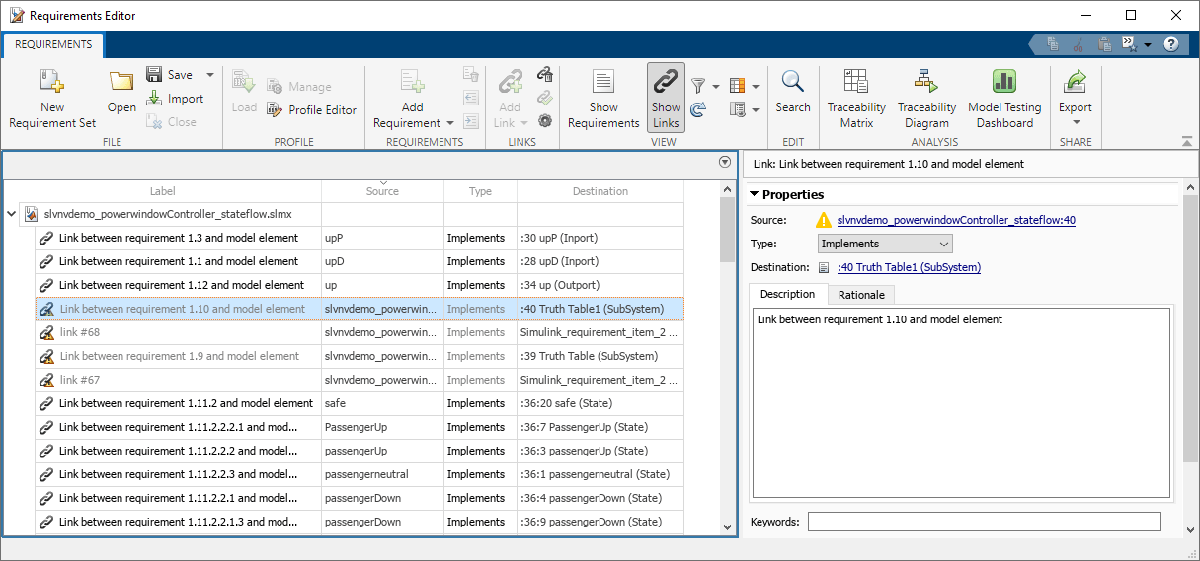

Click Show Links to view the links. Because the Truth Table blocks are missing, the four links in the link set that point to those blocks are broken.
Repair Broken Links
Get a handle to the
slvnvdemo_powerwindowController_stateflow link set. Assign the links from the link set to an array.
ls = slreq.find(Type="LinkSet"); linksArray = getLinks(ls);
Check if the link source is resolved for each link in the link set by creating an array that contains the broken links. If the link source is unresolved, add it to the
j = 1; for i = 1:numel(linksArray) link = linksArray(i); if ~link.isResolvedSource brokenLinks(j) = link; j = j+1; end end
oldModel = "slvnvdemo_powerwindowController"; open_system(oldModel)
For each broken link, use the link source ID to get the model element name from the
repairedLinks = 0; for i = 1:numel(brokenLinks) link = brokenLinks(i); elementSID = link.source.id; elementHandle = Simulink.ID.getHandle(strcat(oldModel,elementSID)); elementPath = getfullname(elementHandle); elementName = strrep(convertCharsToStrings(elementPath),oldModel+"/","");
slvnvdemo_powerwindowController_stateflow model, the
Truth Table block was replaced with the Stateflow chart
Chart, while the
Truth Table1 block was replaced with the Stateflow chart
setSource to change the source to the corresponding Stateflow chart.
switch elementName case "Truth Table" newPath = model+"/Chart"; case "Truth Table1" newPath = model+"/Chart1"; end newHandle = getSimulinkBlockHandle(newPath); setSource(link,newHandle); repairedLinks = repairedLinks + 1; end
Display the number of repaired links.
disp("Fixed "+num2str(repairedLinks)+" links in "+model+".slmx");
Fixed 4 links in slvnvdemo_powerwindowController_stateflow.slmx
