sltrace.Graph
Description
An sltrace.Graph
object stores information about a signal path
traced using the sltrace
function. Use the signal tracing programmatic interface to programmatically analyze the
structure of a model by tracing a signal to one or more source or destination blocks. You can
also use the signal tracing programmatic interface to build your own custom tracing
tool.
You can use an sltrace.Graph
object to:
Highlight the signal path in the model.
Highlight any block in the model, including blocks that are not on the signal path.
Create a directed graph plot of the signal path.
Creation
Create an sltrace.Graph
object by tracing a signal path using the
sltrace
function.
Properties
SrcBlocks
— Source blocks on tracing path
array of block handles | array of Simulink.BlockPath
objects
Source blocks on tracing path, returned as an array of block handles or an array of
Simulink.BlockPath
objects.
When you do not specify the
BlockPath
name-value argument for thesltrace
function or when you specify theBlockPath
argument as'off'
, the blocks are represented as block handles.When you specify the
BlockPath
name-value argument for thesltrace
function as'on'
, the blocks are represented asSimulink.BlockPath
objects.
The SrcBlocks
property has a value only for paths that trace a
signal to one or more source blocks. When the sltrace.Graph
object
represents a signal path to destination blocks, the SrcBlocks
property is empty.
DstBlocks
— Destination blocks on tracing path
array of block handles | array of Simulink.BlockPath
objects
Destination blocks on tracing path, returned as an array of block handles or an
array of Simulink.BlockPath
objects.
When you do not specify the
BlockPath
name-value argument for thesltrace
function or when you specify theBlockPath
argument as'off'
, the blocks are represented as block handles.When you specify the
BlockPath
name-value argument for thesltrace
function as'on'
, the blocks are represented asSimulink.BlockPath
objects.
The DstBlocks
property has a value only for paths that trace a
signal to one or more destination blocks. When the sltrace.Graph
object
represents a signal path to source blocks, the DstBlocks
property is
empty.
TraceGraph
— Directed graph representation of signal path
digraph
object
Directed graph representation of signal path, returned as a digraph
object. The directed graph consists of nodes and edges. Each node in
the graph represents a block port. Each edge in the graph represents a connection
between two block ports, such as a signal line in the model.
The digraph
object has the properties Nodes
and
Edges
, which contain details about each edge and node in the graph
as a table.
For each node, the table includes information about how the node relates to the block diagram, including:
Whether the node represents an input port or output port for the block
Block identification
By default, the block identification is the numeric block handle. When you specify the
BlockPath
name-value argument for thesltrace
function ason
, the block identification is aSimulink.BlockPath
object.
For each edge, the table includes information about the connection, including a
Segments
column that indicates the type of connection.
Empty — The segment connects two different blocks.
'Internal'
— The segment connects two ports on the same block.'Hidden'
— The segment connects two blocks but has no corresponding signal line in the model. For example, the connection between a From block and a Goto block has this value in theSegments
column.
Object Functions
highlight | Highlight path to signal sources or destinations in model |
removeHighlight | Remove highlighting for sltrace.Graph object from
model |
Examples
Trace All Sources for Signal
The model for this example implements the second-order differential Van der Pol (vdp) equation.
,
where represents damping in the system.
Open the model vdp
. In the model, the signal x1
represents the first derivative of . The signal x2
represents the second derivative of .
mdl = "vdp";
open_system(mdl)
Use the sltrace
function to trace all source blocks for the signal x2
, which is the input signal for the Integrator block named x1
.
x2Sources = sltrace((mdl + "/x1"),"Source",Port=1,TraceAll="on");
When you trace all sources for a signal, the sltrace.Graph
object that the sltrace
function returns contains information about more than just the blocks that produce the input signals for the specified block. The sltrace.Graph
object contains information for all blocks that produce output values that affect the value of the signal you trace.
length(x2Sources.SrcBlocks)
ans = 10
To see the signal path in the block diagram, use the highlight
function to highlight all the source blocks in the sltrace.Graph
object x2Sources
. The source blocks in the sltrace.Graph
object and the signals that connect them are highlighted yellow in the block diagram. Highlighting the blocks also shades the canvas a darker gray to make the highlighting more visible.
highlight(x2Sources)
The sltrace.Graph
object includes a digraph
object you can use to analyze the connections among the source blocks. Each node in the graph represents a block port, and each edge, or line, represents a signal line.

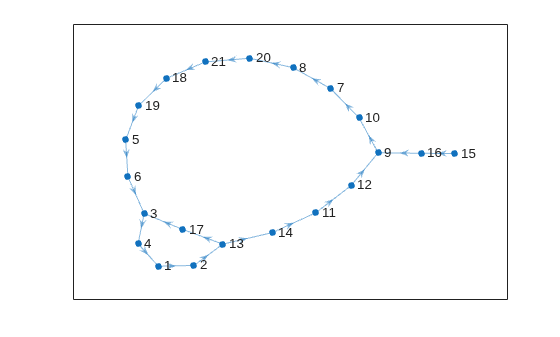

plot(x2Sources.TraceGraph)
Once you have an sltrace.Graph
object, you can use the highlight
function to highlight any block or signal line in the model, including blocks and signal lines that are not part of the signal trace information in the sltrace.Graph
object. For example, highlight the Scope block and the signal lines connected to the input ports on the Scope block.
Use the get_param
function to get the block handle for the Scope block.
scopePath = mdl + "/Scope"; scopeHandle = get_param(scopePath,"Handle");
Use the get_param
function to get the port handles for the Scope block.
scopePorts = get_param(scopePath,"PortHandles");
Use the get_param
function to get the line handle for the signal line connected to each input port of the Scope block.
scopeIn1 = scopePorts.Inport(1); scopeIn1 = get_param(scopeIn1,"Line"); scopeIn2 = scopePorts.Inport(2); scopeIn2 = get_param(scopeIn2,"Line");
Use the highlight function to highlight the elements in the block diagram. The Scope block and the input signals for the Scope block are highlighted red in the block diagram, which still shows the yellow highlighting on the sources for the signal x2
.
highlight(x2Sources,[scopeHandle scopeIn1 scopeIn2])
To remove the highlighting, use the removeHighlight
function. The function removes all highlighting in the block diagram associated with the sltrace.Graph
object. When the block diagram contains no highlighting, the shading in the canvas is also removed.

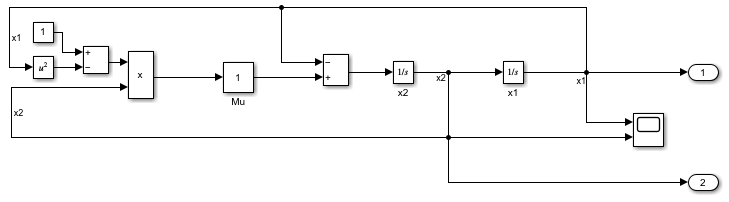

removeHighlight(x2Sources)
Version History
Introduced in R2021b
