병진 마찰이 있는 기계 시스템

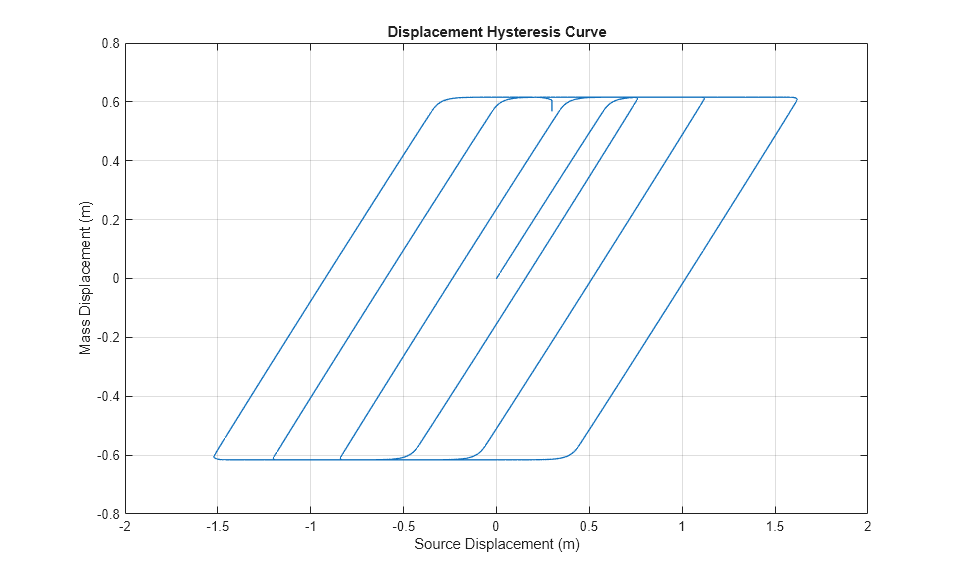

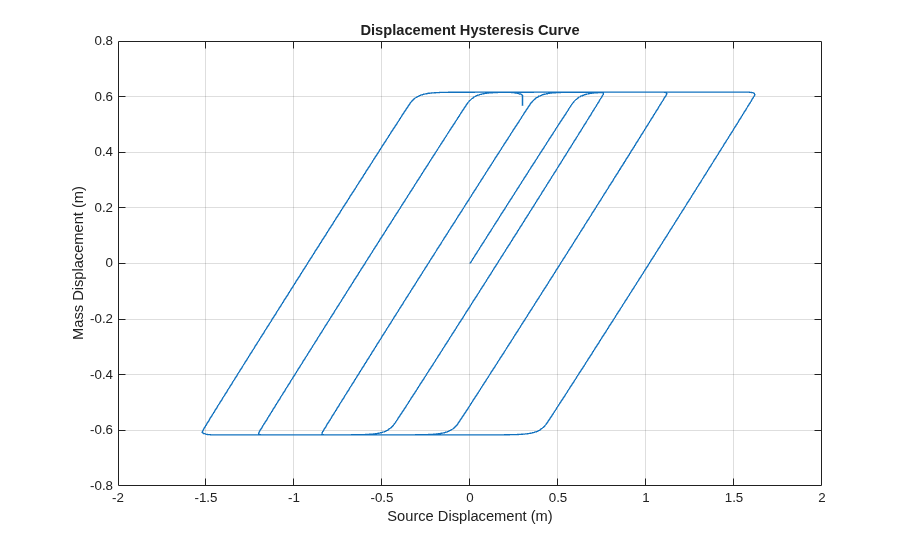

이 예제는 스프링과 점성 댐퍼에 연결된 질량을 보여줍니다. 이 질량은 마찰 요소를 통해 이상적인 속도 소스로 구동됩니다. 소스의 동작 프로파일은 소스가 제공한 변위에 대해 질량 변위를 플로팅하면 전형적인 히스테리시스 곡선을 생성하는 방식으로 선택됩니다.
모델

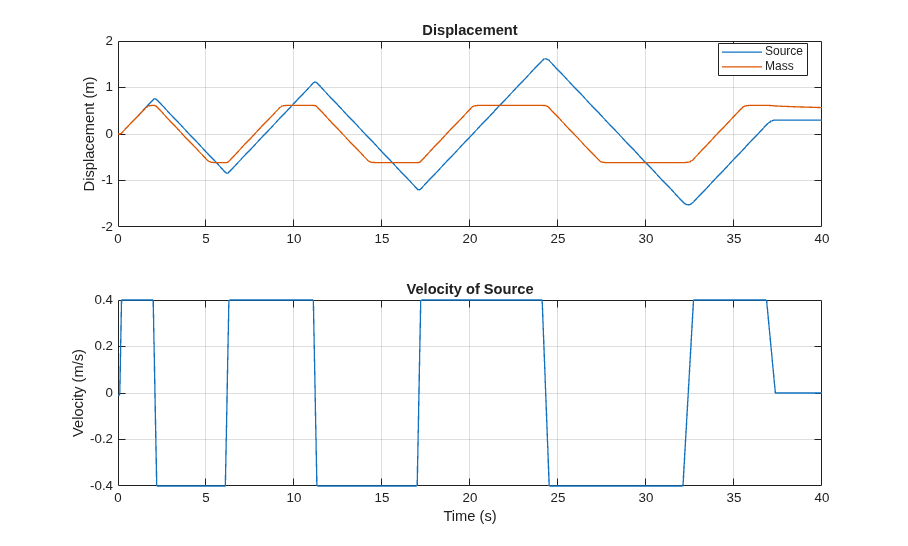

Simscape 기록의 시뮬레이션 결과
