스틱-슬립 운동이 있는 회전 기계 시스템
이 모델은 스틱-슬립 마찰이 있는 회전 기계 시스템을 보여줍니다. 스프링과 댐퍼에 의해 고정점에 관성이 연결됩니다. 이 관성은 스틱-슬립 마찰 요소를 통해 속도 소스로 구동됩니다. 이러한 마찰 요소는 이탈 마찰과 쿨롱 마찰 간의 차이를 가지며, 그 결과 관성의 스틱-슬립 운동이 발생하게 됩니다.
모델

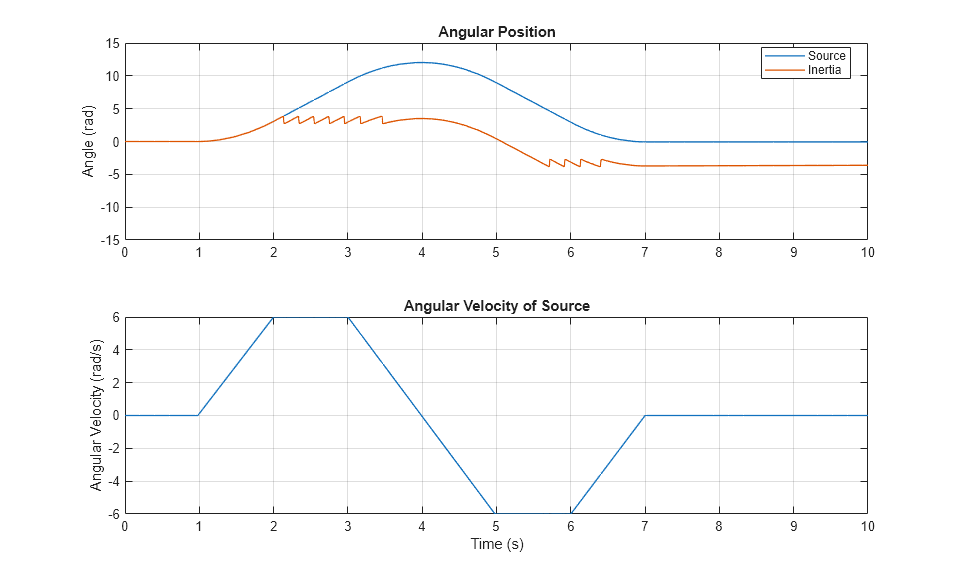

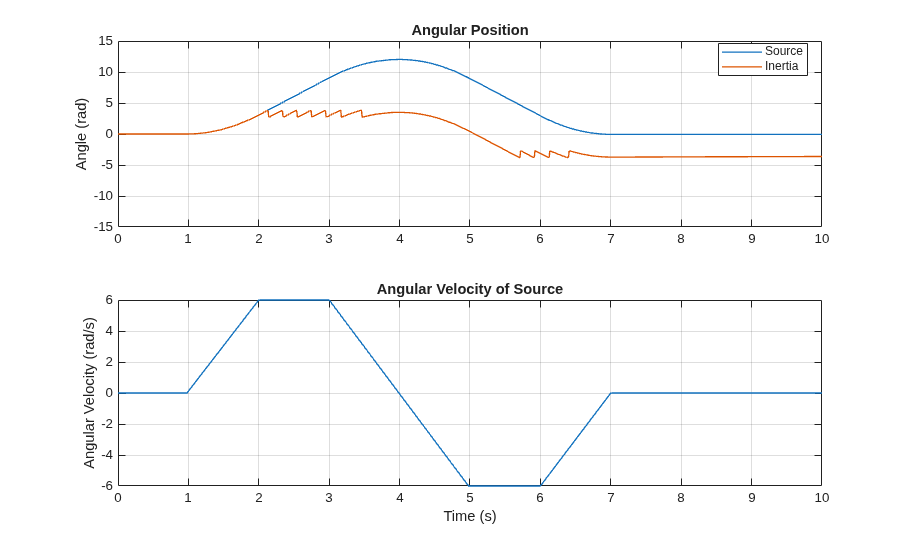

Simscape 기록의 시뮬레이션 결과
MATLAB 명령
다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.
명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.
