Prediction Polynomial

This example shows how to obtain the prediction polynomial from an autocorrelation sequence. The example also shows that the resulting prediction polynomial has an inverse that produces a stable all-pole filter. You can use the all-pole filter to filter a wide-sense stationary white noise sequence to produce a wide-sense stationary autoregressive process.

Create an autocorrelation sequence defined by

r(k)=2452-|k|-27103-|k|,k=0,1,2.

k = 0:2;
rk = (24/5)*2.^(-k)-(27/10)*3.^(-k);

Use ac2poly to obtain the prediction polynomial of order 2, which is

A(z)=1-56z-1+16z-2.

A = ac2poly(rk);

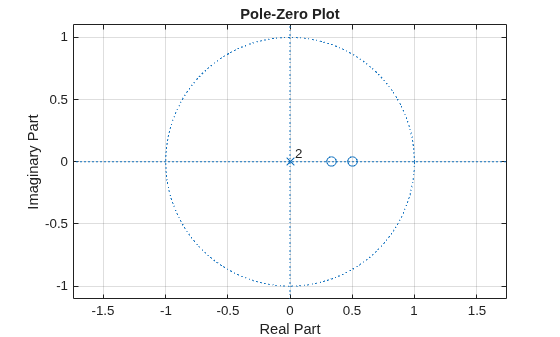

Examine the pole-zero plot of the FIR filter to see that the zeros are inside the unit circle.

zplane(A,1)
grid

Figure contains an axes object. The axes object contains 4 objects of type line, text.

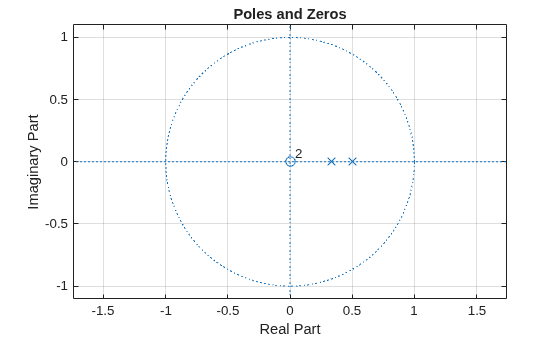

The inverse all-pole filter is stable with poles inside the unit circle.

zplane(1,A)
grid
title('Poles and Zeros')

Figure contains an axes object. The axes object with title Poles and Zeros contains 4 objects of type line, text.

Use the all-pole filter to produce a realization of a wide-sense stationary AR(2) process from a white-noise sequence. Set the random number generator to the default settings for reproducible results.

rng default

x = randn(1000,1);
y = filter(1,A,x);

Compute the sample autocorrelation of the AR(2) realization and show that the sample autocorrelation is close to the true autocorrelation.

[xc,lags] = xcorr(y,2,'biased');
[xc(3:end) rk']
ans = 3×2

    2.2401    2.1000
    1.6419    1.5000
    0.9980    0.9000
