mag2db
크기를 데시벨로 변환
설명
예제

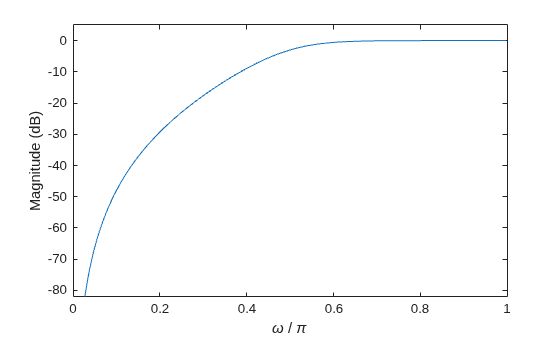

고역통과 필터의 크기 응답
rad/sample의 정규화된 3dB 주파수를 갖는 3차 고역통과 버터워스 필터를 설계합니다. 필터의 주파수 응답을 계산합니다. 크기 응답을 데시벨 단위로 표현하고 플로팅합니다.
[b,a] = butter(3,0.5,'high'); [h,w] = freqz(b,a); dB = mag2db(abs(h)); plot(w/pi,dB) xlabel('\omega / \pi') ylabel('Magnitude (dB)') ylim([-82 5])
fvtool
을 사용하여 계산을 반복합니다.
fvtool(b,a)
입력 인수
y
— 입력 배열
스칼라 | 벡터 | 행렬 | N차원 배열
입력 배열로, 스칼라, 벡터, 행렬 또는 N차원 배열로 지정됩니다. y
가 비 스칼라이면 mag2db
는 요소별 연산을 하게 됩니다.
데이터형: single
| double
출력 인수
버전 내역
R2008a에 개발됨
