Section reporter


Create a section reporter that adds a section to the report. This class inherits from


section = Section() creates a reporter that generates a report section. You can add the section reporter to a report, chapter, or another section. If you add a section to a report, the section starts on a new, portrait page with default margins and a page number in the footer. The page number equals the previous page number plus one. If you add the section to a chapter or another section, the reporter creates a subsection that continues on the current page. The size of the title diminishes by default with the depth of the section in the report hierarchy up to five levels deep. Titles of sections lower than 5 are not numbered and have the same font size as level 5.

section = Section(title) creates a report section containing a section title with the specified title text. A hierarchical section number prefixes the title text by default. For example, the default number of the first subsection in the second chapter is 2.1. The font size of the title diminishes by default with the depth of the section in the report hierarchy up to five levels deep.

section = Section(Name,Value) sets properties using name-value pairs. You can specify multiple name-value pair arguments in any order. Enclose each property name in single quotes.

Input Arguments

expand all

See Title property.


expand all

Section title, specified as one of these values:

  • String or character array

  • DOM object

  • 1-by-N or N-by-1 array of strings or DOM objects

  • 1-by-N or N-by-1 cell array of strings, character arrays, and/or DOM objects

  • SectionTitle reporter

Inline objects are objects that a paragraph can contain. If the title value is an inline object, the section object uses one template from a set of templates. Templates are stored in the template library for the section. The template used to create the title depends on whether the title is numbered and the section level in the section hierarchy. Use the Numbered property to specify whether the section title is numbered.

If the title value is a DOM paragraph or other DOM block object, the section inserts the object at the beginning of the section. If you use a DOM block object, you can use block elements to customize the spacing, alignment, and other properties of the section title. In this case, you must fully specify the title format and provide title numbering yourself.

Choice to number this section, specified as a logical. If the value of this property is [] or true, the section is numbered relative to other sections in the report. The section number appears in the section title. If the value is false, this section is not numbered. The value of this Numbered property overrides the numbering specified for all report sections by the method.

Content of the section, specified as one of these values:

  • String or character array

  • DOM objects that can be added to a DOM document part

  • Reporters, including Section reporters

  • 1xN or Nx1 array of strings or character arrays

  • 1xN or Nx1 cell array of strings, character arrays, and/or DOM objects

Use the Section constructor or add method to set this property. You cannot set it directly.

Source of the template for this reporter, specified in one of these ways:

  • Character vector or string scalar that specifies the path of the file that contains the template for this reporter

  • Reporter or report whose template is used for this reporter or whose template library contains the template for this reporter

  • DOM document or document part whose template is used for this reporter or whose template library contains the template for this reporter

The specified template must be the same type as the report to which this reporter is appended. For example, for a Microsoft® Word report, TemplateSrc must be a Word reporter template. If the TemplateSrc property is empty, this reporter uses the default reporter template for the output type of the report.

Name of the template for this reporter, specified as a character vector or string scalar. The template for this reporter is in the template library of the template source (TemplateSrc) for this reporter.

Hyperlink target for this reporter, specified as a string or character array that specifies the link target ID, or an mlreportgen.dom.LinkTarget object. A string or character array value is converted to a LinkTarget object. The link target object immediately precedes the content of this reporter in the output report.


add Add section content
createTemplateCreate section template
customizeReporter Create custom section reporter class
getClassFolderSection class definition file location
getTitleReporter Get section title reporter
numberSet section numbering

Inherited Methods

customizeReporterCreate class derived from Reporter class
getImpl Get implementation of reporter

Copy Semantics

Handle. To learn how handle classes affect copy operations, see Copying Objects (MATLAB).

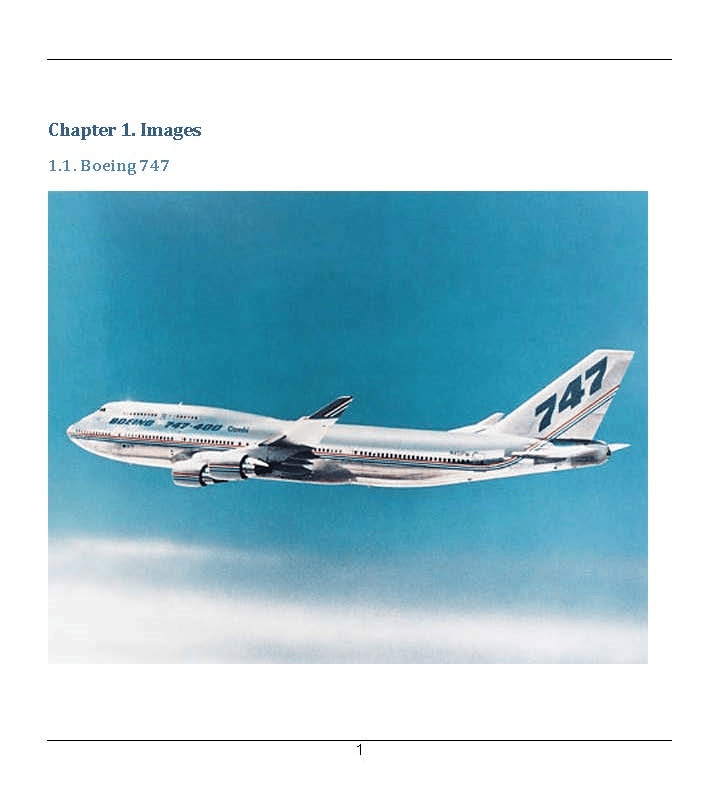

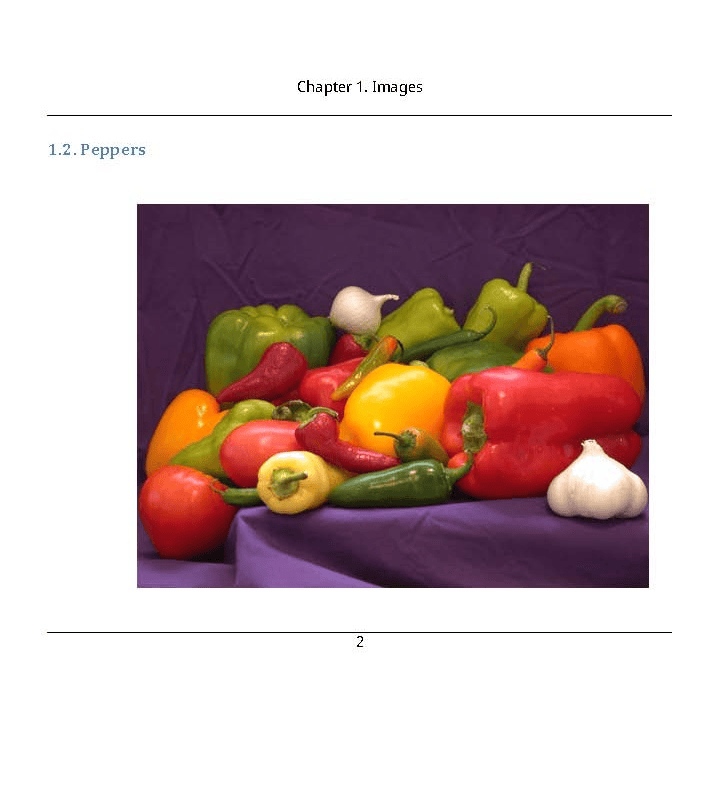

Add Title and Image to a Report Section

This example shows how to add a title and an image to two sections and add each of those sections to a chapter. The section is instantiated and its content is specified within the add method.

import mlreportgen.dom.*

rpt = Report('My Report','pdf');
add(rpt,TitlePage('Title','My Report'));

ch = Chapter('Images');
add(ch,Section('Title','Boeing 747', ...
    'Content', Image(which('b747.jpg'))));
add(ch, Section('Title','Peppers', ...


Use DOM Text Object as a Section Title

This example uses a DOM Text object to define the title. By using the DOM object, you can set its properties and override the default black color of the section title.

import mlreportgen.dom.*

rpt = Report('New Report','pdf');
sect = Section;
sect.Title = Text('A Section');
sect.Title.Color = 'blue';


Change Alignment of a Section

This example generates a report that sets the subsection titles to center alignment.

import mlreportgen.dom.*

rpt = Report('My Report','html');
add(rpt,TitlePage('Title','My Report'));
chTitle = Heading1('Chapter ');
chTitle.Style = {CounterInc('sect1'),...
     Bold, FontSize('24pt')};
append(chTitle,'. ');

sectTitle = Heading2();
sectTitle.Style = {CounterInc('sect2'),...
     WhiteSpace('preserve') ...
append(sectTitle,'. ');
title = clone(chTitle);
ch = Chapter('Title',title);
title = clone(sectTitle());
append(title,'Boeing 747');
title = clone(sectTitle());


Introduced in R2017b
