Resonators

Ring resonator, square resonator

Microwave resonators are used in a variety of applications, including filters, oscillators, frequency meters, and tuned amplifiers. Resonant structures such as rectangular, circular, and ring resonators are widely used in oscillators and filters.

Objects

resonatorRingCreate gap-coupled ring resonator in microstrip form

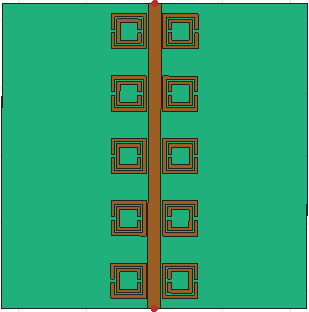

resonatorSplitRingSquareCreate microstrip line loaded with square split-ring resonator

Functions

showDisplay PCB component structure or PCB shape
infoDisplay information about PCB component structure
designCoupledLineCalculate dimensions of coupled-line section for specified frequency
designUncoupledLineCalculate dimensions of uncoupled-line section for specified frequency
designOutputLineCalculate dimensions of output line section for specified frequency
shapesExtract all metal layer shapes of PCB component
