gerberRead

Create PCBReader object with specified Gerber files and drill files

Since R2021b

Syntax

P = gerberRead(T)

P = gerberRead([],B)

P = gerberRead(T,B)

P = gerberRead(T,B,D)

Description

P = gerberRead(T) creates a PCBReader object with the top layer Gerber file specified in T.

Note

The PCBReader object reads RS-274X Gerber files. It does not support RS-274D Gerber files.

P = gerberRead([],B) creates a PCBReader object with the bottom layer Gerber file specified in B.

P = gerberRead(T,B) creates a PCBReader object with the specified top and bottom layer Gerber file names.

P = gerberRead(T,B,D) creates a PCBReader object with the specified top and bottom layer Gerber files and the drill file specified in D .

Examples

Import and View Top Layer Gerber File

Use the gerberRead function to import a top layer Gerber file.

P = gerberRead('interdigital_Capacitor.gtl');

Extract the metal layer from the file using the shapes function.

s = shapes(P);

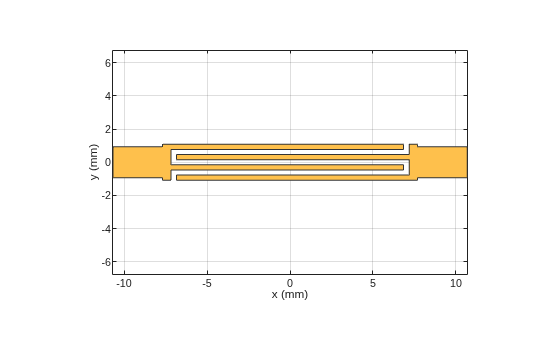

View the top metal layer.

show(s)

Input Arguments

T — Top layer Gerber file

string scalar | character vector

Top layer Gerber file, specified as a character vector or string scalar. The file must be saved as a GTL file.

Example: gerberRead('Filetop.gtl');

B — Bottom layer Gerber file

string scalar | character vector

Bottom layer Gerber file, specified as a character vector or string scalar. The file must be saved as a GBL file.

Example: gerberRead([],'FileBottom.gbl');

D — Drill file

string scalar | character vector

Drill file, specified a character vector or string scalar. You can specify either a DRL or a TXT file.

Example: gerberRead('Filetop.gtl','FileBottom.gbl','FileDrill.txt');

Output Arguments

P — Files read

PCBReader object

Gerber and drill files read, returned as a PCBReader object.

Limitations

Limitations of the gerberRead function while reading a gtl or gbl file are:

Command	Description	Comments
AM	Aperture Macro	Not supported
AB	Aperture Block	Not supported
SR	Step and Repeat	Not supported
TF	File Attributes	Command is ignored and no error is thrown
TA	Aperture Attributes	Command is ignored and no error is thrown
TO	Object Attributes	Command is ignored and no error is thrown
TD	Delete Attributes	Command is ignored and no error is thrown

Cut-ins are not supported.

Version History

Introduced in R2021b
