Calculate directivity of coupler
Since R2022a
directivity(coupler,frequency)
d = directivity(coupler,frequency)
directivity(coupler,frequency) calculates and plots the directivity of a coupler over the specified frequency values.
coupler
frequency
example
d = directivity(coupler,frequency) returns the directivity of a coupler over the specified frequency.
d
collapse all
Create a branchline coupler with default values.
coupler = couplerBranchline
coupler = couplerBranchline with properties: PortLineLength: 0.0186 PortLineWidth: 0.0051 SeriesArmLength: 0.0184 SeriesArmWidth: 0.0083 ShuntArmLength: 0.0186 ShuntArmWidth: 0.0051 Height: 0.0016 GroundPlaneWidth: 0.0600 Substrate: [1×1 dielectric] Conductor: [1×1 metal] IsShielded: 0
Calculate the directivity of the coupler at 2 GHz.

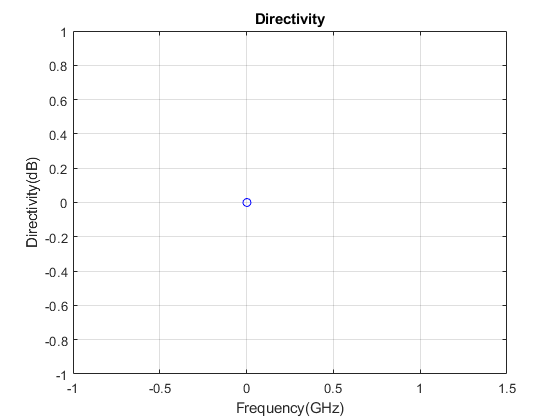

directivity(coupler,2e6)
Create a rat-race coupler with default values.
coupler = couplerRatrace;
Calculate the directivity of the coupler at 3 GHz.
c = directivity(coupler,3e6)
c = -1.5211e-05
Coupler, specified as a coupler object. For a complete list of couplers, see Splitters and Couplers.
Frequency to calculate the directivity, specified as an integer in Hz or as a vector with each element specified in Hz.
Introduced in R2022a
coupling | isolation
coupling
isolation
