radarScenario
Description
radarScenario creates a radar scenario object. A radar
scenario simulates a 3-D environment containing multiple platforms. Platforms represent
objects that you want to simulate, such as aircraft, ground vehicles, or ships. Some platforms
carry sensors, such as radar, sonar, or infrared. Other platforms act as the source of signals
or reflector of signals.
Populate a radar scenario by calling the platform function
for each platform you want to add. You can model platforms as points or cuboids by specifying
the 'Dimension' property when calling the platform
function. Platforms have signatures with properties that are specific to the type of sensor,
such as radar cross-section for radar sensors. You can create trajectories for any platform
using the kinematicTrajectory,
waypointTrajectory,
or geoTrajectory
System object™.
After you add all desired platforms, you can simulate the scenario in incremental time
steps by using the advance function
in a loop. You can run the simulation all at once using the record
function.
Creation
Syntax
Description
scene = radarScenarioscene with default property values. You can specify platform
trajectories in the scenario as Cartesian states using the kinematicTrajectory or waypointTrajectory
System object.
scene = radarScenario('IsEarthCentered',true)true. You can specify platform trajectories in the scenario as
geodetic states using the geoTrajectory
System object.
scene = radarScenario(Name,Value)radarScenario object using one or more name-value arguments.
Name is a property name and Value is the
corresponding value. You can specify several name-value arguments in any order. Any
unspecified properties take default values.
Properties
Object Functions
platform | Add platform to radar scenario |
landSurface | Add land surface to radar scenario |
seaSurface | Add sea surface to radar scenario |
customSurface | Add custom surface with complex scattering to a radar scenario |
advance | Advance radar scenario simulation by one time step |
atmosphere | Add atmosphere model object to radar scenario |
restart | Restart simulation of radar scenario |
record | Record simulation of radar scenario |
emit | Collect emissions from all emitters in radar scenario |
propagate | Propagate emissions in radar scenario |
detect | Collect detections from all sensors in radar scenario |
receive | Receive IQ signal from radars in the scenario |
clutterGenerator | Add clutter generator for radar |
platformProfiles | Profiles of radar scenario platforms |
platformPoses | Position information for each platform in radar scenario |
coverageConfig | Sensor and emitter coverage configuration |
perturb | Apply perturbations to radar scenario |
clone | Create copy of radar scenario |
Examples
Create a radar scenario with two platforms that follow different trajectories.
sc = radarScenario('UpdateRate',100,'StopTime',1.2);
Create two platforms.
platfm1 = platform(sc); platfm2 = platform(sc);
Platform 1 follows a circular path of radius 10 m for one second. This is accomplished by placing waypoints in a circular shape, ensuring that the first and last waypoint are the same.
wpts1 = [0 10 0; 10 0 0; 0 -10 0; -10 0 0; 0 10 0]; time1 = [0; 0.25; .5; .75; 1.0]; platfm1.Trajectory = waypointTrajectory(wpts1,time1);
Platform 2 follows a straight path for one second.
wpts2 = [-8 -8 0; 10 10 0]; time2 = [0; 1.0]; platfm2.Trajectory = waypointTrajectory(wpts2,time2);
Verify the number of platforms in the scenario.
disp(sc.Platforms)
{1×1 radar.scenario.Platform} {1×1 radar.scenario.Platform}

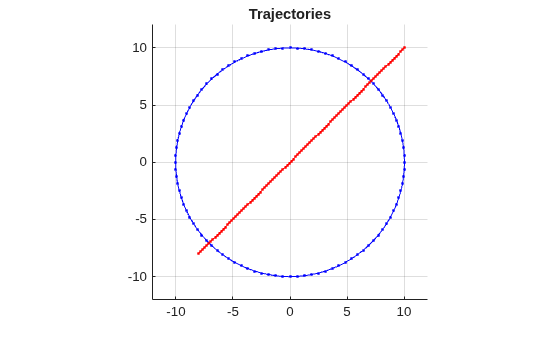

Run the simulation and plot the current position of each platform using an animated line.
figure grid axis equal axis([-12 12 -12 12]) line1 = animatedline('DisplayName','Trajectory 1','Color','b','Marker','.'); line2 = animatedline('DisplayName','Trajectory 2','Color','r','Marker','.'); title('Trajectories') p1 = pose(platfm1); p2 = pose(platfm2); addpoints(line1,p1.Position(1),p1.Position(2)); addpoints(line2,p2.Position(2),p2.Position(2)); while advance(sc) p1 = pose(platfm1); p2 = pose(platfm2); addpoints(line1,p1.Position(1),p1.Position(2)); addpoints(line2,p2.Position(2),p2.Position(2)); pause(0.1) end

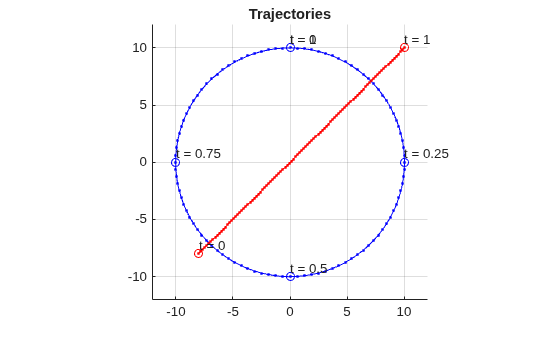

Plot the waypoints for both platforms.
hold on plot(wpts1(:,1),wpts1(:,2),' ob') text(wpts1(:,1),wpts1(:,2),"t = " + string(time1),'HorizontalAlignment','left','VerticalAlignment','bottom') plot(wpts2(:,1),wpts2(:,2),' or') text(wpts2(:,1),wpts2(:,2),"t = " + string(time2),'HorizontalAlignment','left','VerticalAlignment','bottom') hold off
Create an Earth-centered radar scenario and specify the update rate.
scene = radarScenario('IsEarthCentered',true,'UpdateRate',0.01);
Add a platform to the scenario that represents an airplane. The trajectory of the airplane changes in longitude and altitude. Specify the trajectory using geodetic coordinates.
geoTraj = geoTrajectory([42.300,-71.351,10600;42.300,-124.411,0],[0 21600]);
plane = platform(scene,'Trajectory',geoTraj);Advance the radar scenario and record the geodetic and Cartesian positions of the plane target.
positions = []; while advance(scene) poseLLA = pose(plane,'CoordinateSystem','Geodetic'); poseXYZ = pose(plane,'CoordinateSystem','Cartesian'); positions = [positions;poseXYZ.Position];%#ok<AGROW> Allow the buffer to grow. end
Convert the distance units from meters to kilometers.
km = 1000; positions = positions/km;

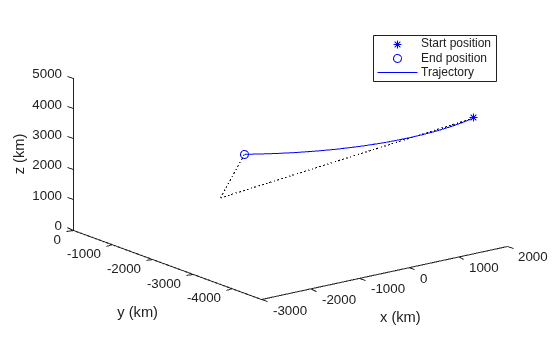

Visualize the start position, end position, and trajectory in the ECEF frame.
hold on plot3(positions(1,1),positions(1,2),positions(1,3),'b*') plot3(positions(end,1),positions(end,2),positions(end,3),'bo') plot3(positions(:,1),positions(:,2),positions(:,3),'b')
Plot the Earth radial lines of the start position and end position.
plot3([0 positions(1,1)],[0 positions(1,2)],[0 positions(1,3)],'k:') plot3([0 positions(end,1)],[0 positions(end,2)],[0 positions(end,3)],'k:') xlabel('x (km)') ylabel('y (km)') zlabel('z (km)') legend('Start position','End position','Trajectory') view(3)
Version History
Introduced in R2021a
