probgrid

Nonuniformly spaced probabilities

    Description

    example

    p = probgrid(p1,p2) returns a nonuniformly spaced array of 100 probabilities between p1 and p2 that correspond to the values of the normal cumulative distribution function (CDF) evaluated over a set of points uniformly spaced in the domain of the normal distribution.

    example

    p = probgrid(p1,p2,n) returns an array of n probabilities.

    Examples

    collapse all

    Evaluate the standard normal cumulative distribution function (CDF) on a 10-point grid between 0.2 and 0.95. Determine the points that correspond to the probabilities by evaluating the inverse normal CDF, also known as the probit function.

    pmin = 0.2;
    pmax = 0.95;
    N = 10;

    pd = probgrid(pmin,pmax,N);

    xd = sqrt(2)*erfinv(2*pd-1);

    Plot the standard normal CDF and overlay the points generated by probgrid.

    x = -3:0.01:3;
    sncdf = (1+erf(x/sqrt(2)))/2;

    plot(x,sncdf)

    hold on
    plot(xd,pd,'o')
    hold off

    legend({'Standard Normal CDF','Probability Vector'}, ...
      'Location','Northwest')
    xticks(xd)
    xtickangle(40)
    yticks(round(100*pd)/100)
    ylabel('Probability')
    grid on

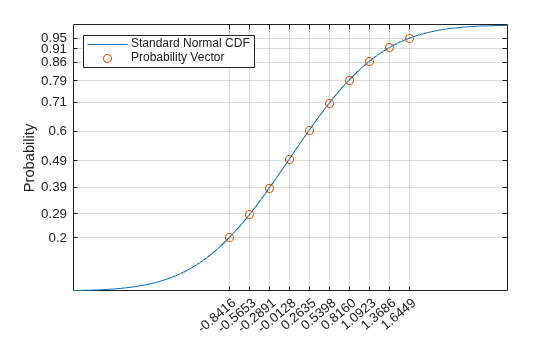

    Figure contains an axes object. The axes object contains 2 objects of type line. These objects represent Standard Normal CDF, Probability Vector.

    Input Arguments

    collapse all

    Interval endpoints, specified as scalars from the interval [0, 1]. p1 and p2 must obey p1 < p2.

    Data Types: double

    Number of samples in probability grid, specified as a positive integer scalar.

    Data Types: double

    Output Arguments

    collapse all

    Array of probabilities, returned as a row vector.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Introduced in R2021a
