phased.CustomAntennaElement
Custom antenna element
Description
The phased.CustomAntennaElement
System object™ models an antenna element with a custom spatial response pattern. The response
pattern can be defined for polarized or non-polarized fields.
To create a custom antenna element:
Create the
phased.CustomAntennaElement
object and set its properties.Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
Creation
Description
creates a System object, antenna
= phased.CustomAntennaElementantenna
, with default property values. The default
response pattern is spatially isotropic.
creates a custom antenna object, antenna
= phased.CustomAntennaElement(Name
,Value
)antenna
, with each specified
property Name set to the specified Value. You can specify additional name-value pair
arguments in any order as
(Name1
,Value1
,...,NameN
,ValueN
).
For example, the output response of the object depends on whether polarization is set or not.
To create a nonpolarized response pattern, set the
SpecifyPolarizationPattern
property tofalse
(default). Then, use theMagnitudePattern
andPhasePattern
properties to define the response pattern.To create a polarized response pattern, set the
SpecifyPolarizationPattern
property totrue
. Then, use any or all of theHorizontalMagnitudePattern
,HorizontalPhasePattern
,VerticalMagnitudePattern
, andVerticalPhasePattern
properties to define the response pattern.
Properties
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release
function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
FrequencyVector
— Response and pattern frequency vector
[0 1e20]
(default) | 1-by-L row vector
Frequencies at which the frequency response and antenna patterns are to be returned, specified as a 1-by-L row vector. The elements of the vector must be in increasing order. The antenna element has no response outside the frequency range specified by the minimum and maximum elements of the frequency vector. Units are in Hz.
Example: [200:50:300]*1e6
Data Types: double
FrequencyResponse
— Frequency responses of antenna element
[0 0]
(default) | real-valued 1-by-L vector
Frequency responses at the frequencies defined in
FrequencyVector
property, specified as a
1-by-L row vector. L equals the length of the
vector specified in the FrequencyVector
property. Units are in
dB.
Example: [0 6 0]
Data Types: double
PatternCoordinateSystem
— Coordinate system of custom antenna pattern
'az-el'
(default) | 'phi-theta'
Coordinate system of custom antenna pattern, specified 'az-el'
or
'phi-theta'
. When you specify 'az-el'
, use the
AzimuthAngles
and ElevationAngles
properties
to specify the pattern coordinates system. When you specify
'phi-theta'
, use the PhiAngles
and
ThetaAngles
properties to specify the pattern coordinates
system.
Data Types: char
AzimuthAngles
— Azimuth angles
[-180:180]
(default) | real-valued length-P vector
Specify the azimuth angles as a length-P vector. These angles are the azimuth angles where the custom radiation pattern is specified. P must be greater than 2. The azimuth angles must lie between –180° and 180° and be in strictly increasing order. Units are in degrees.
Example: [30 40 50]
Dependencies
To enable this property, set the PatternCoordinateSystem
property to 'az-el'
.
Data Types: double
ElevationAngles
— Elevation angles
[-90:90]
(default) | real-valued length-Q vector
Specify the elevation angles as a length-Q vector. These angles are the elevation angles where the custom radiation pattern is specified. Q must be greater than 2. The elevation angles must lie between –90° and 90° and be in strictly increasing order. Units are in degrees.
Example: [-30 0 +30]
Dependencies
To enable this property, set the PatternCoordinateSystem
property to 'az-el'
.
Data Types: double
PhiAngles
— Phi angles in phi-theta coordinates system
0:360
(default) | real-valued P-length vector
Phi angles used to represent the element response pattern in phi-theta coordinates, specified as a real-valued P-length vector. Phi angles lie between 0° and 360°. P must be greater than 2. Look here for definitions of Phi and Theta Angles.
Example: [90:180]
Dependencies
To enable this property, set the PatternCoordinateSystem
property to 'phi-theta'
.
Data Types: double
ThetaAngles
— Theta angles in phi-theta coordinate system
0:180
(default) | real-valued Q-length vector
Theta angles used to represent the element response pattern in phi-theta coordinates, specified as a real-valued Q-length vector. The theta angle lies between 0° and 180°. Look here for definitions of Phi and Theta Angles. Q must be greater than 2.
Example: [40:80]
Dependencies
To enable this property, set the PatternCoordinateSystem
property to 'phi-theta'
.
Data Types: double

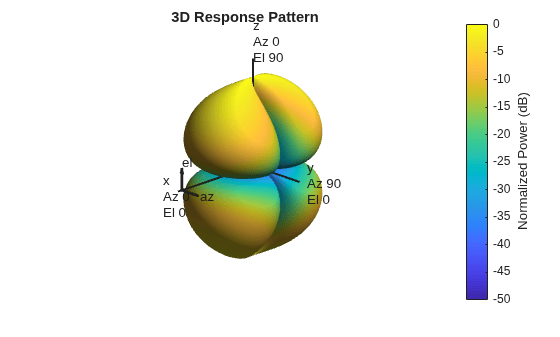

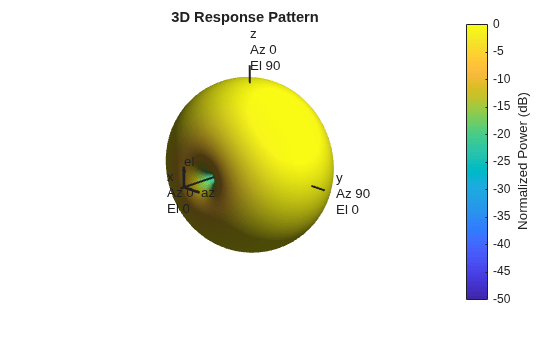

SpecifyPolarizationPattern
— Polarized array response
false
(default) | true
Polarized array response, specified as false
or
true
.
When the
SpecifyPolarizationPattern
property is set tofalse
, the antenna element transmits or receives non-polarized radiation. In this case, use theMagnitudePattern
property to set the antenna response pattern.When the
SpecifyPolarizationPattern
property is set totrue
, the antenna element transmits or receives polarized radiation. In this case, use theHorizontalMagnitudePattern
andHorizontalPhasePattern
properties to set the horizontal polarization response pattern and theVerticalMagnitudePattern
andVerticalPhasePattern
properties to set the vertical polarization response pattern.
Data Types: logical
MagnitudePattern
— Magnitude of combined antenna radiation pattern
zeros(181,361)
(default) | real-valued Q-by-P matrix | real-valued Q-by-P-by-L
array
The magnitude of the combined polarization antenna radiation, pattern specified as a
Q-by-P matrix or a
Q-by-P-by-L array. This
property is used only when the SpecifyPolarizationPattern
property
is set to false
. Magnitude units are in dB.
If the value of this property is a Q-by-P matrix, the same pattern is applied to all frequencies specified in the
FrequencyVector
property.If the value is a Q-by-P-by-L array, each Q-by-P page of the array specifies a pattern for the corresponding frequency specified in the
FrequencyVector
property.
If the pattern contains a NaN
at any azimuth and elevation
direction, it is converted to -Inf
, indicating zero response in that
direction. The custom antenna object uses interpolation to estimate the response of the
antenna at a given direction. To avoid interpolation errors, the custom response pattern
must contain azimuth angles in the range [–180,180]
degrees. Set the
range of elevation angles to [–90,90]
degrees.
Data Types: double
PhasePattern
— Phase of combined antenna radiation pattern
zeros(181,361)
(default) | real-valued Q-by-P matrix | real-valued Q-by-P-by-L
array
The phase of the combined polarization antenna radiation pattern, specified as a
Q-by-P matrix or a
Q-by-P-by-L array. This
property is used only when the SpecifyPolarizationPattern
property
is set to false
. Units are in degrees.
If the value of this property is a Q-by-P matrix, the same pattern is applied to all frequencies specified in the
FrequencyVector
property.If the value is a Q-by-P-by-L array, each Q-by-P page of the array specifies a pattern for the corresponding frequency specified in the
FrequencyVector
property.
The custom antenna object uses interpolation to estimate the response of the antenna at a given direction. To avoid interpolation errors, the custom response pattern must contain azimuth angles in the range [–180°,180°]. Set the range of elevation angles to [–90°,90°].
Data Types: double
HorizontalMagnitudePattern
— Magnitude of horizontal polarization component of antenna radiation pattern
zeros(181,361)
(default) | real-valued Q-by-P matrix | real-valued Q-by-P-by-L
array
The magnitude of the horizontal polarization component of the antenna radiation pattern, specified as a real-valued Q-by-P matrix or real-valued a Q-by-P-by-L array. Magnitude units are in dB.
If the value of this property is a Q-by-P matrix, the same pattern is applied to all frequencies specified in the
FrequencyVector
property.If the value is a Q-by-P-by-L array, each Q-by-P page of the array specifies a pattern for the corresponding frequency specified in the
FrequencyVector
property.
If the magnitude pattern contains a NaN
at any azimuth and
elevation direction, it is converted to -Inf
, indicating zero
response in that direction. The custom antenna object uses interpolation to estimate the
response of the antenna at a given direction. To avoid interpolation errors, the custom
response pattern must contain azimuth angles in the range
[–180,180]°
and elevation angles in the range
[–90,90]°
.
Dependencies
To enable this property, set the SpecifyPolarizationPattern
property to true
.
Data Types: double
HorizontalPhasePattern
— Phase of horizontal polarization component of antenna radiation pattern
zeros(181,361)
(default) | real-valued Q-by-P matrix | real-valued Q-by-P-by-L
array
The phase of the horizontal polarization component of the antenna radiation pattern,
specified as a real-valued Q-by-P matrix or a
real-valued Q-by-P-by-L array.
This property is used only when the SpecifyPolarizationPattern
property is set to true
. Phase units are in degrees.
If the value of this property is a Q-by-P matrix, the same pattern is applied to all frequencies specified in the
FrequencyVector
property.If the value is a Q-by-P-by-L array, each Q-by-P page of the array specifies a pattern for the corresponding frequency specified in the
FrequencyVector
property.
The custom antenna object uses interpolation to estimate the response of the antenna
at a given direction. To avoid interpolation errors, the custom response pattern must
contain azimuth angles in the range [–180,180]°
and elevation
angles in the range [–90,90]°
.
Dependencies
To enable this property, set the SpecifyPolarizationPattern
property to true
.
Data Types: double
VerticalMagnitudePattern
— Magnitude of vertical polarization component of antenna radiation pattern
zeros(181,361)
(default) | real-valued Q-by-P matrix | real-valued Q-by-P-by-L
array
The magnitude of the vertical polarization component of the antenna radiation
pattern specified as a Q-by-P matrix or a
Q-by-P-by-L array. This
property is used only when the SpecifyPolarizationPattern
property
is set to true
. Magnitude units are in dB.
If the value of this property is a Q-by-P matrix, the same pattern is applied to all frequencies specified in the
FrequencyVector
property.If the value is a Q-by-P-by-L array, each Q-by-P page of the array specifies a pattern for the corresponding frequency specified in the
FrequencyVector
property.
If the pattern contains a NaN
at any azimuth and elevation
direction, it is converted to -Inf
, indicating zero response in that
direction. The custom antenna object uses interpolation to estimate the response of the
antenna at a given direction. To avoid interpolation errors, the custom response pattern
must contain azimuth angles in the range[–180,180]°
and
elevation angles in the range [–90,90]°
.
Dependencies
To enable this property, set the SpecifyPolarizationPattern
property to true
.
Data Types: double
VerticalPhasePattern
— Phase of vertical polarization component of antenna radiation pattern
zeros(181,361)
(default) | real-valued Q-by-P matrix | real-valued Q-by-P-by-L
array
The phase of the vertical polarization component of the antenna radiation pattern,
specified as a Q-by-P matrix or a
Q-by-P-by-L array. This
property is used only when the SpecifyPolarizationPattern
property
is set to true
. Phase units are in degrees.
If the value of this property is a Q-by-P matrix, the same pattern is applied to all frequencies specified in the
FrequencyVector
property.If the value is a Q-by-P-by-L array, each Q-by-P page of the array specifies a pattern for the corresponding frequency specified in the
FrequencyVector
property.
The custom antenna object uses interpolation to estimate the response of the antenna
at a given direction. To avoid interpolation errors, the custom response pattern must
contain azimuth angles in the range [–180,180]°
and elevation
angles in the range [–90,90]°
.
Dependencies
To enable this property, set the SpecifyPolarizationPattern
property to true
.
Data Types: double

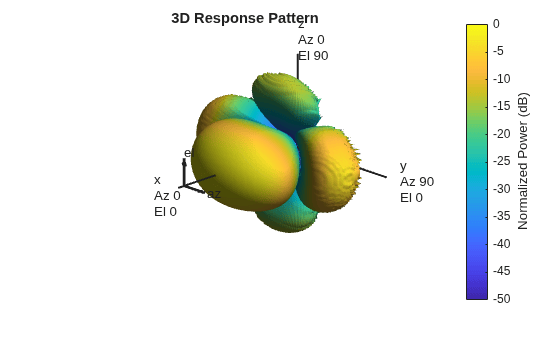

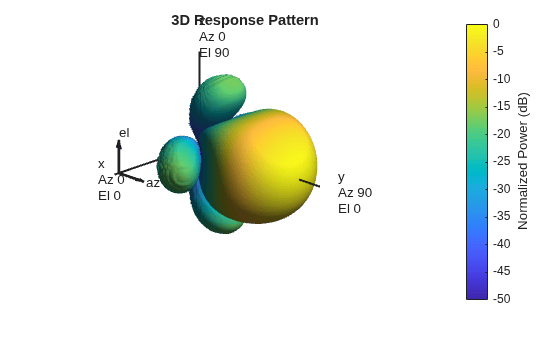

MatchArrayNormal
— Match element normal to array normal
true
(default) | false
Set this property to true
to align the antenna element to an
array normal. The antenna pattern is rotated so that the x-axis of
the element coordinate system points along the array normal. This property is used only
when the antenna element belongs to an array. Use the property in conjunction with the
ArrayNormal
property of the phased.URA
and phased.UCA
System objects. Set this
property to false
to use the element pattern without rotation.
Data Types: logical
Usage
Syntax
Description
returns the antenna’s voltage response RESP
= antenna(FREQ
,ANG
)RESP
at operating frequencies
specified in FREQ
and directions specified in
ANG
. The form of RESP
depends upon whether the
antenna element supports polarization as determined by the
SpecifyPolarizationPattern
property. If
SpecifyPolarizationPattern
is set to false
,
RESP
is an M-by-L matrix
containing the antenna response at the M angles specified in
ANG
and at the L frequencies specified in
FREQ
. If SpecifyPolarizationPattern
is set to
true
, RESP
is a MATLAB®
struct
containing two fields, RESP.H
and
RESP.V
, representing the antenna's response in horizontal and
vertical polarization, respectively. Each field is an
M-by-L matrix containing the antenna response at
the M angles specified in ANG
and at the
L frequencies specified in FREQ
.
Note
The object performs an initialization the first time the object is executed. This
initialization locks nontunable properties
and input specifications, such as dimensions, complexity, and data type of the input data.
If you change a nontunable property or an input specification, the System object issues an error. To change nontunable properties or inputs, you must first
call the release
method to unlock the object.
Input Arguments
FREQ
— Operating frequency of antenna element
nonnegative scalar | nonnegative, real-valued 1-by-L row vector
Operating frequency of the antenna element, specified as a nonnegative scalar or nonnegative, real-valued 1-by-L row vector. Frequency units are in Hz.
FREQ
must lie within the range of values specified by the
FrequencyRange
or the FrequencyVector
property of the element. Otherwise, the element produces no response and the response is
returned as –Inf
. Element objects use the
FrequencyRange
property, except for phased.CustomAntennaElement
, which uses the
FrequencyVector
property.
Example: [1e8 2e6]
Data Types: double
ANG
— Azimuth and elevation angles of response directions
real-valued 1-by-M row vector | real-valued 2-by-M matrix
Azimuth and elevation angles of the response directions, specified as a real-valued 1-by-M row vector or a real-valued 2-by-M matrix, where M is the number of angular directions. Angle units are in degrees. The azimuth angle must lie in the range –180° to 180°, inclusive. The elevation angle must lie in the range –90° to 90°, inclusive.
If
ANG
is a 1-by-M vector, each element specifies the azimuth angle of the direction. In this case, the corresponding elevation angle is assumed to be zero.If
ANG
is a 2-by-M matrix, each column of the matrix specifies the direction in the form[azimuth;elevation]
.
The azimuth angle is the angle between the x-axis and the projection of the direction vector onto the xy-plane. This angle is positive when measured from the x-axis toward the y-axis. The elevation angle is the angle between the direction vector and xy-plane. This angle is positive when measured toward the z-axis. See the definition of Azimuth and Elevation Angles.
Example: [110 125; 15 10]
Data Types: double
Output Arguments
RESP
— Voltage response of antenna
complex-valued M-by-L matrix
Voltage response of antenna element, returned as a complex-valued
M-by-L matrix. In this matrix,
M represents the number of angles specified in
ANG
and L represents the number of
frequencies specified in FREQ
.
Data Types: double
Object Functions
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named obj
, use
this syntax:
release(obj)
Specific to Antenna and Transducer Element System Objects
beamwidth | Compute and display beamwidth of sensor element pattern |
directivity | Directivity of antenna or transducer element |
isPolarizationCapable | Antenna element polarization capability |
pattern | Plot antenna or transducer element directivity and patterns |
patternAzimuth | Plot antenna or transducer element directivity and pattern versus azimuth |
patternElevation | Plot antenna or transducer element directivity and pattern versus elevation |
Examples
Response and Directivity of Custom Antenna
Create a user-defined antenna with a cosine pattern. Then, plot an elevation cut of the antenna's power response.
The user-defined pattern is omnidirectional in the azimuth direction and has a cosine pattern in the elevation direction. Assume the antenna operates at 1 GHz. Obtain the response at 20° azimuth and 30° elevation.
fc = 1e9; azang = -180:180; elang = -90:90; magpattern = mag2db(repmat(cosd(elang)',1,numel(azang))); phasepattern = zeros(size(magpattern)); antenna = phased.CustomAntennaElement('AzimuthAngles',azang, ... 'ElevationAngles',elang,'MagnitudePattern',magpattern, ... 'PhasePattern',phasepattern); resp = antenna(fc,[20;30])
resp = 0.8660

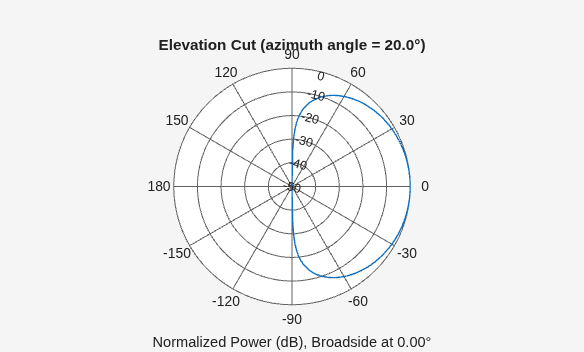

Plot an elevation cut of the power response.
pattern(antenna,fc,20,-90:90,'CoordinateSystem','polar','Type','powerdb')

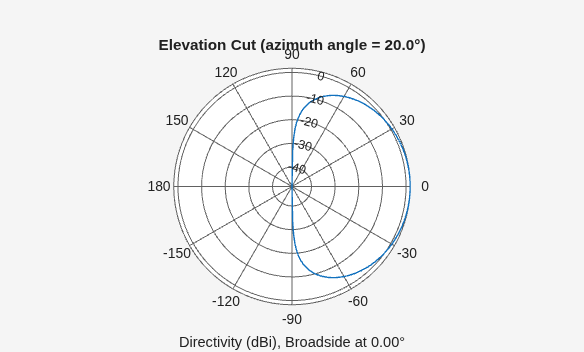

Plot an elevation cut of the directivity.
pattern(antenna,fc,20,-90:90,'CoordinateSystem','polar','Type','directivity')
Antenna Radiation Pattern in U-V Coordinates
Define a custom antenna in u-v space. Then, calculate and plot the response.
Define the radiation pattern (in dB) of an antenna in terms of u and v coordinates within the unit circle.
u = -1:0.01:1; v = -1:0.01:1; [u_grid,v_grid] = meshgrid(u,v); pat_uv = sqrt(1 - u_grid.^2 - v_grid.^2); pat_uv(hypot(u_grid,v_grid) >= 1) = 0;
Create an antenna with this radiation pattern. Convert u-v coordinates to azimuth and elevation coordinates.
[pat_azel,az,el] = uv2azelpat(pat_uv,u,v); array = phased.CustomAntennaElement('AzimuthAngles',az,'ElevationAngles',el, ... 'MagnitudePattern',mag2db(pat_azel),'PhasePattern',45*ones(size(pat_azel)));
Calculate the response in the direction u = 0.5, v = 0. Assume the antenna operates at 1 GHz. The output of the step method is in linear units.
dir_uv = [0.5;0]; dir_azel = uv2azel(dir_uv); fc = 1e9; resp = array(fc,dir_azel)
resp = 0.6124 + 0.6124i

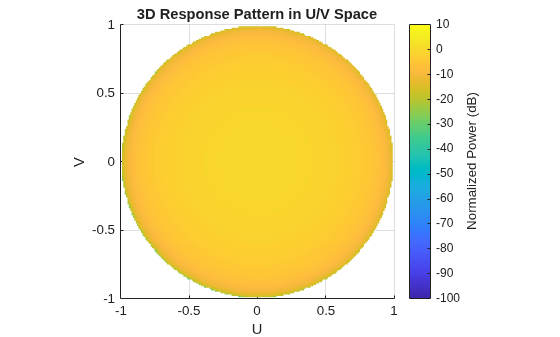

Plot the 3D response in u-v coordinates.
pattern(array,fc,[-1:.01:1],[-1:.01:1],'CoordinateSystem','uv','Type','powerdb')

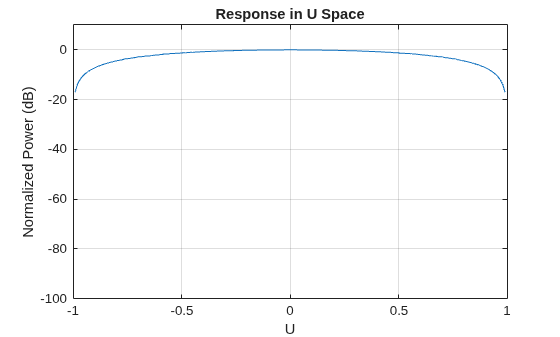

Display the antenna response as a line plot in u-v coordinates.
pattern(array,fc,[-1:.01:1],0,'CoordinateSystem','uv','Type','powerdb')
Polarized Antenna Radiation Patterns
Model a short dipole antenna oriented along the -axis of the local antenna coordinate system. For this type of antenna, the horizontal and vertical components of the electric field are given by and .
Specify a normalized radiation pattern of a short dipole antenna terms of azimuth, , and elevation, , coordinates. The vertical and horizontal radiation patterns are normalized to a maximum of unity.
az = [-180:180]; el = [-90:90]; [az_grid,el_grid] = meshgrid(az,el); horz_pat_azel = ... mag2db(abs(sind(az_grid))); vert_pat_azel = ... mag2db(abs(sind(el_grid).*cosd(az_grid)));
Set up the antenna. Specify the SpecifyPolarizationPattern
property to produce polarized radiation. In addition, use the HorizontalMagnitudePattern
and VerticalMagnitudePattern
properties to specify the pattern magnitude values. The HorizontalPhasePattern
and VerticalPhasePattern
properties take default values of zero.
antenna = phased.CustomAntennaElement(... 'AzimuthAngles',az,'ElevationAngles',el,... 'SpecifyPolarizationPattern',true,... 'HorizontalMagnitudePattern',horz_pat_azel,... 'VerticalMagnitudePattern',vert_pat_azel);
Assume the antenna operates at 1 GHz.
fc = 1e9;
Display the vertical response pattern.
pattern(antenna,fc,[-180:180],[-90:90],... 'CoordinateSystem','polar',... 'Type','powerdb',... 'Polarization','V')
Display the horizontal response pattern.
pattern(antenna,fc,[-180:180],[-90:90],... 'CoordinateSystem','polar',... 'Type','powerdb',... 'Polarization','H')

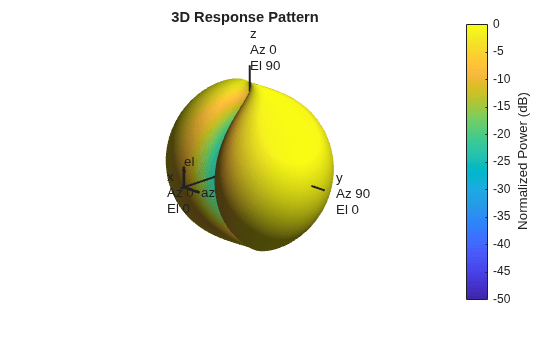

The combined polarization response, shown below, illustrates the -axis null of the dipole.
pattern(antenna,fc,[-180:180],[-90:90],... 'CoordinateSystem','polar',... 'Type','powerdb',... 'Polarization','combined')
Match Custom Antenna Normal to Array Normal
Define a custom antenna in u-v space. Show how the array response pattern is affected by the choice of the MatchArrayNormal
property of the phased.CustomAntennaElement
.
Define the response pattern (in dB) of an antenna as a function of u and v coordinates within the unit circle. The antenna operates at 1 GHz.
fc = 1e9;
c = physconst('LightSpeed');
u = -1:0.01:1;
v = -1:0.01:1;
[u_grid,v_grid] = meshgrid(u,v);
pat_uv = sqrt(1 - u_grid.^2 - v_grid.^2);
pat_uv(hypot(u_grid,v_grid) >= 1) = 0;
Create a custom antenna with this pattern. Convert u-v coordinates to azimuth and elevation coordinates. Set MatchArrayNormal
to false
.
[pat_azel,az,el] = uv2azelpat(pat_uv,u,v); antenna = phased.CustomAntennaElement('AzimuthAngles',az,'ElevationAngles',el, ... 'MagnitudePattern',mag2db(pat_azel),'PhasePattern',45*ones(size(pat_azel)), ... "MatchArrayNormal",false);
Construct a 3-by-3 URA with this element and display the antenna pattern in 3-D polar coordinates. The element spacing is one-half wavelength. The array normal points along the y-axis.
lam = c/fc; array = phased.URA('Element',antenna,'Size',[3 3],'ElementSpacing', ... [lam/2 lam/2],'ArrayNormal','y'); pattern(array,fc,-180:180,-90:90,'PropagationSpeed',c, ... 'CoordinateSystem','polar','Type','powerdb','Normalize',true)
The pattern shows the interplay between the element pattern pointing along the x-axis and the array pattern pointing along the y-axis.
Create another custom antenna with the same radiation pattern. Set MatchArrayNormal
to true. Then create another array with this element.
antenna2 = phased.CustomAntennaElement('AzimuthAngles',az,'ElevationAngles',el, ... 'MagnitudePattern',mag2db(pat_azel),'PhasePattern',45*ones(size(pat_azel)), ... "MatchArrayNormal",true); array2 = phased.URA('Element',antenna2,'Size',[3 3],'ElementSpacing', ... [lam/2 lam/2],'ArrayNormal','y'); pattern(array2,fc,-180:180,-90:90,'PropagationSpeed',c, ... 'CoordinateSystem','polar','Type','powerdb','Normalize',true)
This pattern shows the aligned element and array patterns pointing along the y-axis.
Custom Antenna Element Response at 30° Elevation
Construct a user-defined antenna with an omnidirectional response in azimuth and a cosine pattern in elevation. The antenna operates at 1 GHz. Plot the response pattern. Then, find the antenna response at 30°.
antenna = phased.CustomAntennaElement;
antenna.AzimuthAngles = -180:180;
antenna.ElevationAngles = -90:90;
antenna.MagnitudePattern = mag2db(repmat(cosd(antenna.ElevationAngles)',...
1,numel(antenna.AzimuthAngles)));
Find the response at 30° elevation for an operating frequency of 1 GHz.
fc = 1.0e9; resp = antenna(fc,[0;30])
resp = 0.8660
Antenna with Custom Radiation Pattern
Create a custom antenna element object. The radiation pattern has a cosine dependence on elevation angle but is independent of azimuth angle.
az = -180:90:180; el = -90:45:90; elresp = cosd(el); magpattern = mag2db(repmat(elresp',1,numel(az))); phasepattern = zeros(size(magpattern)); antenna = phased.CustomAntennaElement('AzimuthAngles',az,... 'ElevationAngles',el,'MagnitudePattern',magpattern, ... 'PhasePattern',phasepattern);
Display the radiation pattern.
disp(antenna.MagnitudePattern)
-Inf -Inf -Inf -Inf -Inf -3.0103 -3.0103 -3.0103 -3.0103 -3.0103 0 0 0 0 0 -3.0103 -3.0103 -3.0103 -3.0103 -3.0103 -Inf -Inf -Inf -Inf -Inf
Calculate the antenna response at the azimuth-elevation pairs (-30,0) and (-45,0) at 500 MHz.
ang = [-30 0; -45 0]; resp = antenna(500.0e6,ang); disp(resp)
0.7071 1.0000
The following code illustrates how nearest-neighbor interpolation is used to find the antenna voltage response in the two directions. The total response is the product of the angular response and the frequency response.
g = interp2(deg2rad(antenna.AzimuthAngles),... deg2rad(antenna.ElevationAngles),... db2mag(antenna.MagnitudePattern),... deg2rad(ang(1,:))', deg2rad(ang(2,:))','nearest',0); h = interp1(antenna.FrequencyVector,... db2mag(antenna.FrequencyResponse),500e6,'nearest',0); antresp = h.*g;
Compare the value of antresp
to the response of the antenna.
disp(mag2db(antresp))
-3.0103 0
Directivity of Custom Antenna
Compute the directivity of a custom antenna element.
Define an antenna pattern for a custom antenna element in azimuth-elevation space. The pattern is omnidirectional in the azimuth direction and has a cosine pattern in the elevation direction. Assume the antenna operates at 1 GHz. Get the response at zero degrees azimuth and from -30 to 30 degrees elevation.
fc = 1e9; azang = [-180:180]; elang = [-90:90]; magpattern = mag2db(repmat(cosd(elang)',1,numel(azang))); phasepattern = zeros(size(magpattern)); antenna = phased.CustomAntennaElement('AzimuthAngles',azang, ... 'ElevationAngles',elang,'MagnitudePattern',magpattern, ... 'PhasePattern',phasepattern);
Calculate the directivities as a function of elevation for 0° azimuth angle.
angs = [0,0,0,0,0,0,0;-30,-20,-10,0,10,20,30]; freq = 1e9; d = directivity(antenna,freq,angs)
d = 7×1
0.5115
1.2206
1.6279
1.7609
1.6279
1.2206
0.5115
The directivity is maximum at elevation.
Custom Antenna Element Supports Polarization
Show that the CustomAntennaElement
antenna element supports polarization when the SpecifyPolarizationPattern
property is set to true
.
antenna = phased.CustomAntennaElement('SpecifyPolarizationPattern',true);
isPolarizationCapable(antenna)
ans = logical
1
The returned value 1
shows that this antenna element supports polarization.
Power and Directivity Patterns of Custom Antenna
Create a custom antenna with a cosine pattern. Show the response at boresight. Then, plot the antenna's field and directivity patterns.
Create the antenna and calculate the response. The user-defined pattern is omnidirectional in the azimuth direction and has a cosine pattern in the elevation direction. Assume the antenna works at 1 GHz.
fc = 1e9;
antenna = phased.CustomAntennaElement;
antenna.AzimuthAngles = -180:180;
antenna.ElevationAngles = -90:90;
antenna.MagnitudePattern = mag2db(repmat(cosd(antenna.ElevationAngles)', ...
1,numel(antenna.AzimuthAngles)));
resp = antenna(fc,[0;0])
resp = 1

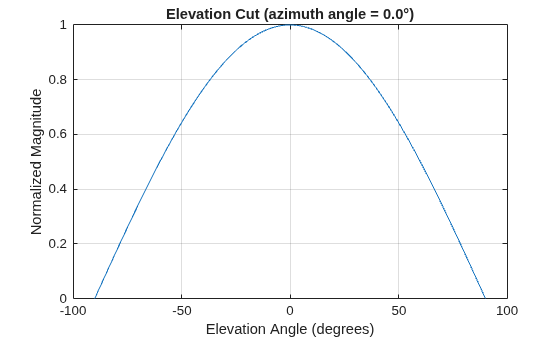

Plot an elevation cut of the magnitude response as a line plot.
pattern(antenna,fc,0,[-90:90],'CoordinateSystem','rectangular', ... 'Type','efield')

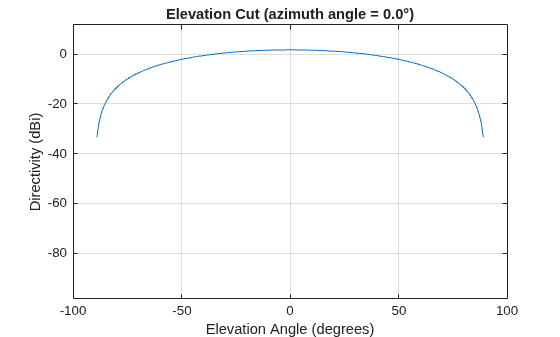

Plot an elevation cut of the directivity as a line plot, showing that the maximum directivity is approximately 2 dB.
pattern(antenna,fc,0,[-90:90],'CoordinateSystem','rectangular', ... 'Type','directivity')
Pattern of Custom Antenna over Selected Range of Angles
Create a custom antenna System object™. The user-defined pattern is omnidirectional in the azimuth direction and has a cosine pattern in the elevation direction. Assume the antenna operates at a frequency of 1 GHz. First show the response at boresight. Display the 3-D pattern for a 60 degree range of azimuth and elevation angles centered at 0 degrees azimuth and 0 degrees elevation in 0.1 degree increments.
fc = 1e9; azang = -180:180; elang = -90:90; magpattern = mag2db(repmat(cosd(elang)',1,numel(azang))); antenna = phased.CustomAntennaElement('AzimuthAngles',azang, ... 'ElevationAngles',elang,'MagnitudePattern',magpattern); resp = antenna(fc,[0;0])
resp = 1

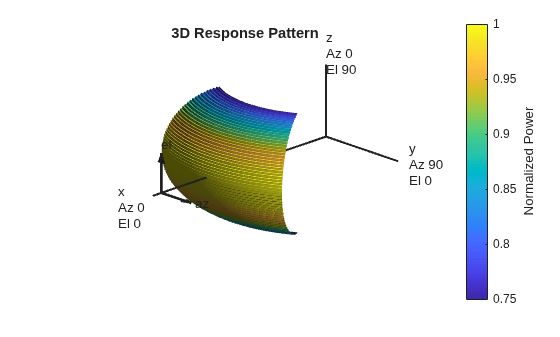

Plot the power pattern for a range of angles.
pattern(antenna,fc,[-30:0.1:30],[-30:0.1:30],'CoordinateSystem','polar', ... 'Type','power')
Reduced Azimuth Pattern of Custom Antenna Element
Create an antenna with a custom response. The user-defined pattern has a sine pattern in the azimuth direction and a cosine pattern in the elevation direction. Assume the antenna operates at a frequency of 500 MHz. Plot an azimuth cut of the power pattern of the custom antenna element at 0 and 30 degrees elevation. Assume the operating frequency is 500 MHz.
Create the antenna element.
fc = 500e6; antenna = phased.CustomAntennaElement; antenna.AzimuthAngles = -180:180; antenna.ElevationAngles = -90:90; antenna.MagnitudePattern = mag2db(abs(cosd(antenna.ElevationAngles)'*sind(antenna.AzimuthAngles))); patternAzimuth(antenna,fc,[0 30],'Type','powerdb')

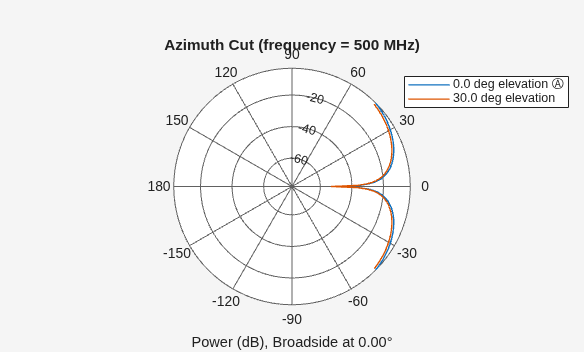

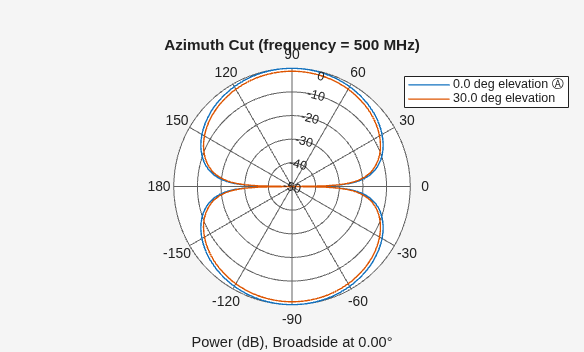

Plot a reduced range of azimuth angles using the Azimuth
parameter.
patternAzimuth(antenna,fc,[0 30],'Azimuth',[-45:45],'Type','powerdb')

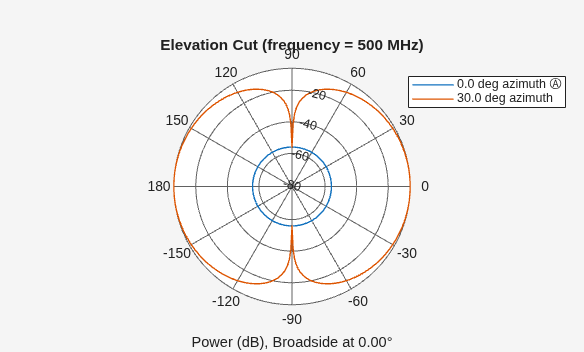

Reduced Elevation Pattern of Custom Antenna Element
Create an antenna with a custom response. The user-defined pattern has a sine pattern in the azimuth direction and a cosine pattern in the elevation direction. Assume the antenna operates at a frequency of 500 MHz. Plot an elevation cut of the power of the custom antenna element at 0 and 30 degrees elevation. Assume the operating frequency is 500 MHz.
Create the antenna element.
fc = 500e6; antenna = phased.CustomAntennaElement; antenna.AzimuthAngles = -180:180; antenna.ElevationAngles = -90:90; antenna.MagnitudePattern = mag2db(abs(cosd(antenna.ElevationAngles)'*sind(antenna.AzimuthAngles))); patternElevation(antenna,fc,[0 30],'Type','powerdb')

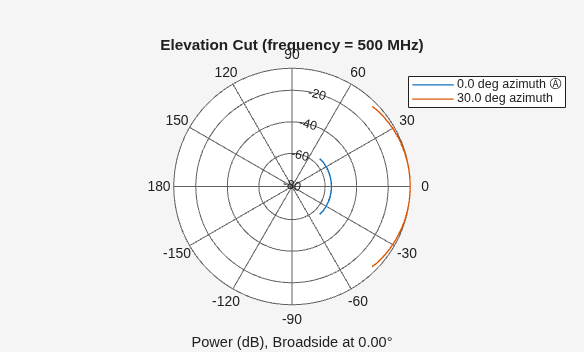

Plot a reduced range of elevation angles using the Azimuth
parameter.
patternElevation(antenna,fc,[0 30],'Elevation',[-45:45],'Type','powerdb')
Algorithms
The total response of a custom antenna element is a combination
of its frequency response and spatial response. phased.CustomAntennaElement
calculates
both responses using nearest neighbor interpolation, and then multiplies
the responses to form the total response.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
pattern
,patternAzimuth
,patternElevation
, andplotResponse
methods are not supported.See System Objects in MATLAB Code Generation (MATLAB Coder).
Version History
Introduced in R2011a
MATLAB 명령
다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.
명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
