findStructuralProperties

Find structural material properties assigned to geometric region

Syntax

smpa = findStructuralProperties(structuralmodel.MaterialProperties,RegionType,RegionID)

Description

example

smpa = findStructuralProperties(structuralmodel.MaterialProperties,RegionType,RegionID) returns the structural material properties assigned to the specified region. Structural properties include the Young's modulus, Poisson's ratio, and mass density of the material.

Examples

collapse all

Find Young's modulus and Poisson's ratio for cells of a 3-D geometry.

Create a structural model.

structuralmodel = createpde('structural','static-solid');

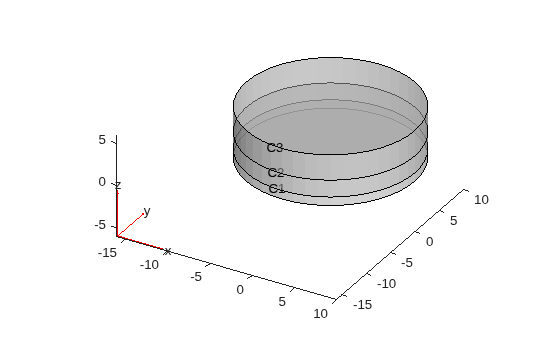

Create the geometry consisting of three stacked cylinders and include it in the model. Plot the geometry.

gm = multicylinder(10,[1 2 3],'ZOffset',[0 1 3]);
structuralmodel.Geometry = gm;
pdegplot(structuralmodel,'CellLabels','on','FaceAlpha',0.5)

Assign different values of the Young's modulus and Poisson's ratio to each cell.

structuralProperties(structuralmodel,'Cell',1,'YoungsModulus',200E9, ...
                                              'PoissonsRatio',0.3);
structuralProperties(structuralmodel,'Cell',2,'YoungsModulus',210E9, ...
                                              'PoissonsRatio',0.3);
structuralProperties(structuralmodel,'Cell',3,'YoungsModulus',110E9, ...
                                              'PoissonsRatio',0.35);

Check the structural properties specification for cell 1.

mC1 = findStructuralProperties(structuralmodel.MaterialProperties,'Cell',1)
mC1 =
  StructuralMaterialAssignment with properties:

       RegionType: 'Cell'
         RegionID: 1
    YoungsModulus: 2.0000e+11
    PoissonsRatio: 0.3000
      MassDensity: []
              CTE: []

Check the structural properties specification for cells 2 and 3.

mC23 = findStructuralProperties(structuralmodel.MaterialProperties,'Cell',[2,3]);
mC2 = mC23(1)
mC2 =
  StructuralMaterialAssignment with properties:

       RegionType: 'Cell'
         RegionID: 2
    YoungsModulus: 2.1000e+11
    PoissonsRatio: 0.3000
      MassDensity: []
              CTE: []

mC3 = mC23(2)
mC3 =
  StructuralMaterialAssignment with properties:

       RegionType: 'Cell'
         RegionID: 3
    YoungsModulus: 1.1000e+11
    PoissonsRatio: 0.3500
      MassDensity: []
              CTE: []

Input Arguments

collapse all

Material properties of the model, specified as the MaterialProperties property of a StructuralModel object.

Example: structuralmodel.MaterialProperties

Geometric region type, specified as 'Face' for a 2-D model or 'Cell' for a 3-D model.

Example: findStructuralProperties(structuralmodel.MaterialProperties,'Cell',1)

Data Types: char | string

Geometric region ID, specified as a vector of positive integers. Find the region IDs using pdegplot, as shown in Create Geometry and Remove Face Boundaries or STL File Import.

Example: findStructuralProperties(structuralmodel.MaterialProperties,'Face',1:3)

Data Types: double

Output Arguments

collapse all

Material properties assignment, returned as a StructuralMaterialAssignment object. For details, see StructuralMaterialAssignment Properties.

Introduced in R2017b
