findElectromagneticSource

Find electromagnetic source assigned to geometric region

Since R2021a

Domain-specific electromagnetic workflow is not recommended. New features might not be compatible with this workflow. For help migrating your existing code to the unified finite element workflow, see Migration from Domain-Specific to Unified Workflow.

Syntax

emSource = findElectromagneticSource(sources,RegionType,RegionID)

Description

emSource = findElectromagneticSource(sources,RegionType,RegionID) returns the change or current density emSource assigned to the specified region of the specified model.

Examples

Find Current Density for Faces of 2-D Geometry

Create an electromagnetic model for magnetostatic analysis.

emagmodel = createpde("electromagnetic","magnetostatic");

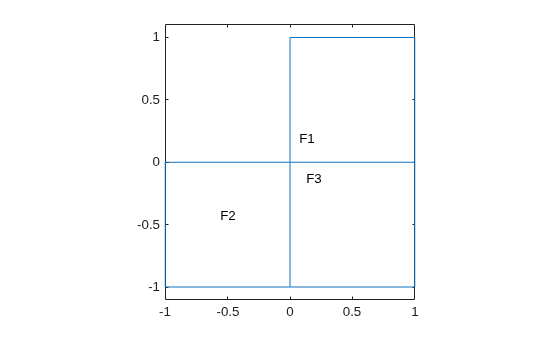

Include the L-shaped membrane geometry in the model and plot it with the face labels.

geometryFromEdges(emagmodel,@lshapeg);
pdegplot(emagmodel,"FaceLabels","on")
ylim([-1.1 1.1])
axis equal

Specify a different current density for each face.

electromagneticSource(emagmodel,"Face",1,"CurrentDensity",10);
electromagneticSource(emagmodel,"Face",2,"CurrentDensity",20);
electromagneticSource(emagmodel,"Face",3,"CurrentDensity",30);

Check the electromagnetic source specification for each face.

findElectromagneticSource(emagmodel.Sources,"Face",1)

ans =
  ElectromagneticSourceAssignment with properties:

        RegionType: 'Face'
          RegionID: 1
     ChargeDensity: []
    CurrentDensity: 10
     Magnetization: []

findElectromagneticSource(emagmodel.Sources,"Face",2)

ans =
  ElectromagneticSourceAssignment with properties:

        RegionType: 'Face'
          RegionID: 2
     ChargeDensity: []
    CurrentDensity: 20
     Magnetization: []

findElectromagneticSource(emagmodel.Sources,"Face",3)

ans =
  ElectromagneticSourceAssignment with properties:

        RegionType: 'Face'
          RegionID: 3
     ChargeDensity: []
    CurrentDensity: 30
     Magnetization: []

Find Charge Density for Cells of 3-D Geometry

Create and plot a geometry consisting of two nested spheres.

gm = multisphere([5 15]);
pdegplot(gm,"CellLabels","on","FaceAlpha",0.3)

Create an electromagnetic model for electrostatic analysis.

emagmodel = createpde("electromagnetic","electrostatic");

Include the geometry in the model.

emagmodel.Geometry = gm;

Specify the charge density for the inner sphere.

electromagneticSource(emagmodel,"Cell",1,"ChargeDensity",10);

Check the electromagnetic source specification for each cell.

findElectromagneticSource(emagmodel.Sources,"Cell",1)

ans =
  ElectromagneticSourceAssignment with properties:

        RegionType: 'Cell'
          RegionID: 1
     ChargeDensity: 10
    CurrentDensity: []
     Magnetization: []

findElectromagneticSource(emagmodel.Sources,"Cell",2)

ans =

  0x1 ElectromagneticSourceAssignment array with properties:

    RegionType
    RegionID
    ChargeDensity
    CurrentDensity
    Magnetization

Input Arguments

sources — Source in electromagnetic model

Sources property

Source in an electromagnetic model, specified as the Sources property of the model.

Example: findElectromagneticSource(emagmodel.Sources,"Face",1)

RegionType — Geometric region type

"Face" for a 2-D model | "Cell" for a 3-D model

Geometric region type, specified as "Face" for a 2-D model or "Cell" for a 3-D model.

Data Types: char | string

RegionID — Region ID

vector of positive integers

Region ID, specified as a vector of positive integers. Find the face or cell IDs by using pdegplot with the "FaceLabels" or "CellLabels" name-value argument set to "on".

Data Types: double

Output Arguments

emSource — Electromagnetic source assignment

ElectromagneticSourceAssignment object

Electromagnetic source assignment, returned as an ElectromagneticSourceAssignment object. For more information, see ElectromagneticSourceAssignment Properties.

Version History

Introduced in R2021a
