subtract

Boolean subtraction of 3-D geometries

Since R2025a

Syntax

g3 = subtract(g1,g2)

Description

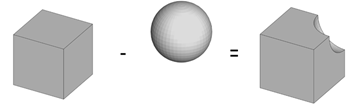

g3 = subtract(g1,g2) subtracts the 3-D geometry g2 from the 3-D geometry g1 and returns the combined geometry g3. If g2 is a vector of geometries, the function subtracts all 3-D geometries specified by g2 from the geometry g1.

Examples

Create Sphere with Cutout Piece

Cut out a quarter of a sphere by subtracting a cube from the sphere.

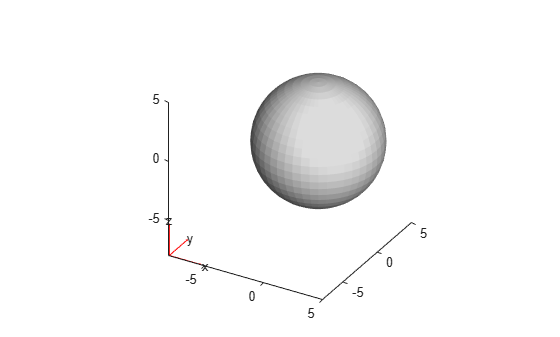

Create and plot a geometry of a sphere.

gsphere = multisphere(5);
pdegplot(gsphere)

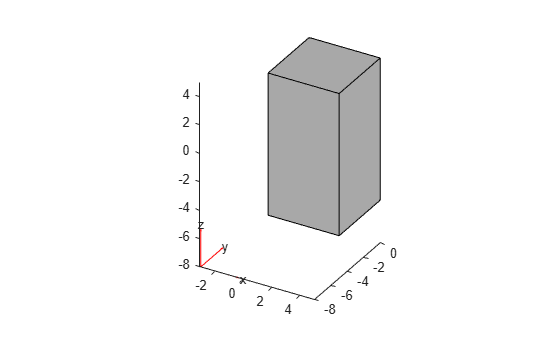

Create and plot a geometry of a cuboid.

gcube = multicuboid(5,5,10);
gcube = translate(gcube,[2.5 -2.5 -5]);
figure
pdegplot(gcube)

Convert both geometries to fegeometry objects.

gsphere = fegeometry(gsphere);
gcube = fegeometry(gcube);

Subtract the cuboid from the sphere by using the Boolean subtraction operation.

g = subtract(gsphere,gcube);

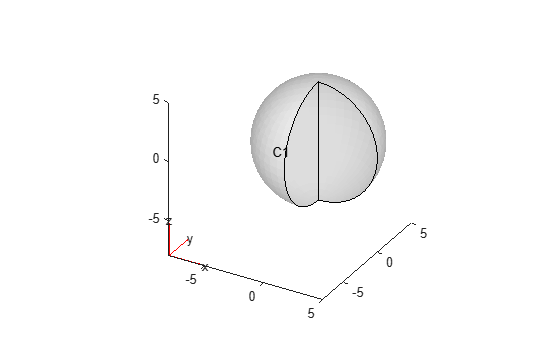

Plot the resulting geometry with cell labels.

figure
pdegplot(g,CellLabels="on",FaceAlpha=0.3)

Subtract Cube from Sphere

Subtract a cube from a larger sphere by using the Boolean subtraction operation.

Create and plot a geometry of a sphere.

gsphere = multisphere(5);
pdegplot(gsphere)

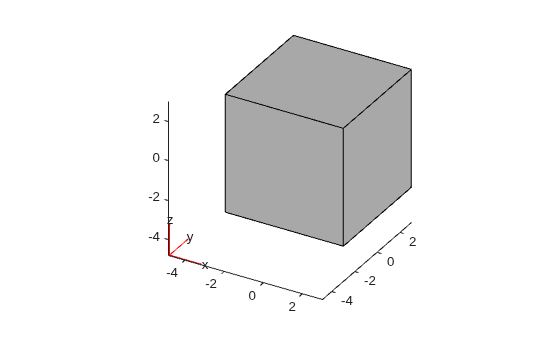

Create and plot a geometry of a cube.

gcube = multicuboid(6,6,6,Zoffset=-3);
figure
pdegplot(gcube)

Convert both geometries to fegeometry objects.

gsphere = fegeometry(gsphere);
gcube = fegeometry(gcube);

Subtract the cube from the sphere by using the Boolean subtraction operation.

g = subtract(gsphere,gcube);

Plot the resulting geometry with cell labels.

figure
pdegplot(g,CellLabels="on",FaceAlpha=0.3)

Subtract Multiple Geometries

Since R2026a

Cut out multiple cubes from a cylinder.

Create geometries representing a cylinder and a unit cube.

gmcyl = fegeometry(multicylinder(1,1));
gmcube = fegeometry(multicuboid(1,1,1));

Create a vector of geometries by rotating the cube by 30 and 60 degrees.

angle = [0 30 60];
for k = 1:numel(angle)
    gv(k) = rotate(gmcube,angle(k));
end

Subtract the resulting vector of geometries from the cylinder.

gm = subtract(gmcyl,gv);

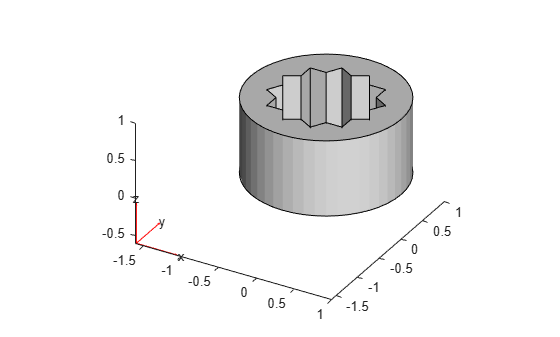

Plot the result.

pdegplot(gm)

Input Arguments

g1 — 3-D geometry

fegeometry object

3-D geometry, specified as an fegeometry object.

g2 — 3-D geometries to subtract

fegeometry object | vector of fegeometry objects

3-D geometries to subtract, specified as an fegeometry object or a vector of fegeometry objects.

Output Arguments

g3 — Combined geometry

fegeometry object

Combined geometry, returned as an fegeometry object.

Limitations

• subtract works only on 3-D geometries. Use decsg to subtract 2-D geometries.

Tips

• When creating a geometry, subtract uses the default threshold of 44 degrees for the dihedral angle between adjacent triangles. If the angle between the triangles exceeds the threshold, the edge becomes a topological (feature) edge separating two faces. If the angle does not exceed the threshold, subtract does not create a topological edge with two separate faces, unless the function can create the edge based on other criteria. Instead, subtract creates one face.

  To use a different feature angle value, create a triangulation object from the resulting geometry g3, and then convert the object back to an fegeometry object. Set the value of the FeatureAngle argument as a number between 10 and 90. The specified FeatureAngle value represents degrees.

  tr = triangulation(g3);
  g3 = fegeometry(tr,FeatureAngle=15)

  The triangulation function accepts only single-domain geometries, so g3 must have one cell.

Version History

Introduced in R2025a

R2026a: Subtract several geometries

The subtract function subtracts a vector of 3-D geometries from a 3-D geometry.
