rmholes
polyshape
에서 구멍 제거
설명
예제
다각형 구멍 채우기
구멍이 있는 다각형을 만듭니다.
t = 0.05:0.5:2*pi; x1 = cos(t); y1 = sin(t); x2 = 0.5*cos(t); y2 = 0.5*sin(t); polyin = polyshape({x1,x2},{y1,y2})
polyin = polyshape with properties: Vertices: [27x2 double] NumRegions: 1 NumHoles: 1

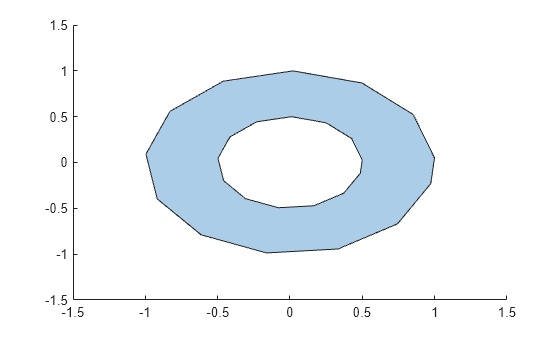

plot(polyin)
구멍이 제거된 새 다각형을 만듭니다.
polyout = rmholes(polyin)
polyout = polyshape with properties: Vertices: [13x2 double] NumRegions: 1 NumHoles: 0

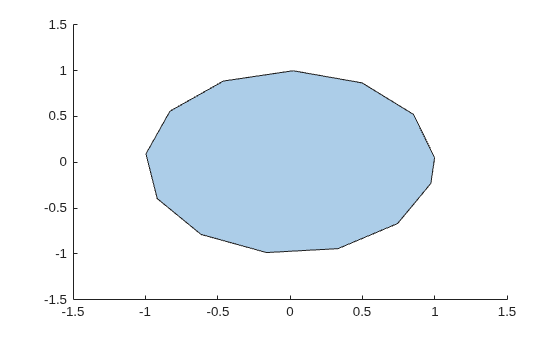

plot(polyout)
입력 인수
polyin
— 입력 polyshape
스칼라 | 벡터 | 행렬 | 다차원 배열
입력 polyshape
로, 스칼라, 벡터, 행렬 또는 다차원 배열로 지정됩니다.
데이터형: polyshape
확장 기능
C/C++ 코드 생성
MATLAB® Coder™를 사용하여 C 코드나 C++ 코드를 생성할 수 있습니다.
사용법 관련 참고 및 제한 사항:
코드 생성 시 동적 메모리 할당이 활성화되어 있어야 합니다.
버전 내역
R2017b에 개발됨
참고 항목
rmboundary
| ishole
| holes
| polyshape
