regions
polyshape
영역 액세스
설명
예제
다각형 영역으로 구성된 배열

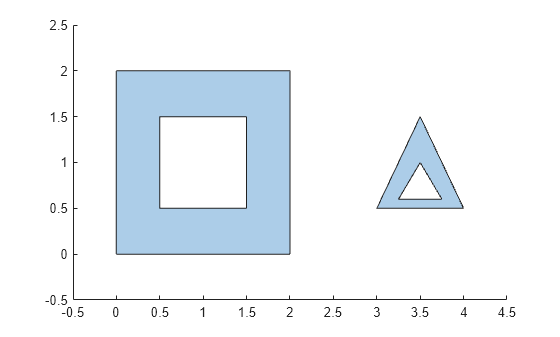

2개의 채워진 영역이 있는 다각형을 계산합니다. 그런 다음 다각형의 채워진 영역 하나를 요소로 갖는 벡터를 만듭니다.
P = [0 0; 0 2; 2 2; 2 0; NaN NaN; 0.5 0.5; 0.5 1.5; 1.5 1.5; 1.5 0.5; NaN NaN; 3 0.5; 3.5 1.5; 4 0.5; NaN NaN; 3.25 0.6; 3.75 0.6; 3.5 1]; polyin = polyshape(P); plot(polyin) xlim([-0.5 4.5]) ylim([-0.5 2.5])
polyout = regions(polyin)
polyout = 2x1 polyshape array with properties: Vertices NumRegions NumHoles
plot(polyout(1)) xlim([-0.5 4.5]) ylim([-0.5 2.5])
plot(polyout(2)) xlim([-0.5 4.5]) ylim([-0.5 2.5])
입력 인수
polyin
— 입력 polyshape
스칼라
입력 polyshape
로, 스칼라로 지정됩니다.
데이터형: polyshape
버전 내역
R2017b에 개발됨
참고 항목
boundary
| sortregions
| polyshape
| holes
