Number of polyshape boundaries
polyshape
N = numboundaries(polyin)
example
N = numboundaries(polyin) returns the number of boundaries of a polyshape object.
polyin
collapse all

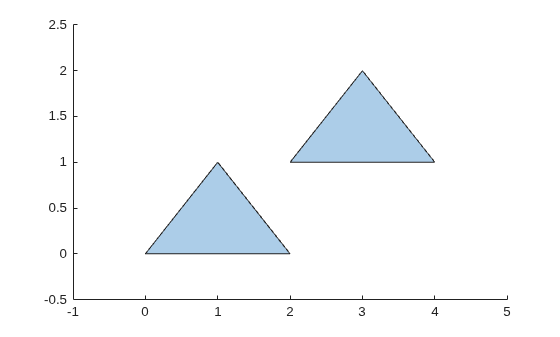

Create a polygon and determine its number of boundaries.
x1 = [0 1 2]; y1 = [0 1 0]; x2 = [2 3 4]; y2 = [1 2 1]; polyin = polyshape({x1,x2},{y1,y2}); plot(polyin)
N = 2
Input polyshape, specified as a scalar, vector, matrix, or multidimensional array.
Data Types: polyshape
Usage notes and limitations:
Dynamic memory allocation must be enabled for code generation.
Name-value pair must be compile time constant.
Introduced in R2017b
polyshape | numsides | boundary
