# quiver3m

Project 3-D quiver plot on `axesm`-based map

## Syntax

``quiver3m(lat,lon,z,dlat,dlon,dz)``
``quiver3m(lat,lon,z,dlat,dlon,dz,scale)``
``quiver3m(lat,lon,z,dlat,dlon,dz,LineSpec)``
``quiver3m(lat,lon,z,dlat,dlon,dz,LineSpec,scale)``
``quiver3m(lat,lon,z,dlat,dlon,dz,LineSpec,"filled")``
``quiver3m(lat,lon,z,dlat,dlon,dz,LineSpec,scale,"filled")``
``h = quiver3m(___)``

## Description

example

````quiver3m(lat,lon,z,dlat,dlon,dz)` plots a 3-D quiver plot on the current `axesm`-based map. The quiver plot has arrows with directional components `dlat`, `dlon`, and `dz` at the geographic coordinates specified by `lat` and `lon` with altitude `z`. For example, the first arrow originates from the point `lat(1)`, `lon(1)`, and `z(1)`, extends in the direction of the latitude axis according to `dlat(1)`, extends in the direction of the longitude axis according to `dlon(1)`, and extends in the direction of the z-axis according to `dz(1)`. By default, the function scales the arrow lengths so that they do not overlap.```
````quiver3m(lat,lon,z,dlat,dlon,dz,scale)` adjusts the length of arrows: When `scale` is a positive number, the function automatically adjusts the lengths of arrows so they do not overlap, then stretches them by a factor of `scale`. For example, a `scale` of `2` doubles the length of arrows, and a `scale` of `0.5` halves the length of arrows.When `scale` is `"off"` or `0`, such as `quiver3m(lat,lon,z,dlat,dlon,dz,"off")`, the function does not perform automatic scaling. ```
````quiver3m(lat,lon,z,dlat,dlon,dz,LineSpec)` specifies the line style, marker, and color. Markers appear at the points specified by `lat`, `lon`, and `z`. If you specify a marker using `LineSpec`, the function does not display arrowheads.```
````quiver3m(lat,lon,z,dlat,dlon,dz,LineSpec,scale)` adjusts the lengths of the arrows and specifies the line style, marker, and color.```
````quiver3m(lat,lon,z,dlat,dlon,dz,LineSpec,"filled")` fills the markers specified by `LineSpec`.```
````quiver3m(lat,lon,z,dlat,dlon,dz,LineSpec,scale,"filled")` adjusts the lengths of the arrows and fills the markers and fills the markers specified by `LineSpec`.```
````h = quiver3m(___)` returns the quiver plot, using any combination of input arguments from the previous syntaxes.```

## Examples

collapse all

Load sample data that represents air currents into the workspace, and select a subset of the data. Specify `lon` and `dz` by scaling the original data.

```load wind lat = y(13:19,13:19,1); lon = -x(13:19,13:19,1); z = z(13:19,13:19,1); dlat = v(13:19,13:19,1); dlon = u(13:19,13:19,1); dz = 500*w(13:19,13:19,1);```

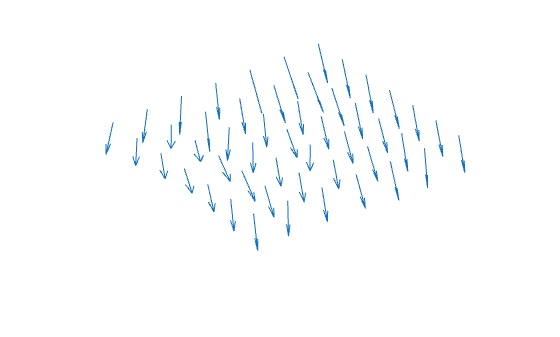

Create a map and display a 3-D quiver plot of the subset you selected. The matrices `lat`, `lon`, and `z` represent the location of the base of each arrow, and `dlat`, `dlon`, and `dz` represent the directional components of each arrow. By default, the `quiver3m` function shortens the arrows so they do not overlap.

```figure axesm miller axis off quiver3m(lat,lon,z,dlat,dlon,dz) view(3)```

## Input Arguments

collapse all

Latitude coordinates of the bases of the arrows, specified as a scalar, a vector, or a matrix.

The sizes of `lat`, `lon`, `z`, `dlat`, `dlon`, and `dz` must match.

Specify this argument using units that match the `AngleUnits` property of the `axesm`-based map.

Data Types: `double`

Longitude coordinates of the bases of the arrows, specified as a scalar, a vector, or a matrix.

The sizes of `lat`, `lon`, `z`, `dlat`, `dlon`, and `dz` must match.

Specify this argument using units that match the `AngleUnits` property of the `axesm`-based map.

Data Types: `double`

Altitudes of the bases of the arrows, specified as a scalar, a vector, or a matrix.

The sizes of `lat`, `lon`, `z`, `dlat`, `dlon`, and `dz` must match.

When the `MapProjection` property of the `axesm`-based map is `'globe'`, `z` is referenced to the ellipsoid.

The units of `z` must match the units of `dz`.

Data Types: `double`

Latitude components of the arrows, specified as a scalar, vector, or matrix.

The sizes of `lat`, `lon`, `z`, `dlat`, `dlon`, and `dz` must match.

Specify this argument using units that match the `AngleUnits` property of the `axesm`-based map.

Data Types: `single` | `double`

Longitude components of the arrows, specified as a scalar, vector, or matrix.

The sizes of `lat`, `lon`, `z`, `dlat`, `dlon`, and `dz` must match.

Specify this argument using units that match the `AngleUnits` property of the `axesm`-based map.

Data Types: `single` | `double`

Altitude components of the arrows, specified as a scalar, vector, or matrix.

The sizes of `lat`, `lon`, `z`, `dlat`, `dlon`, and `dz` must match.

When the `MapProjection` property of the `axesm`-based map is `'globe'`, `dz` is referenced to the ellipsoid.

The units of `dz` must match the units of `z`.

Data Types: `single` | `double`

Line style, marker, and color, specified as a character vector or string scalar containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color).

If you specify a marker using `LineSpec`, then the `quiver3m` function does not display arrowheads.

Example: `"--or"` is a red dashed line with circle markers

Line StyleDescriptionResulting Line
`"-"`Solid line

`"--"`Dashed line

`":"`Dotted line

`"-."`Dash-dotted line

MarkerDescriptionResulting Marker
`"o"`Circle

`"+"`Plus sign

`"*"`Asterisk

`"."`Point

`"x"`Cross

`"_"`Horizontal line

`"|"`Vertical line

`"square"`Square

`"diamond"`Diamond

`"^"`Upward-pointing triangle

`"v"`Downward-pointing triangle

`">"`Right-pointing triangle

`"<"`Left-pointing triangle

`"pentagram"`Pentagram

`"hexagram"`Hexagram

Color NameShort NameRGB TripletAppearance
`"red"``"r"``[1 0 0]`

`"green"``"g"``[0 1 0]`

`"blue"``"b"``[0 0 1]`

`"cyan"` `"c"``[0 1 1]`

`"magenta"``"m"``[1 0 1]`

`"yellow"``"y"``[1 1 0]`

`"black"``"k"``[0 0 0]`

`"white"``"w"``[1 1 1]`

Arrow scaling factor, specified as a nonnegative number or `"off"`. By default, the `quiver3m` function automatically scales the arrows so they do not overlap. The `quiver3m` function applies the specified scaling factor after it automatically scales the arrows.

To turn off automatic scaling, specify `scale` as `"off"` or `0`. When you specify either of these values, the function plots the arrows from (`lat`, `lon`, `z`) to (`lat`+`dlat`, `lon`+`dlon`, `z`+`dz`).

## Output Arguments

collapse all

Quiver plot, returned as a vector of `Line` objects.
