Find limits to contrast stretch image

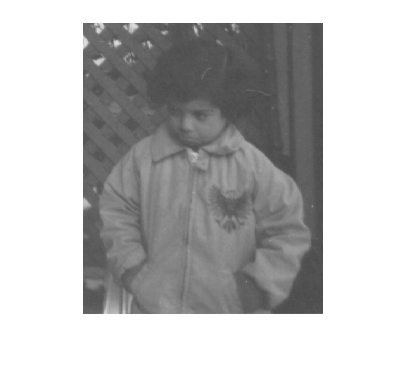

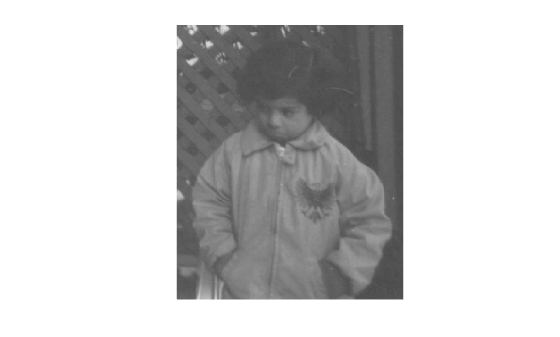

Read grayscale image into the workspace and display it.
I = imread('pout.tif'); figure imshow(I)

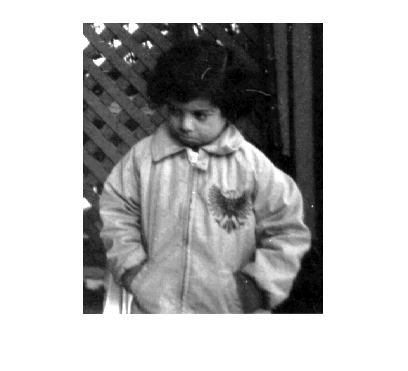

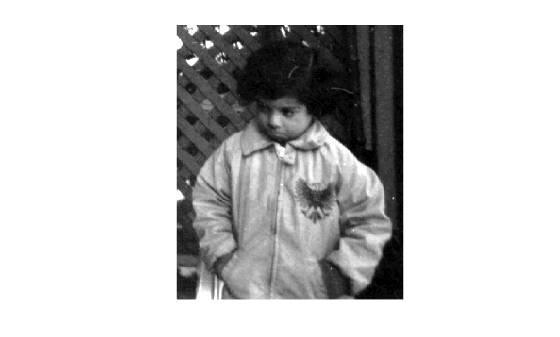

Adjust the contrast in the image using
stretchlim to set the limits, and display the result. The example uses the default limits
[0.01 0.99], saturating the upper 1% and the lower 1%.
J = imadjust(I,stretchlim(I),); figure imshow(J)
I— Image to be contrast stretched
Image to be contrast stretched, specified as a 2-D grayscale image or 2-D RGB image.
Tol— Fraction of image to saturate
[0.01 0.99](default) | numeric scalar | 2-element numeric vector
Fraction of the image to saturate, specified as a numeric scalar or
[Low_Fract High_Fract] in the range [0,
|Default||If you omit the |
|Too big||If |
lowhigh— Lower and upper limits for contrast stretching
Lower and upper limits for contrast stretching, returned as one of the following.
A 2-element numeric vector when
I is a
A 2-by-3 numeric matrix when
I is an RGB
image. The columns indicate the lower and upper limit for each
of the three color channels.
Usage notes and limitations:
stretchlim supports the generation of C
code (requires MATLAB®
Coder™). Note that if you choose the generic
MATLAB Host Computer
stretchlim generates code that uses a precompiled,
platform-specific shared library. Use of a shared library preserves performance optimizations
but limits the target platforms for which code can be generated. For more information, see Code Generation Using a Shared Library.
This function fully supports GPU arrays. For more information, see Image Processing on a GPU.
