광학 시스템 설계 및 분석
Optical Design and Simulation Library for Image Processing Toolbox™를 사용하여 광학 시스템을 설계하고 시뮬레이션합니다. 이 라이브러리를 사용하면 사용자 지정 광학 설계를 만들고, 광범위한 재료 라이브러리에서 벌크 유리 및 코팅 재료를 사용하고, 벌크 재료를 가져오고, 사용자 지정 광학 재료 및 코팅을 만들 수 있습니다. 라이브러리는 광학 설계를 2차원 및 3차원으로 시각화하는 시각화 툴을 제공합니다. 또한 ZMX 파일에서 시스템을 가져와서 기존 광학 설계와 통합할 수도 있습니다.
레이 트레이싱, 편광 분석 수행, 스폿 다이어그램 계산, 수차 분석, 렌즈 왜곡 분석, 필드 곡률 분석을 통해 광학 시스템을 평가할 수 있습니다. 그런 다음 결과를 시각화할 수 있습니다. 또한 Optimization Toolbox™에서 제공되는 최적화 툴을 사용하여 광학 시스템과 광학 코팅을 최적화할 수 있습니다.
광학 시스템 디자이너 앱은 광학 시스템 설계를 위한 대화형 인터페이스를 제공합니다. 이 앱을 사용하여 사용자 지정 광학 시스템을 설계하고, ZMX 파일에서 가져온 광학 시스템을 시뮬레이션하고, 추적된 광선, 스폿 다이어그램, 수차 분석, 왜곡 분석, 필드 곡률 분석 및 기타 분석을 대화형 방식으로 시각화할 수 있습니다.
Optical Design and Simulation Library for Image Processing Toolbox를 시작하려면 Get Started with Optical Design and Simulation 항목을 참조하십시오.
애드온 탐색기에서 Optical Design and Simulation Library for Image Processing Toolbox를 설치할 수 있습니다. 애드온 설치에 대한 자세한 내용은 애드온을 받고 관리하기를 참조하십시오.
앱
| 광학 시스템 디자이너 | Design and analyze optical systems (R2026a 이후) |
함수
도움말 항목
시작하기
- Get Started with Optical Design and Simulation
Use optical design and analysis tools to simulate and tune optical system performance. - Coordinate Systems in Optical Design
Understand coordinate systems to manipulate positions and orientation of optical systems and their components. - Create Field Points
Create field point representations of light sources for an optical system. - Load, Create, and Use Optical Materials
Use materials from optical coating and glass libraries, or create custom optical materials. - Select Optical Material for Optical System
This example shows how to select optical materials from the glass library and from optical materials in the workspace based on criteria such as refractive index, Abbe number, and supported wavelengths.
광학 시스템 분석
- Configure Ray Sampling in Optical System
Configure ray sampling surface and sampling grid for ray tracing in optical system. - Analyze Optical System Using Optical System Designer
This example shows how to analyze an optical system using the Optical System Designer app. - Optimize Photographic Zoom Lens Component Positions
This example demonstrates how to use numerical optimization techniques to optimize the positions of zoom groups and achieve a target focal length.
광학 코팅
- Apply Optical Coatings
Design, edit, and apply optical coating to optical surfaces. - Optimize Coating Design for Longpass Optical Filter
This example demonstrates how to design a 550 nm longpass optical filter, accounting for material properties and manufacturing limits using the Optimization Explorer (Optimization Toolbox) app.
추천 예제

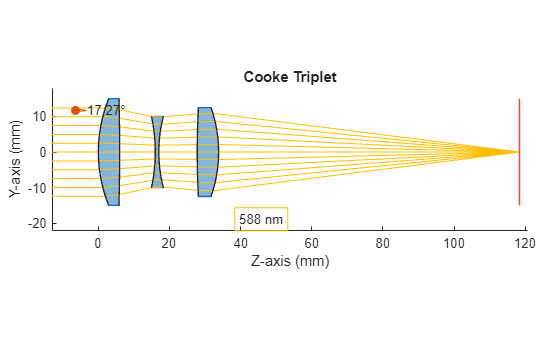

Design Cooke Triplet
Design a Cooke triplet lens system. This example requires the Optical Design and Simulation Library for Image Processing Toolbox™. You can install the Optical Design and Simulation Library for Image Processing Toolbox from Add-On Explorer. For more information about installing add-ons, see 애드온을 받고 관리하기.
Design Optical System Using Optical System Designer
Design an optical system using the Optical System Designer app. The Optical System Designer app enables you to design, modify, simulate, and analyze optical systems. Using the app, you can:
Optimize Monochromatic Camera Lens System for Type 2/3 Sensor
Demonstrates how to design and optimize a general purpose monochromatic 25 mm F/4 camera lens system for a 2/3'' sensor. A 25 mm focal length provides a moderate field of view, while an F/4 aperture helps balance light and depth of field. The monochromatic assumption simplifies the design for optical systems that use narrowband light sources such as narrowband LED.

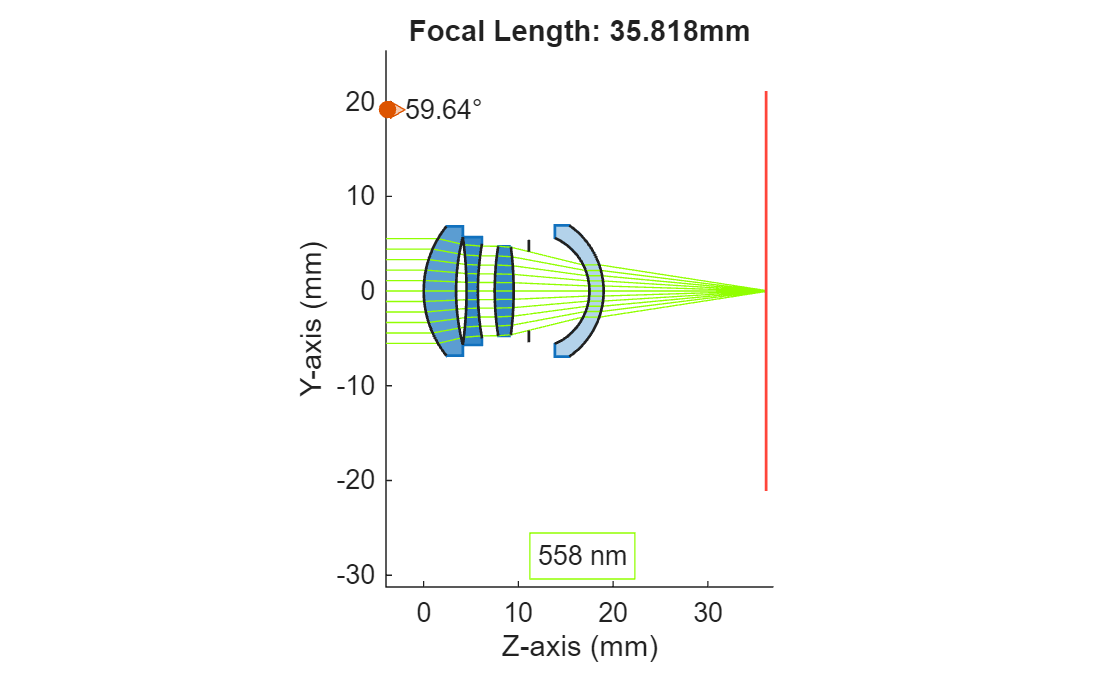

Modify Focal Length By Scaling Optical System
Modify the focal length of an optical system by appropriately scaling its individual components and gaps between components. Scale the optical system to adapt reference optical system designs to new focal length constraints, or to create reference designs which are normalized to a unit focal length.
Apply Configurations to Optical System Imported from ZMX File
To apply preset configurations from a ZMX file to the optical design stored in the ZMX file.
Create Lens Prescription Table for Optical System
Lens prescription tables are detailed specifications that describe the physical and optical properties of a lens or a lens system. These tables contain surface specifications such as the surface number and name, radius of curvature, lens thickness and spacing, and glass material properties such as the refractive index and Abbe number, which makes them crucial in the design and manufacturing of optical systems such as cameras, microscopes, and telescopes.
Perform Sensitivity and Yield Analysis of Optical Coating Using Monte Carlo
Demonstrates how to calculate the sensitivity of optical coating layers in a Bragg reflector. To estimate the expected manufacturing yield, you then implement Monte Carlo simulation that incorporates material-specific tolerances in layer thickness and refractive index. Monte Carlo (MC) simulation is a statistical method that estimates system performance by repeatedly evaluating the design with randomized variations in its parameters. Each MC trial represents one possible manufactured coating, created by sampling all layer thicknesses and refractive indices according to their specified tolerances. This approach quantifies how sensitive the coating’s optical performance is to real-world process variations, and predicts the proportion of manufactured parts, or the yield, expected to meet the required specifications.
