Estimate states of discrete-time or continuous-time linear system
Estimators
Use the Kalman Filter block to estimate states of a state-space plant model given process and measurement noise covariance data. The state-space model can be time-varying. A steady-state Kalman filter implementation is used if the state-space model and the noise covariance matrices are all time-invariant. A time-varying Kalman filter is used otherwise.
Kalman filter provides the optimal solution to the following continuous or discrete estimation problems:

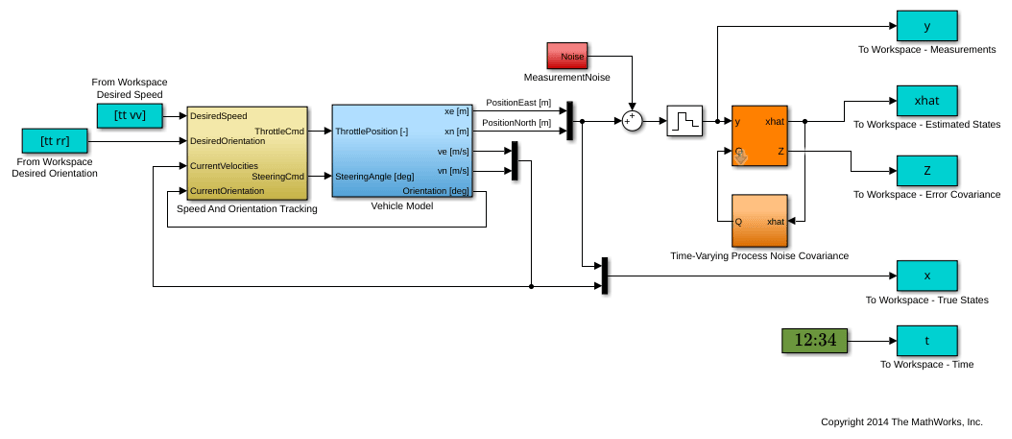

The Kalman Filter block differs from the kalman
command in the following ways:
When calling kalman(sys,...)
, sys
includes the G
and H
matrices.
Specifically, sys.B
has [B G]
and
sys.D
has [D H]
. When you provide a
LTI variable to the Kalman Filter block, it does not assume that
the LTI variable provided contains G
and
H
. They are optional and separate.
The kalman
command outputs [yhat;xhat]
by default. The block only outputs xhat
by default.
The following table summarizes the Kalman Filter block parameters, accessible via the Block Parameter dialog box.
Task | Parameters |
---|---|
Specify filter settings | |
Specify the system model | Model source in Model Parameters tab |
Specify initial state estimates | Source in Model Parameters tab |
Specify noise characteristics | In Model Parameters tab: |
Specify additional inports | In Options tab: |
Specify additional outports | In Options tab: |
Specify whether to estimate continuous-time or discrete-time states:
Discrete-Time
(Default) — Block estimates discrete-time
states
Continuous-Time
— Block estimates
continuous-time states
When the Kalman Filter block is in a model with synchronous
state control (see the State Control block), you
cannot select Continuous-time
.
Use the current estimator variant of the discrete-time Kalman filter. When not selected, the delayed estimator (variant) is used.
This option is available only when Time Domain is
Discrete-Time
.
Specify how the A, B, C, D matrices are provided to the block. Must be one of the following:
Dialog: LTI State-Space
Variable
— Use the values specified in the LTI
state-space variable. You must also specify the variable name in
Variable. The sample time of the model must match
the setting in the Time domain option, i.e. the model
must be discrete-time if the Time domain is
discrete-time.
Dialog: Individual A, B, C, D matrices
—
Specify values in the following block parameters:
A — Specify the A matrix. It must be real and square.
B — Specify the B matrix. It must be real and have as many rows as the A matrix. This option is available only when Add input port u is selected in the Options tab.
C — Specify the C matrix. It must be real and have as many columns as the A matrix.
D — Specify the D matrix. It must be real. It must have as many rows as the C matrix and as many columns as the B matrix. This option is available only when Add input port u is selected in the Options tab.
External
— Specify
the A, B, C, D matrices as input signals to the Kalman Filter block. If you
select this option, the block includes additional input ports A, B, C and D.
You must also specify the following in the block parameters:
Number of states
— Number of
states to be estimated, specified as a positive integer. The default
value is 2.
Number of inputs
— Number of
known inputs in the model, specified as a positive integer. The
default value is 2. This option is only available when Add
input port u is selected.
Number of outputs
— Number of
measured outputs in the model, specified as a positive integer. The
default value is 2.
Block sample time, specified as -1 or a positive scalar.
This option is available only when Time Domain is
Discrete Time
and Model Source
is Dialog: Individual A, B, C, D matrices
or
External
. The sample time is obtained from the LTI
state-space variable if the Model Source is Dialog: LTI State-Space
Variable
.
The default value is -1, which implies that the block inherits its sample time based on the context of the block within the model. All block input ports must have the same sample time.
Specify how to enter the initial state estimates and initial state estimation error covariance:
Dialog
— Specify the values directly in
the dialog box. You must also specify the following parameters:
Initial states x[0] — Specify the initial state estimate as a real scalar or vector. If you specify a scalar, all initial state estimates are set to this scalar. If you specify a vector, the length of the vector must match with the number of states in the model.
State estimation error covariance P[0] (only when time-varying Kalman filter is used) — Specify the initial state estimation error covariance P[0] for discrete-time Kalman filter or P(0) for continuous-time Kalman filter. Must be specified as one of the following:
Real nonnegative scalar. P is an Ns-by-Ns diagonal matrix with the scalar on the diagonals. Ns is the number of states in the model.
Vector of real nonnegative scalars. P is an Ns-by-Ns diagonal matrix with the elements of the vector on the diagonals of P.
Ns-by-Ns positive semi-definite matrix.
External
— Inherit the values from input
ports. The block includes an additional input port X0. A second additional
input port P0 is added when time-varying Kalman filter is used. X0 and P0
must satisfy the same conditions described previously when you specify them
in the dialog box.
Specify whether to use the pre-identified Kalman Gain contained in the state-space plant model. This option is available only when:
Model Source is Dialog: LTI State-Space
Variable
and Variable is an
identified state-space model (idss
) with a nonzero K
matrix.
Time Invariant Q, Time Invariant R and Time Invariant N options are selected.
If the Use G and H matrices (default G=I and H=0) option is selected, Time Invariant G and Time Invariant H options must also be selected.
Specify whether to use non-default values for the G and H matrices. If you select this option, you must specify:
G — Specify the G matrix. It must be a real matrix with as many rows as the A matrix. The default value is 1.
Time-invariant G — Specify if the G matrix is time invariant. If you unselect this option, the block includes an additional input port G.
H — Specify the H matrix. It must be a real matrix with as many rows as the C matrix and as many columns as the G matrix. The default value is 0.
Time-invariant H — Specify if the H matrix is time invariant. If you unselect this option, the block includes an additional input port G.
Number of process noise inputs — Specify the number of process noise inputs in the model. The default value is 1.
This option is available only when Time-invariant G and Time-invariant H are cleared. Otherwise, this information is inferred from the G or H matrix.
Process noise covariance matrix, specified as one of the following:
Real nonnegative scalar. Q is an Nw-by-Nw diagonal matrix with the scalar on the diagonals. Nw is the number of process noise inputs in the model.
Vector of real nonnegative scalars. Q is an Nw-by-Nw diagonal matrix with the elements of the vector on the diagonals of Q.
Nw-by-Nw positive semi-definite matrix.
Specify if the Q matrix is time invariant. If you unselect this option, the block includes an additional input port Q.
Measurement noise covariance matrix, specified as one of the following:
Real positive scalar. R is an Ny-by-Ny diagonal matrix with the scalar on the diagonals. Ny is the number of measured outputs in the model.
Vector of real positive scalars. R is an Ny-by-Ny diagonal matrix with the elements of the vector on the diagonals of R.
Ny-by-Ny positive-definite matrix.
Specify if the R matrix is time invariant. If you unselect this option, the block includes an additional input port R.
Process and measurement noise cross-covariance matrix. Specify it as a Nw-by-Ny matrix. The matrix [Q N; N^{T} R] must be positive definite.
Specify if the N matrix is time invariant. If you unselect this option, the block includes an additional input port N.
Select this option if your model contains known inputs u(t)
or
u[k]
. The option is selected by default. Unselecting this
option removes the input port u
from the block and removes the
B, D and Number of
inputs parameters from the block dialog box.
Select this option if you want to control the measurement updates. The block
includes an additional inport Enable
. The
Enable
input port takes a scalar signal. This option is
cleared by default.
By default the block does measurement updates at each time step to improve the state and output estimates and $$\widehat{y}$$ based on measured outputs. The measurement update is skipped for the current sample time when the signal in the Enable port is 0. Concretely, the equation for state estimates become $$\dot{\widehat{x}}(t)=A(t)\widehat{x}(t)+B(t)u(t)$$ for continuous-time Kalman filter and $$\widehat{x}[n+1|n]=A[n]\widehat{x}[n|n-1]+B[n]u[n]$$ for discrete-time.
Option to reset estimated states and parameter covariance matrix using specified initial values.
Suppose you reset the block at a time step, t
. If the block is
enabled at t
, the software uses the initial parameter values
specified either in the block dialog or the input ports P0 and X0 to estimate the
states. In other words, at t
, the block performs a time update
and if it is enabled, a measurement update after the reset. The block outputs these
updated estimates.
Specify one of the following:
None
(Default) — Estimated states and state estimation error covariance matrix P values
are not reset.
Rising
— Triggers a reset when the
control signal rises from a negative or zero value to a positive value. If
the initial value is negative, rising to zero triggers a reset.
Falling
— Triggers a reset when the
control signal falls from a positive or a zero value to a negative value. If
the initial value is positive, falling to zero triggers a reset.
Either
— Triggers a reset when the
control signal is either rising or falling.
Level
— Triggers a reset in either of
these cases:
The control signal is nonzero at the current time step.
The control signal changes from nonzero at the previous time step to zero at the current time step.
Level hold
— Triggers reset when the
control signal is nonzero at the current time step.
When you choose an option other than None
, a
Reset
input port is added to the block to provide the reset
control input signal.
Add $$\widehat{y}$$ output port to the block to output the estimated model outputs. The option is cleared by default.
Add P output port or Z output port to the block. The Z matrix is provided only
when Time Domain is Discrete Time
and the Use the current measurement y[n] to improve xhat[n] is
selected. Otherwise, the P matrix, as described in the Description section previously, is provided.
The option is cleared by default.
Port Name | Port Type (In/Out) | Description |
---|---|---|
u (Optional) | In | Known inputs, specified as a real scalar or vector. |
y | In | Measured outputs, specified as a real scalar or vector. |
xhat | Out | Estimated states, returned as a real scalar or vector. |
yhat (Optional) | Out | Estimated outputs, returned as a real scalar or vector. |
P or Z (Optional) | Out | State estimation error covariance, returned as a matrix. |
A (Optional) | In | A matrix, specified as a real matrix. |
B (Optional) | In | B matrix, specified as a real matrix. |
C (Optional) | In | C matrix, specified as a real matrix. |
D (Optional) | In | D matrix, specified as a real matrix. |
G (Optional) | In | G matrix, specified as a real matrix. |
H (Optional) | In | H matrix, specified as a real matrix. |
Q (Optional) | In | Q matrix, specified as a real scalar, vector or matrix. |
R (Optional) | In | R matrix, specified as a real scalar, vector or matrix. |
N (Optional) | In | N matrix, specified as a real matrix. |
P0 (Optional) | In | P matrix at initial time, specified as a real scalar, vector, or matrix. |
X0 (Optional) | In | Initial state estimates, specified as a real scalar or vector. |
Enable (Optional) | In | Control signal to enable measurement updates, specified as a real scalar. |
Reset (Optional) | In | Control signal to reset state estimates, specified as a real scalar. |
Double-precision floating point
Single-precision floating point (for discrete-time Kalman filter only)
All input ports except Enable and Reset must have the same data type (single or double).
Enable and Reset ports support
single
, double
,
int8
, uint8
,
int16
, uint16
,
int32
, uint32
, and boolean data
types.
The plant and noise data must satisfy:
(C,A) detectable
$$\overline{R}>0$$ and $$\overline{Q}-\overline{N}{\overline{R}}^{-1}{\overline{N}}^{T}\ge 0$$
$$(A-\overline{N}{\overline{R}}^{-1}C,\overline{Q}-\overline{N}{\overline{R}}^{-1}{\overline{N}}^{T})$$ has no uncontrollable mode on the imaginary axis (or unit circle in discrete time) with the notation
$$\begin{array}{l}\overline{Q}=GQ{G}^{T}\\ \overline{R}=R+HN+{N}^{T}{H}^{T}+HQ{H}^{T}\\ \overline{N}=G(Q{H}^{T}+N)\end{array}$$
The continuous-time Kalman filter cannot be used in Function-Call Subsystems or Triggered Subsystems.
[1] Franklin, G.F., J.D. Powell, and M.L. Workman, Digital Control of Dynamic Systems, Second Edition, Addison-Wesley, 1990.
[2] Lewis, F., Optimal Estimation, John Wiley & Sons, Inc, 1986.
