getTrend

Create trend information object to store offset, mean, and trend information for time-domain signals stored in iddata object

collapse all in page

Syntax

T = getTrend(data)
T = getTrend(data,0)
T = getTrend(data,1)

Description

T = getTrend(data) constructs a TrendInfo object to store offset, mean, or linear trend information for detrending or retrending data. You can assign specific offset and slope values to T. You can then apply the trend information in T to either data or to other iddata objects by using detrend or retrend.

example

T = getTrend(data,0) computes the means of input and output signals and stores them as the InputOffset and OutputOffset properties of T, respectively.

example

T = getTrend(data,1) computes a best-fit straight line for both input and output signals and stores them as properties of T. The following code represents the straight line:

ULine = Tr.InputOffset + (time-t0)*Tr.InputSlope
YLine = Tr.OutputOffset + (time-t0)*Tr.OutputSlope
Here, time is equal to Z.SamplingInstants and t0 is equal to data.Tstart.

example

Examples

collapse all

Open Live Script

Remove a specified offset from input and output signals.

Load SISO data containing vectors u2 and y2.

load dryer2

Create a data object with a sample time of 0.08 seconds and plot it.

data = iddata(y2,u2,0.08);
plot(data)

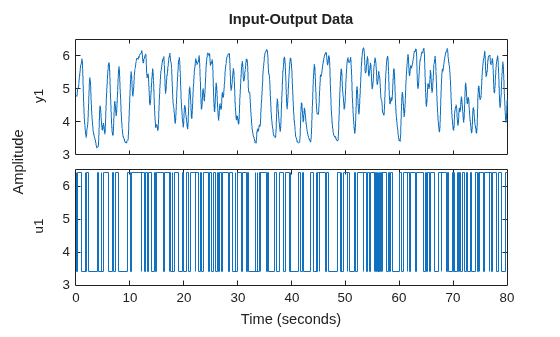

Figure contains 2 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents data. Axes object 2 with title u1 contains an object of type line. This object represents data.

The data has a nonzero mean value.

Store the data offset and trend information in a TrendInfo object.

T = getTrend(data);

Assign offset values to the TrendInfo object.

T.InputOffset = 5;
T.OutputOffset = 5;

Subtract the offsets from the data.

data_d = detrend(data,T);

Plot the detrended data on the same plot.

hold on
plot(data_d)

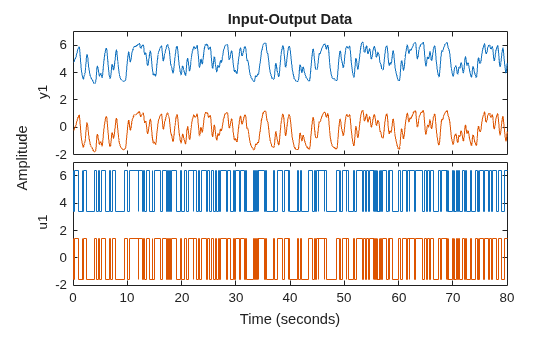

Figure contains 2 axes objects. Axes object 1 with title y1 contains 2 objects of type line. These objects represent data, data\_d. Axes object 2 with title u1 contains 2 objects of type line. These objects represent data, data\_d.

View the mean value removed from the data.

get(T)
ans = struct with fields:
        DataName: 'data'
     InputOffset: 5
    OutputOffset: 5
      InputSlope: 0
     OutputSlope: 0
Open Live Script

Compute input-output signal means, store them, and detrend the data.

Load SISO data containing vectors u2 and y2.

load dryer2

Create a data object with a sample time of 0.08 seconds.

data = iddata(y2,u2,0.08);

Compute the mean of the data.

T = getTrend(data,0);

Remove the mean from the data.

data_d = detrend(data,T);

Plot the original and detrended data on the same plot.

plot(data,data_d)

Figure contains 2 axes objects. Axes object 1 with title y1 contains 2 objects of type line. These objects represent data, data\_d. Axes object 2 with title u1 contains 2 objects of type line. These objects represent data, data\_d.

Open Live Script

Load and plot data that contains two input channels and one output channel.

load z7lintrend z7L
plot(z7L)

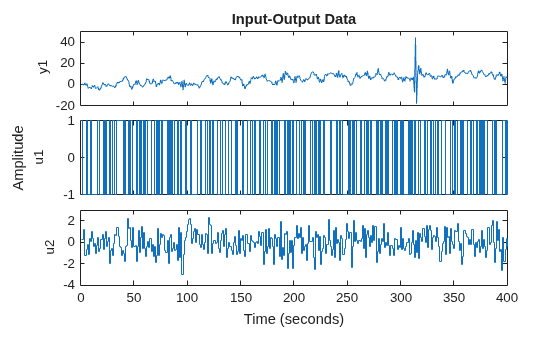

Figure contains 3 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents z7L. Axes object 2 with title u1 contains an object of type line. This object represents z7L. Axes object 3 with title u2 contains an object of type line. This object represents z7L.

The output channel of z7L contains a linear trend that is not present in the input channels. Compute the trend information.

T = getTrend(z7L,1)
Trend specifications for data "z7L" with 2 input(s), 1 output(s), 1 experiment(s):
        DataName: 'z7L'
     InputOffset: [-0.0764 -0.0683]
    OutputOffset: -0.2642
      InputSlope: [4.8338e-04 3.1642e-04]
     OutputSlope: 0.0268

Limit the trend information to the output channel only by setting the input trend values to 0.

T.InputOffset = [0 0];
T.InputSlope = [0 0];
T
Trend specifications for data "z7L" with 2 input(s), 1 output(s), 1 experiment(s):
        DataName: 'z7L'
     InputOffset: [0 0]
    OutputOffset: -0.2642
      InputSlope: [0 0]
     OutputSlope: 0.0268

Remove the linear trend from the data.

z7d = detrend(z7L,T);
plot(z7d)

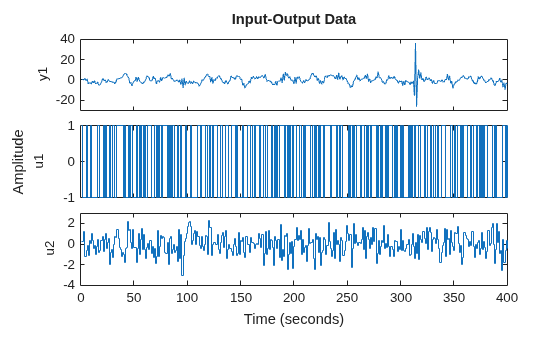

Figure contains 3 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents z7d. Axes object 2 with title u1 contains an object of type line. This object represents z7d. Axes object 3 with title u2 contains an object of type line. This object represents z7d.

The trend is no longer in the output data and the input data is unchanged.

Input Arguments

collapse all

Time-domain input-output data, specified as an iddata object containing one or more sets of time-domain signals. The iddata object can contain SISO, MIMO, or multiexperiment data. The signal sets can contain either input and output data or output data only.

Output Arguments

collapse all

Trend information, returned as a TrendInfo object.

Version History

Introduced in R2009a
