dataPlotOptions
Option set for idplot
when plotting input/output estimation data
contained in a timetable, numeric matrices, or an iddata
object
Since R2023a
Syntax
Description
creates the default
option set for plotting time-domain data. Use dot notation to customize the option
set, if needed.opt
= dataPlotOptions('time')
creates a default
option set for plotting frequency-domain data. Use dot notation to customize the
option set, if needed.opt
= dataPlotOptions('frequency')
initializes the plot options with the System Identification Toolbox™
preferences. This syntax can include any of the input argument
combinations in the previous syntaxes. Use this syntax to change a few plot options
but otherwise use your toolbox preferences.opt
= dataPlotOptions(___,'identpref')
Examples
Create Option Set for Plotting Time-Domain Data
Create an options set with default options for time-domain data.
opt = dataPlotOptions('time');
Specify plot properties, such as time units and grid. View the plot in minutes
opt.TimeUnits = 'minutes'; % Turn grid on opt.Grid = 'on';

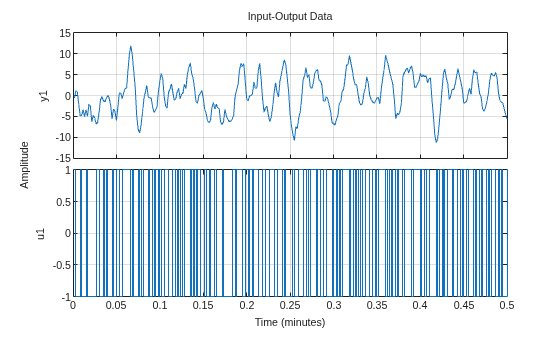

Create a plot using the specified options.
load iddata1 z1 h = idplot(z1, opt);
Change Orientation of Input-Output Data Axes
Generate data with two inputs and one output.
z = iddata(randn(100,1),rand(100,2));
Configure a time plot.
opt = iddataPlotOptions('time');
Plot the data.
h = idplot(z,opt);

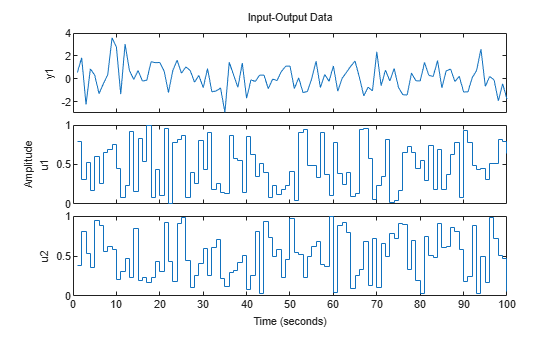

Change the orientation of the plots such that all inputs are plotted in one column, and all outputs are in a second column.
opt.Orientation = 'two-column';
h = idplot(z,opt);
Alternatively, use setoptions
.
setoptions(h,'Orientation','two-column')
You can also change the orientation by right-clicking the plot and choosing Orientation
in the context menu.
Create Option Set for Plotting Frequency-Domain Data
Create an option set with default options for frequency-domain data.
opt = dataPlotOptions('frequency');
Specify plot properties, such as phase visibility and frequency units.
opt.PhaseVisible = 'off'; opt.FreqUnits = 'Hz';

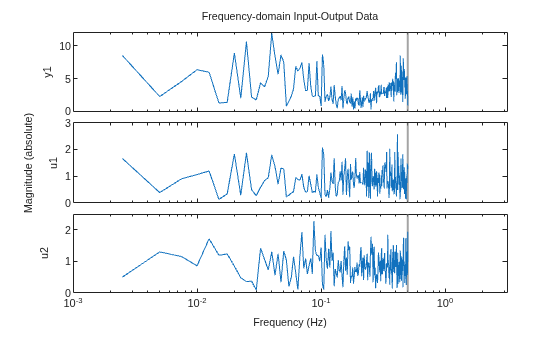

Create a plot with the specified options.
load iddata7 z7 zf = fft(z7); h = idplot(zf,opt);
Initialize a Plot Using Toolbox Preferences
opt = dataPlotOptions('time','identpref');
Output Arguments
opt
— Option set for idplot
dataPlotOptions
option set
Option set containing the specified options for idplot
. The structure has
the following fields:
Field | Description | ||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Title , XLabel ,
YLabel
| Text and style for axes labels and plot title, specified as a structure array with the following fields:
| ||||||||||||||||||||||||||||||
TickLabel | Tick label style, specified as a structure array with the following fields:
| ||||||||||||||||||||||||||||||
Grid | Show or hide the grid, specified as one of the
following values: Default:
| ||||||||||||||||||||||||||||||
GridColor | Color of the grid lines, specified as one of the
following values: vector of RGB values in the range
Default:
| ||||||||||||||||||||||||||||||
XlimMode ,
YlimMode | Axes limit modes, specified as one of the following values:
Default:
| ||||||||||||||||||||||||||||||
Xlim , Ylim
| Axes limits, specified as maximum and minimum values. Default: | ||||||||||||||||||||||||||||||
IOGrouping
| Grouping of input-output pairs, specified as one of
the following values: Default:
| ||||||||||||||||||||||||||||||
InputLabels ,
OutputLabels
| Input and output label styles on individual plot axes, specified as a structure array with the following fields:
| ||||||||||||||||||||||||||||||
InputVisible ,
OutputVisible | Visibility of input and output channels, specified
as one of the following values: Default:
| ||||||||||||||||||||||||||||||
Orientation | Orientation of the input and output data plots, specified as one of the following values:
Default:
| ||||||||||||||||||||||||||||||
For time-domain data plots only:
| |||||||||||||||||||||||||||||||
For frequency-domain data plots only:
|
Version History
Introduced in R2023aR2023a: dataPlotOptions
function replaces the iddataPlotOptions
method of
iddata
R2022b: Time-domain estimation data is accepted in the form of timetables and matrices
Most estimation, validation, analysis, and utility functions now accept time-domain
input/output data in the form of a single timetable that contains both input and output data
or a pair of matrices that contain the input and output data separately. These functions
continue to accept iddata
objects as a data source as well, for
both time-domain and frequency-domain data.
