# Tank (G-TL)

Pressurized tank with variable gas and thermal liquid volumes

**Library:**Simscape / Fluids / Fluid Network Interfaces / Tanks & Accumulators

## Description

The Tank (G-TL) block models the accumulation of mass and energy in a chamber with separate gas and thermal liquid volumes. The total fluid volume is fixed but the individual gas and thermal liquid volumes are free to vary. Two gas ports allow for gas flow and a variable number of thermal liquid ports, ranging from one to three, allow for thermal liquid flow. The thermal liquid ports can be at different elevations.

**Tank Inlets and Inlet Heights ( y)**

The tank is pressurized but the pressurization is not fixed. It changes during simulation with the pressure in the gas volume. It rises when the pressure of the gas volume rises and it falls when the pressure of the gas volume falls. The thermal liquid volume is assumed to be at equilibrium with the gas volume and its pressure is therefore the same as that of the gas.

The fluid volumes can exchange energy with other fluid components and with the environment but not with each other. The fluid volumes behave as if they were isolated from each other by an insulated membrane. Energy exchanges with other components occur through gas or thermal liquid ports, while exchanges with the environment occur, strictly in the form of heat, through thermal ports.

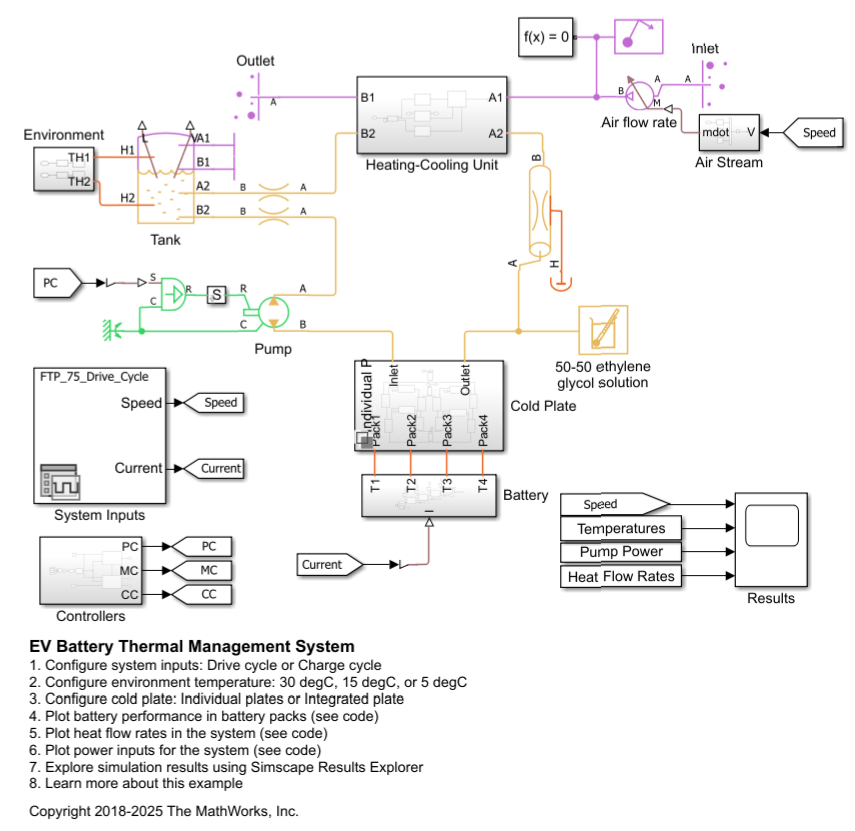

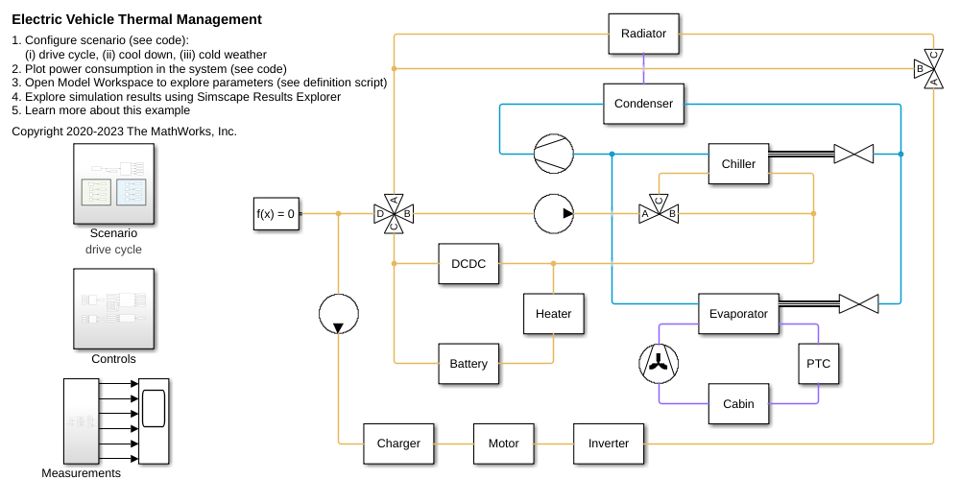

Use this block to model components such as drain tanks, in which water condensed from a compressed gas system is trapped at the bottom by gravity and expelled through a drain outlet. Note, however, that neither gas nor thermal liquid domains capture the effects of phase change—and therefore that this block cannot capture the effects of condensation.

### Inlet Variants

The number of thermal liquid ports depends on the block variant that is active. To
view or change the active variant, use the **Modeling
option** parameter. The `One inlet`

variant
exposes thermal liquid port **A2**, the ```
Two
inlets
```

variant adds port **B2**, and the
`Three inlets`

variant adds port
**C2**.

### Fluid Volumes

The total volume of the tank is equal to the sum of the gas and thermal liquid volumes that it contains:

$${V}_{\text{T}}={V}_{\text{L}}+{V}_{\text{G}},$$

where *V* is volume and T, L, and G stand for
*total*, *liquid*, and
*gas*. Because the total volume is fixed, the time rate of
change of the gas volume must be the reverse of that measured for the thermal liquid volume:

$${\dot{V}}_{\text{G}}=-{\dot{V}}_{\text{L}}.$$

The time rate of change of the thermal liquid volume is calculated by differentiating the expression:

$${M}_{\text{L}}={\rho}_{\text{L}}{V}_{\text{L}},$$

where *M* is mass and *ρ* is
density. The differentiation gives the mass flow rate into the thermal liquid volume:

$${\dot{M}}_{\text{L}}={V}_{\text{L}}{\dot{\rho}}_{\text{L}}+{\dot{V}}_{\text{L}}{\rho}_{\text{L}},$$

The time rate of change of the thermal liquid density is:

$${\dot{\rho}}_{\text{L}}=\frac{{\rho}_{\text{L}}}{{\beta}_{\text{L}}}{\dot{p}}_{\text{L}}-{\alpha}_{\text{L}}{\rho}_{\text{L}}{\dot{T}}_{\text{L}},$$

where:

*β*is the isothermal bulk modulus.*ɑ*is the isobaric thermal expansion coefficient.*p*is the fluid pressure.*T*is the fluid temperature.

Rearranging terms gives the rate of change of the thermal liquid volume and, by extension, of the gas volume:

$${\dot{V}}_{\text{G}}=-{\dot{V}}_{\text{L}}\approx {V}_{\text{L}}\left(\frac{{\dot{p}}_{\text{L}}}{{\beta}_{\text{L}}}-{\alpha}_{\text{L}}{\dot{T}}_{\text{L}}\right)-\frac{{\dot{M}}_{\text{L}}}{{\rho}_{\text{L}}}$$

### Mass Balance

The rate of mass accumulation in each fluid volume is equal to the net mass flow rate into that fluid volume. In the thermal liquid volume:

$${\dot{M}}_{\text{L}}={\displaystyle \sum _{i=\text{A2,B2,C2}}{\dot{m}}_{i}},$$

where *M*_{L} is the rate of
mass accumulation in the thermal liquid volume and $${\dot{m}}_{i}$$ are the individual mass flow rates into that volume through the
thermal liquid ports (**A2**, **B2**, and
**C2** in the case of the ```
Three
inlets
```

variant). The rate of mass accumulation contains
contributions from pressure, temperature, and volume change:

$${\dot{M}}_{\text{L}}={V}_{\text{L}}\left(\frac{{\rho}_{\text{L}}}{{\beta}_{\text{L}}}{\dot{p}}_{\text{G}}-{\alpha}_{\text{L}}{\rho}_{\text{L}}{\dot{T}}_{\text{L}}\right)+{\dot{V}}_{\text{L}}{\rho}_{\text{L}},$$

where the pressure of the thermal liquid volume is by definition equal to the pressure of the gas volume and the equation is therefore written in terms of the gas pressure. In the gas volume:

$${\dot{M}}_{\text{G}}={\displaystyle \sum _{i=\text{A1,B1}}{\dot{m}}_{i}},$$

where *M*_{G} is the rate of
mass accumulation in the gas volume and $${\dot{m}}_{i}$$ are the individual mass flow rates into that volume through the
gas ports (**A2** and **B2**). As with the thermal
liquid volume, the rate of mass accumulation contains contributions from pressure,
temperature, and volume change:

$${\dot{M}}_{\text{G}}={\frac{dM}{dp}|}_{\text{G}}{\dot{p}}_{\text{G}}+{\frac{dM}{dT}|}_{\text{G}}{\dot{T}}_{\text{G}}+{\dot{V}}_{\text{G}}{\rho}_{\text{G}},$$

where the pressure and temperature derivatives depend on the type
of gas specified in the Gas Properties (G) block.
The derivatives are defined in the equations section of the Translational Mechanical Converter
(G) block reference page. Replacing
*V*_{G} with the expression previously
obtained for this variable and combining the two expressions for
*M*_{G}:

$${\frac{dM}{dp}|}_{\text{G}}{\dot{p}}_{\text{G}}+{\frac{dM}{dT}|}_{\text{G}}{\dot{T}}_{\text{G}}+\left[{V}_{\text{L}}\left(\frac{{\dot{p}}_{\text{G}}}{{\beta}_{\text{L}}}-{\alpha}_{\text{L}}{\dot{T}}_{\text{L}}\right)-\frac{{\dot{M}}_{\text{L}}}{{\rho}_{\text{L}}}\right]{\rho}_{\text{G}}={\displaystyle \sum _{i=\text{A1,B1}}{\dot{m}}_{i}}.$$

Rearranging terms gives the final expression for the mass balance in the gas volume:

$${\dot{p}}_{\text{G}}\left({\frac{dM}{dp}|}_{\text{G}}+\frac{{\rho}_{\text{G}}{V}_{\text{L}}}{{\beta}_{\text{L}}}\right)+\left({\dot{T}}_{\text{G}}{\frac{dM}{dT}|}_{\text{G}}-{\dot{T}}_{\text{L}}{\rho}_{\text{G}}{V}_{\text{L}}{\alpha}_{\text{L}}\right)={\displaystyle \sum _{i=\text{A1,B1}}{\dot{m}}_{i}}+\frac{{\rho}_{\text{G}}}{{\rho}_{\text{L}}}{\displaystyle \sum _{i=\text{A2,B2,C2}}{\dot{m}}_{i}},$$

where $${\dot{M}}_{\text{L}}$$ has been replaced with the summation of the mass flow rates into the thermal liquid volume.

### Energy Balance

The rate of energy accumulation in each fluid volume is the sum of the energy flow rates through the fluid inlets, the heat flow rate through the corresponding thermal port, and the energy flow rate due to volume changes. For the gas volume:

$${\dot{p}}_{\text{G}}\left({\frac{dU}{dp}|}_{\text{G}}+{\rho}_{\text{G}}{h}_{\text{G}}\frac{{V}_{\text{L}}}{{\beta}_{\text{L}}}\right)+\left({\dot{T}}_{\text{G}}{\frac{dU}{dT}|}_{\text{G}}-{\dot{T}}_{\text{L}}{\rho}_{\text{G}}{h}_{\text{G}}{V}_{\text{L}}{\alpha}_{\text{L}}\right)={Q}_{\text{H1}}+{\displaystyle \sum _{i=\text{A1,B1}}{\varphi}_{i}}+\frac{{\rho}_{\text{G}}}{{\rho}_{\text{L}}}{h}_{\text{G}}{\displaystyle \sum _{i=\text{A2,B2,C2}}{\dot{m}}_{i}},$$

where:

*U*is the total energy of the fluid volume.*h*is the fluid enthalpy.*Q*is the heat flow rate through the thermal port.*ϕ*_{i}are the energy flow rates through the fluid inlets.

As before, the pressure and temperature derivatives depend on the type of gas specified in the Gas Properties (G) block. See the equations section of the Translational Mechanical Converter (G) block reference page for their definitions. For the thermal liquid volume:

$${\dot{p}}_{\text{L}}{\frac{dU}{dp}|}_{\text{L}}+{\dot{T}}_{\text{L}}{\frac{dU}{dT}|}_{\text{L}}={Q}_{\text{H2}}+{\displaystyle \sum _{i=\text{A2,B2,C2}}{\varphi}_{i}}+{\displaystyle \sum _{i=\text{A2,B2,C2}}\dot{m}g\left(y(i)-y\right)-{h}_{\text{L}}{\displaystyle \sum _{i=\text{A2,B2,C2}}{\dot{m}}_{i}}},$$

where the pressure derivative is:

$${\frac{dU}{dp}|}_{\text{L}}=-{T}_{\text{L}}{\alpha}_{\text{L}}{V}_{\text{L}},$$

and the temperature derivative is:

$${\frac{dU}{dT}|}_{\text{L}}={c}_{p,\text{L}}{\rho}_{\text{L}}{V}_{\text{L}},$$

in which *c*_{p} is the
isobaric specific heat of the thermal liquid inside the tank.

### Momentum Balance

Flow resistance due to friction or other causes is ignored in both fluid volumes. The effect of elevation on inlet pressure is also ignored, but only on the gas side. The gas inlet pressures are therefore equal to each other and to the internal pressure of the gas volume:

$${p}_{\text{A1}}={p}_{\text{B1}}={p}_{\text{G}}.$$

The thermal liquid inlet pressures are each a function of inlet depth. The
internal pressure of the thermal liquid volume is equal to that of the gas volume (*p*_{L} =
*p*_{G}). Including the dynamic pressures
(*p*_{i,dyn}) at the inlets:

$${p}_{i}+{p}_{i,\text{dyn}}={p}_{\text{G}}+{\rho}_{\text{L}}\left(y-{y}_{i}\right)g,$$

where *y* is the elevation of the thermal liquid
surface, *y*_{i} is the elevation of the
thermal liquid inlet, and *g* is the gravitational constant. The
term (*y* -
*y*_{i}) gives the depth of the thermal liquid inlet with respect to the
gas-thermal liquid boundary. The dynamic pressure at each thermal liquid inlet
depends on the direction of flow at that inlet:

$${p}_{i,\text{dyn}}=\{\begin{array}{cc}\frac{1}{2}{\rho}_{i}{v}_{i}^{2},& \text{if}{\dot{m}}_{i}0\\ 0,& \text{if}{\dot{m}}_{i}\ge 0\end{array}$$

### Variables

To set the priority and initial target values for the block variables prior to simulation, use
the **Initial Targets** section in the block dialog box or Property
Inspector. For more information, see Set Priority and Initial Target for Block Variables and Initial Conditions for Blocks with Finite Gas Volume.

Nominal values provide a way to specify the expected magnitude of a variable in a model.
Using system scaling based on nominal values increases the simulation robustness. Nominal
values can come from different sources, one of which is the **Nominal
Values** section in the block dialog box or Property Inspector. For more
information, see Modify Nominal Values for a Block Variable.

### Assumptions and Limitations

Fluid momentum is lost at the tank inlet due to the sudden expansion into the tank volume.

## Ports

### Output

### Conserving

## Parameters

## Extended Capabilities

## Version History

**Introduced in R2017b**
