Display the mesh as a patch on the current axes



show(mesh) displays the as a patch on the current axes. If there are no active axes, the function creates new axes.

show(mesh,ax) displays the object mesh as a patch on the axes ax.

ax = show(mesh) optionally outputs the handle to the axes where the mesh was plotted.


collapse all

Create an extendedObjectMesh object and translate the object.

Construct a cuboid mesh.

mesh = extendedObjectMesh('cuboid');

Translate the mesh by 5 units along the negative y axis.

mesh = translate(mesh,[0 -5 0]);

Visualize the mesh.

ax = show(mesh);
ax.YLim = [-6 0];

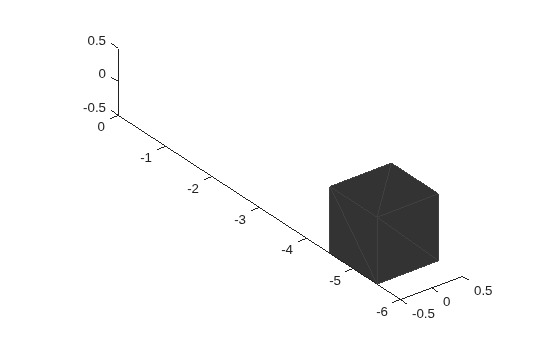

Figure contains an axes object. The axes object contains an object of type patch.

Input Arguments

collapse all

Extended object mesh, specified as an extendedObjectMesh object.

Current axes, specified as an axes object.

Introduced in R2020b
