filter

1-D digital filter of fi objects

collapse all in page

Syntax

y = filter(b,1,x)
[y,zf] = filter(b,1,x,zi)
y = filter(b,1,x,zi,dim)

Description

y = filter(b,1,x) filters the data in the fixed-point vector x using the filter described by the fixed-point vector b. The function returns the filtered data in the output fi object y.

filter always operates along the first non-singleton dimension. Thus, the filter operates along the first dimension for column vectors and nontrivial matrices and along the second dimension for row vectors.

example

[y,zf] = filter(b,1,x,zi) uses initial conditions zi for the filter delays. The length of zi must equal length(b)-1. The final conditions of the delays are returned in zf.

y = filter(b,1,x,zi,dim) acts along dimension dim. If you do not want to specify the vector of initial conditions, use [] for the input argument zi.

Note

This function is a 1-D digital filter for fi objects. To filter non-fi data, use the MATLAB® filter function.

Examples

collapse all

Open Live Script

Filter a high-frequency fixed-point sinusoid from a signal that contains both a low- and high-frequency fixed-point sinusoid.

w1 = 0.1*pi;
w2 = 0.6*pi;
n  = 0:999;
xd = sin(w1*n) + sin(w2*n);
x  = sfi(xd,12);
b  = ufi([0.1:0.1:1,1-0.1:-0.1:0.1]/4,10);
gd = (length(b)-1)/2;
y  = filter(b,1,x);

Plot the results, accommodating for the group delay of the filter.

plot(n(1:end-gd),x(1:end-gd))
hold on
plot(n(1:end-gd),y(gd+1:end),'r--')
axis([0 50 -2 2])
legend('Unfiltered Signal','Filtered Signal')
xlabel('Sample Index (n)')
ylabel('Signal Value')

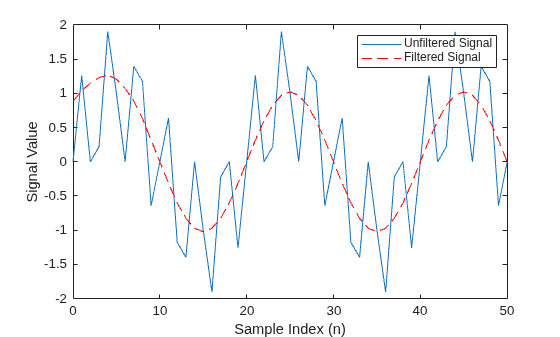

Figure contains an axes object. The axes object with xlabel Sample Index (n), ylabel Signal Value contains 2 objects of type line. These objects represent Unfiltered Signal, Filtered Signal.

The resulting plot shows both the unfiltered and filtered signals.

Input Arguments

collapse all

Filter coefficients, specified as a fixed-point vector.

Data Types: fi

Input data, specified as a fixed-point vector.

Data Types: fi

Initial conditions for filter delays, specified as a fixed-point vector. zi must be a fi object with the same data type as y and zf.

  • If zi is a vector, then its length must be length(b)-1.

  • If zi is a matrix or multidimensional array, then the size of the leading dimension must be length(b)-1. The size of each remaining dimension must match the size of the corresponding dimension of x.

If you do not specify a value for zi, or if you specify [], it defaults to a fixed-point array with a value of 0 and the appropriate numerictype and size.

Data Types: fi

Dimension along which to operate, specified as a positive integer scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fi

Output Arguments

collapse all

Filtered data, returned as a fixed-point fi vector, matrix, or multidimensional array.

Final conditions for filter delays, returned as a fixed-point fi vector, matrix, or multidimensional array.

Tips

  • The filter function only supports FIR filters. In the general filter representation b/a, the denominator a of an FIR filter is the scalar 1, which is the second input of this function.

  • The numerictype of b can be different than the numerictype of x.

  • If you want to specify initial conditions but do not know what numerictype to use, first try filtering your data without initial conditions. You can do so by specifying [] for the input zi. After performing the filtering operation, you have the numerictype of y and zf (if requested). Because the numerictype of zi must match that of y and zf, you now know the numerictype to use for the initial conditions.

Algorithms

collapse all

Filter length (L)

The filter length is length(b) or the number of filter coefficients specified in the fixed-point vector b.

Filter order (N)

The filter order is the number of states (delays) of the filter and is equal to L-1.

Direct-Form Transposed FIR Filter

The filter function uses a Direct-Form Transposed FIR implementation of this difference equation:

y(n)=b1*xn+b2*xn−1+...+bL*xn−N

where L is the Filter length (L) and N is the Filter order (N).

This diagram shows the direct-form transposed FIR filter structure used by the filter function.

fimath Propagation Rules

The filter function uses these rules regarding fimath behavior:

  • globalfimath is obeyed.

  • If any of the inputs has an attached fimath, then it is used for intermediate calculations.

  • If more than one input has an attached fimath, then the fimaths must be equal.

  • The output y is always associated with the default fimath.

  • If the input vector zi has an attached fimath, then the output vector zf retains this fimath.

Extended Capabilities

Version History

Introduced in R2010a
