## Time Base Partitions for ARIMA Model Estimation

When you fit a time series model to data, lagged terms in the model require initialization, usually with observations at the beginning of the sample. Also, to measure the quality of forecasts from the model, you must hold out data at the end of your sample from estimation. Therefore, before analyzing the data, partition the time base into three consecutive, disjoint intervals:

Three time base partitions for univariate autoregressive integrated moving average (ARIMA) models are the presample, estimation, and forecast periods.

**Presample period**— Contains data used to initialize lagged values in the model. An autoregressive integrated moving average model ARIMA(*p*,*D*,*q*)⨉(*p*_{s},*D*_{s},*q*_{s})_{s}model requires a presample period containing at least*p*+*D*+*p*_{s}+*s*observations (see property P of the`arima`

model object). For example, if you plan to fit an ARIMA(4,1,1) model, the conditional expected value of Δ*y*_{t}, given its history, contains Δ*y*_{t – 1}=*y*_{t – 1}–*y*_{t – 2}through Δ*y*_{t – 4}=*y*_{t – 4}–*y*_{t – 5}. The conditional expected value of Δ*y*_{6}is a function of*y*_{5}through*y*_{1}and, therefore, the likelihood contribution of Δ*y*_{6}requires those observations. Also, data does not exist for the likelihood contributions of Δ*y*_{1}through Δ*y*_{5}. Therefore, model estimation requires a presample period of at least five time points.**Estimation period**— Contains the observations to which the model is explicitly fit. The number of observations in the estimation sample is the*effective sample size*. For parameter identifiability, the effective sample size should be at least the number of parameters being estimated.**Forecast period**— Optional period during which forecasts are generated, known as the*forecast horizon*. This partition contains holdout data for model predictability validation.

Suppose *y*_{t} is a response series and *X*_{t} is a 3-D exogenous series. Consider fitting a SARIMAX(*p*,*D*,*q*)⨉(*p*_{s},*D*_{s},*q*_{s})_{s} model of *y*_{t} to the response data in the *T*-by-1 vector `y`

and the exogenous data in the *T*-by-3 matrix `X`

. Also, you want the forecast horizon to have length *K* (that is, you want to hold out *K* observations at the end of the sample to compare to the forecasts from the fitted model).

This figure shows the time base partitions for model estimation. In the figure, *J* = *p* + *D* + *p*_{s} + *s*.

This figure shows portions of the arrays that correspond to input arguments of the `estimate`

function of the `arima`

model.

`Y`

is the required input for specifying the response data to which the model is fit.`'Y0'`

is an optional name-value pair argument for specifying the presample response data.`Y0`

must have at least*J*rows. To initialize the model,`estimate`

uses only the latest*J*observations`Y0((end –`

.+ 1):end)`J`

`estimate`

also accepts presample innovations and conditional variances when you specify the '`E0'`

and`'V0'`

name-value pair arguments. These series are not included in the figures, but the same principles extend to them.`'X'`

is an optional name-value pair argument for specifying exogenous data for the regression component. By default,`estimate`

excludes a regression component from the model, regardless of the value of the regression coefficient`Beta`

in the`arima`

model template.

For a model without an exogenous regression component, if you do not specify `Y0`

, `estimate`

backcasts the model for the required presample observations. `estimate`

subsequently fits the model to the entire specified response data `Y`

. Although `estimate`

backcasts for the presample by default, you can extract the presample from the data and specify it using the `'Y0'`

name-value pair argument to ensure that `estimate`

initializes and fits the model to your specifications.

If you specify `'X'`

, the following conditions apply:

`estimate`

synchronizes`X`

and`y`

with respect to the last observation in the arrays (*T*–*K*in the previous figure), and applies only the required number of observations to the regression component. This action implies that`X`

can have more rows than`Y`

.If you do not specify

`'Y0'`

, you must supply at least*J*more exogenous observations than responses.`estimate`

uses the extra presample exogenous data to backcast the model for presample responses.If you specify

`'Y0'`

,`estimate`

uses only the latest exogenous observations required to fit the model (observations*J*+ 1 through*T*–*K*in the previous figure).`estimate`

ignores presample exogenous data.

If you plan to validate the predictive power of the fitted model, you must extract the forecast sample from your data set before estimation.

### Partition Time Series Data for Estimation

This example shows how to partition the time base of the monthly international airline passenger data set `Data_Airline`

to initialize estimation and assess the predictive performance of the estimated model.

**Load and Preprocess Data**

Load the data.

`load Data_Airline`

The variable `DataTimeTable`

is a timetable containing the time series `PSSG`

.

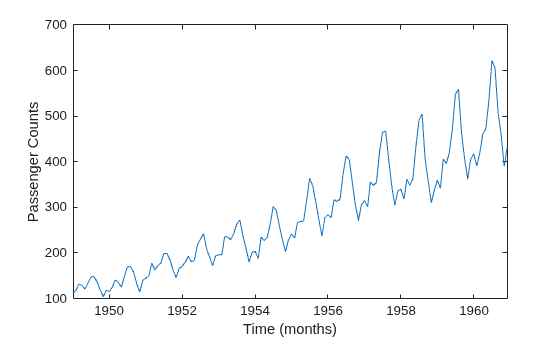

Plot the time series.

plot(DataTimeTable.Time,DataTable.PSSG) xlabel('Time (months)') ylabel('Passenger Counts')

The series exhibits seasonality and an exponential trend.

Determine whether the data has any missing values.

anymissing = sum(ismissing(DataTable))

`anymissing = `*1×2*
0 0

No missing observations are present.

Stabilize the series by applying the log transform.

StblTT = varfun(@log,DataTimeTable);

**Partition Time Base**

Consider a SARIMA$(0,1,1)\times (0,1,1{)}_{12}$ model for the log of the monthly passenger counts from 1949 through 1960. The model requires $\mathit{p}+\mathit{D}+{\mathit{p}}_{\mathit{s}}+\mathit{s}=0+1+0+12=13$ presample responses. An `arima`

model template for estimation stores the required number of presample responses in the property `P`

.

Create a SARIMA$(0,1,1)\times (0,1,1{)}_{12}$ model template for estimation. Specify that the model constant is `0`

. Verify the required number of presample observations by displaying the value of `P`

using dot notation.

Mdl = arima('Constant',0,'D',1,'MALags',1,'SMALags',12,... 'Seasonality',12); Mdl.P

ans = 13

Consider a forecast horizon of two years (24 months). Partition the response data into presample, estimation, and forecast sample variables.

fh = 24; % Forecast horizon T = size(StblTT,1); % Total sample size eT = T - Mdl.P - fh; % Effective sample size idxpre = 1:Mdl.P; idxest = (Mdl.P + 1):(T - fh); idxfor = (T - fh + 1):T; y0 = StblTT.log_PSSG(idxpre); % Presample responses y = StblTT.log_PSSG(idxest); % Estimation sample responses yf = StblTT.log_PSSG(idxfor); % Forecast sample responses

**Estimate Model**

Fit the model to the estimation sample. Specify the presample by using the `'Y0'`

name-value pair argument.

`EstMdl = estimate(Mdl,y,'Y0',y0);`

ARIMA(0,1,1) Model Seasonally Integrated with Seasonal MA(12) (Gaussian Distribution): Value StandardError TStatistic PValue _________ _____________ __________ __________ Constant 0 0 NaN NaN MA{1} -0.31781 0.087289 -3.6408 0.00027175 SMA{12} -0.56707 0.10111 -5.6083 2.0434e-08 Variance 0.0014446 0.00018295 7.8962 2.8763e-15

`EstMdl`

is a fully specified `arima`

model representing the estimated SARIMA model

$$(1-L)(1-{L}^{12}){y}_{t}=(1-0.18L)(1-0.18{L}^{12}){\epsilon}_{t},$$

where ${\epsilon}_{\mathit{t}}$ is Gaussian with a mean of 0 and a variance of 0.0019.

Because the constant is `0`

in the model template, `estimate`

treats it as an equality constraint during optimization. Therefore, inferences on the constant are irrelevant.

You can forecast the model using the `forecast`

function of `arima`

by specifying `EstMdl`

and the forecast horizon `fh`

. To initialize the model for forecasting, specify the estimation sample response data `y`

by using the `'Y0'`

name-value pair argument.
