주변기기 관리
R2026a타깃 하드웨어와 통신을 시작하기 전에 블록 파라미터 및 하드웨어 구성 파라미터를 적용합니다.
블록
 | Analog To Digital Converter | Convert analog signal on ADC input pin to digital signal (R2026a 이후) |
 | Digital Port Pins Read | Read logical states from group of pins/channels on a specified port (R2026a 이후) |
 | Digital Port Pins Write | Write logical states to pins on a port (R2026a 이후) |
 | Hardware Interrupt | Trigger function-call subsystems in response to hardware interrupt events (R2026a 이후) |
 | PWM Output | Generate Pulse Width Modulation (PWM) signals on the specified output pins (R2026a 이후) |
 | Three Phase PWM | Generates synchronized three-phase PWM signals (R2026a 이후) |
모델 설정
도움말 항목
- Install Embedded Coder Support Package for Renesas RA Microcontrollers
Follow the steps to install hardware support for modeling Renesas RA Microcontrollers.
- What is Sample Time and How Does it Work?
Concept of sample time and its role in simulations.
추천 예제
Getting Started with Renesas RA Microcontroller Boards
Use the Embedded Coder ® Support Package for Renesas® RA Microcontrollers to deploy and simulate a Simulink® model on hardware based on Renesas RA microcontrollers. With this support package, you can access hardware peripherals at run time using Simulink® blocks and configure those peripherals through the Renesas RA Smart Configurator tool.
Model-Based BLDC Motor Control on Renesas RA6T2 Microcontroller Using Simulink
Use the Embedded Coder Support Package for Renesas RA Microcontrollers to implement and deploy sensorless Brushless DC (BLDC) motor control on a Renesas RA6T2 Microcontroller using model-based design in Simulink. You will simulate, generate code, and run both open-loop and closed-loop control strategies, leveraging the Renesas Flexible Motor Control Kit and the RA Smart Configurator (RASC) add-on
Using Analog to Digital Converter Block with Renesas RA Microcontrollers
Digitize analog signals on Renesas® RA microcontrollers using the Analog to Digital Converter (ADC) block in Simulink® with Embedded Coder® Support Package for Renesas RA Microcontrollers. In this example, you measure the on-chip temperature sensor on a Renesas MCK-RA6T2 board and convert raw ADC values into temperature readings.

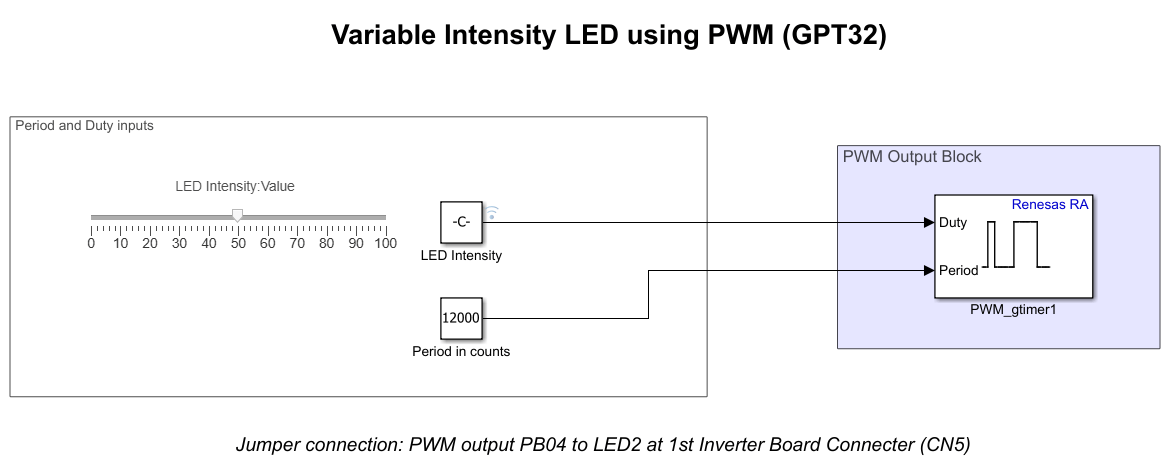

Control Onboard LED Brightness Using PWM Blocks on Renesas RA Microcontrollers
Control the brightness of an onboard LED on a Embedded Coder ® Support Package for Renesas® RA Microcontrollers by varying the duty cycle of a hardware PWM signal generated using the General PWM Timer (GPT). The example demonstrates how duty-cycle modulation directly affects LED intensity and how a Simulink model can be deployed to Renesas RA hardware for real-time execution.
