블록 및 구성 파라미터 설정을 사용하여 Renesas® RA 마이크로컨트롤러 구성하기

타깃 하드웨어와 통신을 시작하기 전에 블록 파라미터 및 하드웨어 구성 파라미터를 적용합니다.

블록

모두 확장

Analog To Digital ConverterConvert analog signal on ADC input pin to digital signal (R2026a 이후)
Digital Port Pins ReadRead logical states from group of pins/channels on a specified port (R2026a 이후)
Digital Port Pins WriteWrite logical states to pins on a port (R2026a 이후)
Hardware InterruptTrigger function-call subsystems in response to hardware interrupt events (R2026a 이후)
PWM OutputGenerate Pulse Width Modulation (PWM) signals on the specified output pins (R2026a 이후)
Three Phase PWMGenerates synchronized three-phase PWM signals (R2026a 이후)

모델 설정

모델 구성 파라미터

도움말 항목

추천 예제

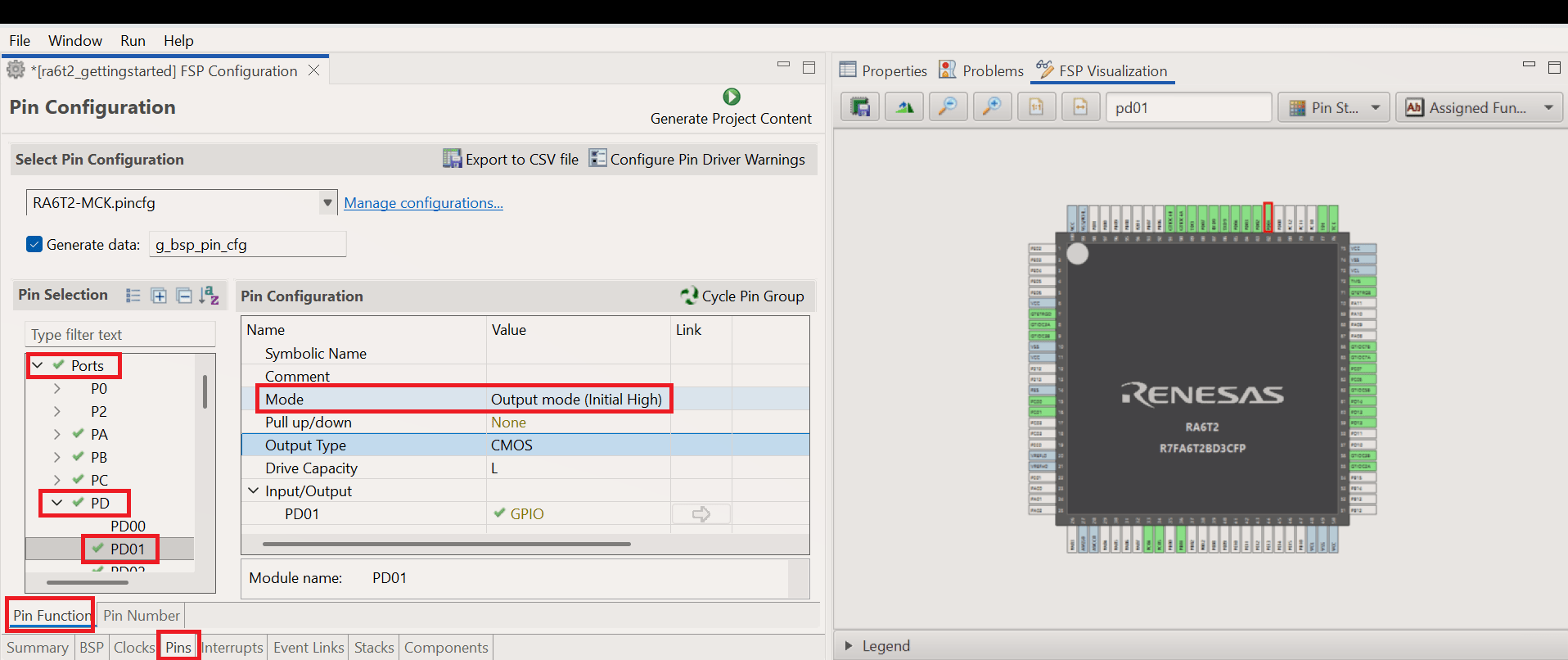

Getting Started with Renesas RA Microcontroller Boards

Getting Started with Renesas RA Microcontroller Boards

Use the Embedded Coder ® Support Package for Renesas® RA Microcontrollers to deploy and simulate a Simulink® model on hardware based on Renesas RA microcontrollers. With this support package, you can access hardware peripherals at run time using Simulink® blocks and configure those peripherals through the Renesas RA Smart Configurator tool.

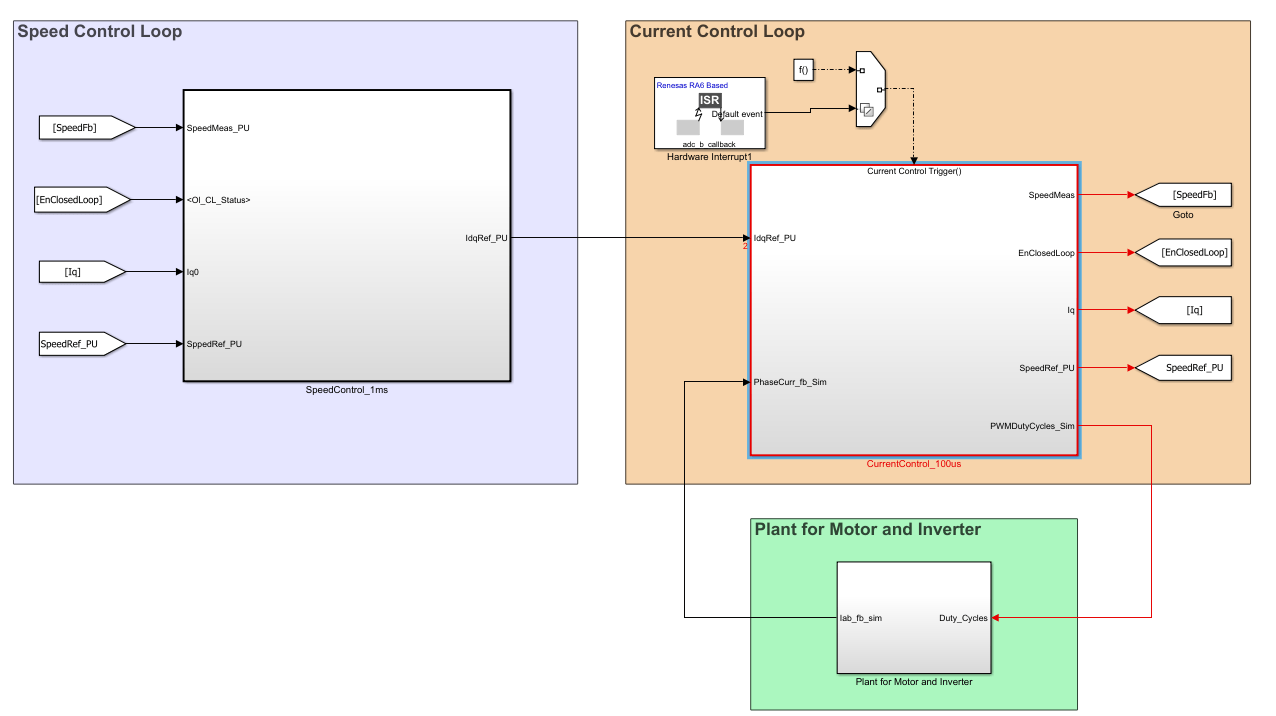

Model-Based BLDC Motor Control on Renesas RA6T2 Microcontroller Using Simulink

Model-Based BLDC Motor Control on Renesas RA6T2 Microcontroller Using Simulink

Use the Embedded Coder Support Package for Renesas RA Microcontrollers to implement and deploy sensorless Brushless DC (BLDC) motor control on a Renesas RA6T2 Microcontroller using model-based design in Simulink. You will simulate, generate code, and run both open-loop and closed-loop control strategies, leveraging the Renesas Flexible Motor Control Kit and the RA Smart Configurator (RASC) add-on

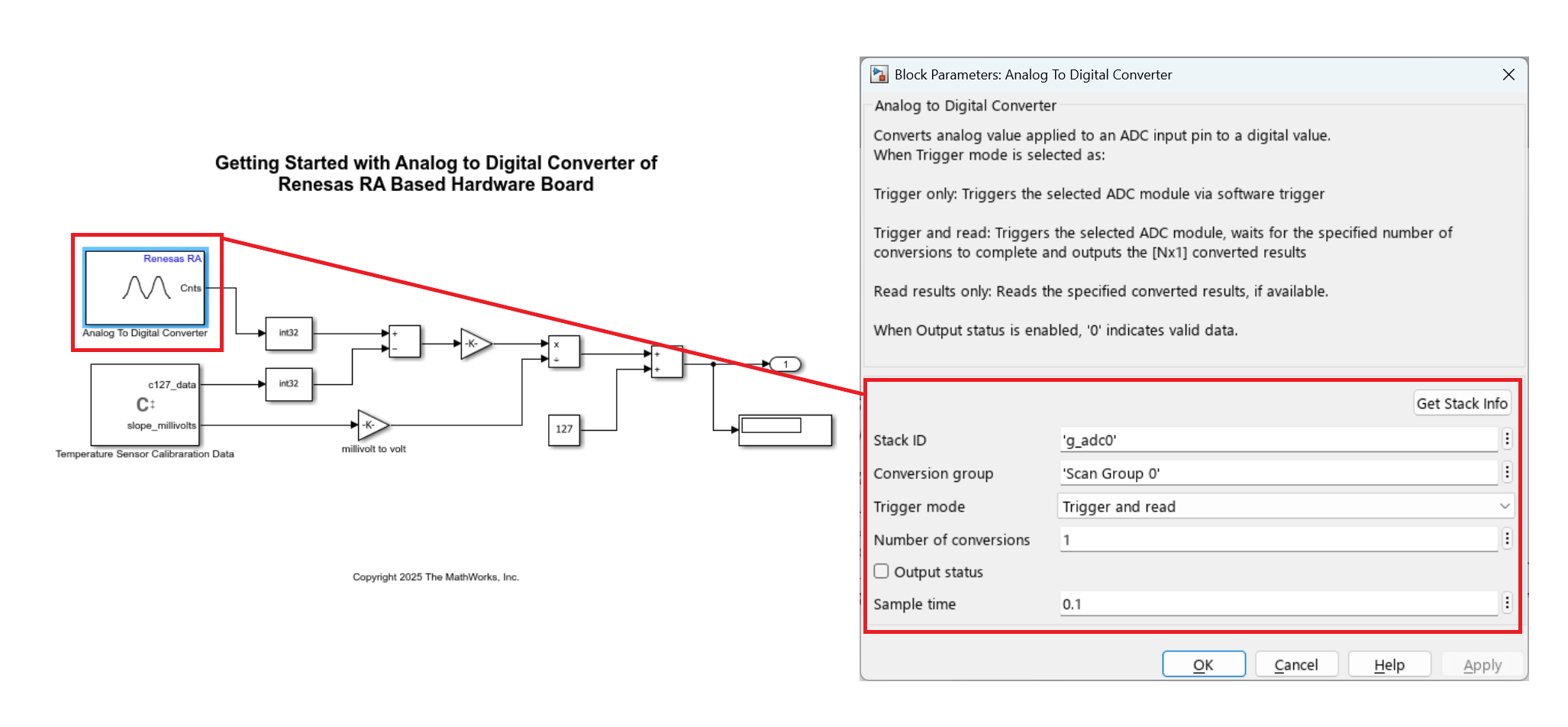

Using Analog to Digital Converter Block with Renesas RA Microcontrollers

Using Analog to Digital Converter Block with Renesas RA Microcontrollers

Digitize analog signals on Renesas® RA microcontrollers using the Analog to Digital Converter (ADC) block in Simulink® with Embedded Coder® Support Package for Renesas RA Microcontrollers. In this example, you measure the on-chip temperature sensor on a Renesas MCK-RA6T2 board and convert raw ADC values into temperature readings.

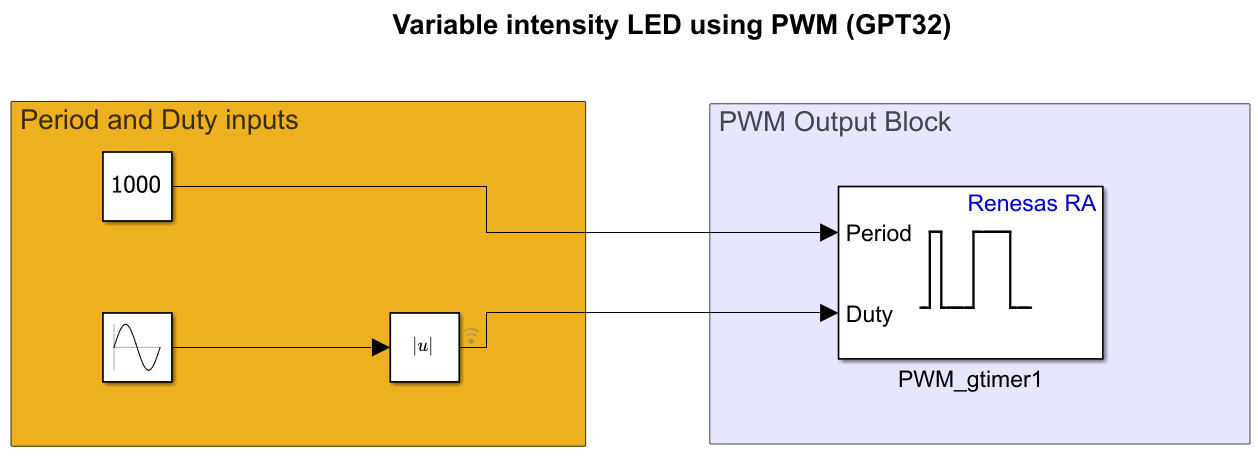

Control Onboard LED Brightness Using PWM Blocks on Renesas RA Microcontrollers

Control Onboard LED Brightness Using PWM Blocks on Renesas RA Microcontrollers

Control the brightness of an onboard LED on a Embedded Coder ® Support Package for Renesas® RA Microcontrollers by varying the duty cycle of a hardware PWM signal generated using the General PWM Timer (GPT). The example demonstrates how duty-cycle modulation directly affects LED intensity and how a Simulink model can be deployed to Renesas RA hardware for real-time execution.
