# dsp.BinaryFileWriter

Write data to binary files

## Description

The `dsp.BinaryFileWriter` System object™ writes multichannel signal data to a binary file. If the header is not empty, then the header precedes the signal data. The object specifies the file name and the structure of the header. The first time you write to the file, the object writes the header, followed by the data. On subsequent calls, the object writes the remaining data. If the header is empty, then no header is written.

The object can write floating-point data and integer data. To write character data and fixed-point data, see Write and Read Character Data and Write and Read Fixed-Point Data. The input data can be real or complex. When the data is complex, the object writes the data as interleaved real and imaginary components. For an example, see Write and Read Fixed-Point Data. By default, the writer uses the endianness of the host machine. To change the endianness, you can use the `swapbytes` function. For an example, see Change Endianness of Data Before Writing .

To write data to a binary file:

1. Create the `dsp.BinaryFileWriter` object and set its properties.

2. Call the object with arguments, as if it were a function.

## Creation

### Syntax

``writer = dsp.BinaryFileWriter``
``writer = dsp.BinaryFileWriter(fname)``
``writer = dsp.BinaryFileWriter(fname,Name,Value)``

### Description

````writer = dsp.BinaryFileWriter` creates a binary file writer object, `writer`, using the default properties.```

example

````writer = dsp.BinaryFileWriter(fname)` sets the `Filename` property to `fname`.```
````writer = dsp.BinaryFileWriter(fname,Name,Value)` with `Filename` set to `fname` and each property `Name` set to the specified `Value`. Unspecified properties have default values.Example: ```writer = dsp.BinaryFileWriter('myFilename.bin','HeaderStructure',struct('field1',1:10,'field2',single(1)));``````

## Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the `release` function unlocks them.

If a property is tunable, you can change its value at any time.

Name of the file to which the object writes the data, specified as a character vector or a string scalar. You must specify the full path for the file.

Header to write at the beginning of the file, specified as a structure. The structure can have an arbitrary number of fields. Each field of the structure must be a real matrix of a built-in type. For example, if `HeaderStructure` is set to `struct('field1',1:10,'field2',single(1))`, the object writes a header formed by 10 double-precision values, `(1:10)`, followed by one single precision value, `single(1)`. If you do not specify a header, the object sets this property to an empty structure, `struct([])`.

## Usage

### Syntax

``writer(data)``

### Description

example

````writer(data)` writes data to the binary file in a row-major format. Each call to the algorithm writes the elements of `data` at the end of the file. At the first call to the algorithm, the object writes the header first, followed by the data. If the header is empty, then no header is written.The input data can be real or complex. For complex data, real and imaginary parts are interleaved. For example, if the data equals `[1 2; 3 4]+1j*[5 6; 7 8]`, then the object writes the elements as `1 5 2 6 3 7 4 8`.```

### Input Arguments

expand all

Data to be written to the binary file in a row-major format, specified as a vector or a matrix. The object writes the data in row-major format. For example, if the input array is [`1 2 4 5; 8 7 9 2`], the object writes the data as [`1 2 4 5 8 7 9 2`].

The input data can be real or complex. For complex data, real and imaginary parts are interleaved. For example, if the data equals ```[1 2; 3 4]+1j*[5 6; 7 8]```, then the object writes the elements as [```1 5 2 6 3 7 4 8```].

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`
Complex Number Support: Yes

## Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named `obj`, use this syntax:

`release(obj)`

expand all

 `step` Run System object algorithm `release` Release resources and allow changes to System object property values and input characteristics `reset` Reset internal states of System object

## Examples

collapse all

Create a binary file with a custom header using the `dsp.BinaryFileWriter` System object. Write data to this file. Read the header and data using the `dsp.BinaryFileReader` System object.

Write the Data

Specify the file header as a structure with the following fields:

• DataType set to `double`.

• Complexity set to `false`.

• FrameSize (number of rows in the data matrix) set to 150.

• NumChannels (number of columns in the data matrix) set to 1.

Create a `dsp.BinaryFileWriter` object using this header. The object writes the header first, followed by the data, to `ex_file.bin`. The data is a noisy sine wave signal. View the data in a time scope.

```L = 150; header = struct('DataType','double',... 'Complexity',false,... 'FrameSize',L,... 'NumChannels',1); writer = dsp.BinaryFileWriter('ex_file.bin',... 'HeaderStructure',header); sine = dsp.SineWave('SamplesPerFrame',L); scopewriter = timescope('YLimits',[-1.5 1.5],... 'SampleRate',sine.SampleRate,... 'TimeSpanSource','Property',... 'TimeSpan',1); for i = 1:1000 data = sine() + 0.01*randn(L,1); writer(data); scopewriter(data) end ```

Release the writer so that the reader can access the data from this file.

```release(writer); ```

Read the data from the binary file, `ex_file.bin`, using the `dsp.BinaryFileReader` object. The file contains the header data followed by the actual data. The object reads the binary data until the end of file is reached. Specify the header to the reader using the `HeaderStructure` property of the reader object.

If the exact header is not known on the reader side, you must at least specify the prototype of the header. That is, the number of fields, and the data type, size, and complexity of each field in the prototype must match with the header data written to the binary file. When the `readHeader` function reads the data from the binary file, the function extracts the header information based on how the fields are specified in the header prototype. For example, a header field set to `'double'` on the writer side can be specified as any string of 6 characters on the reader side. The `readHeader` function reads this field as a string of 6 characters from the binary file, which matches with `'double'`.

```headerPrototype = struct('DataType','datype',... 'Complexity',false,... 'FrameSize',1,... 'NumChannels',10); reader = dsp.BinaryFileReader(... 'ex_file.bin',... 'HeaderStructure',headerPrototype); headerReader = readHeader(reader) ```
```headerReader = struct with fields: DataType: 'double' Complexity: 0 FrameSize: 150 NumChannels: 1 ```

The header data extracted by the `readHeader` function is assigned to the corresponding properties of the `reader` object.

```reader.IsDataComplex = headerReader.Complexity; reader.DataType = headerReader.DataType; reader.NumChannels = headerReader.NumChannels; reader.SamplesPerFrame = headerReader.FrameSize; ```

Initialize a scope on the reader side to view the extracted binary file data.

```scopereader = timescope('YLimits',[-1.5 1.5],... 'SampleRate',sine.SampleRate,... 'TimeSpanSource','Property',... 'TimeSpan',1); ```

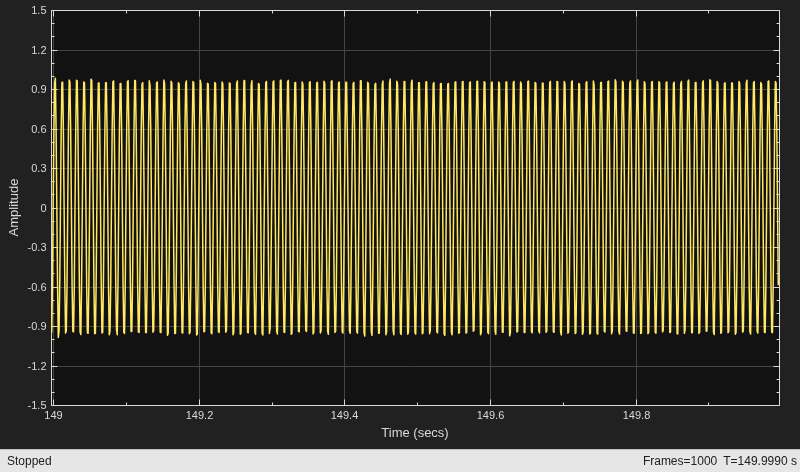

The data is read into a single channel (column) containing multiple frames, where each frame has 150 samples. View the data in a time scope.

```while ~isDone(reader) out = reader(); scopereader(out) end release(reader); release(scopereader); ```

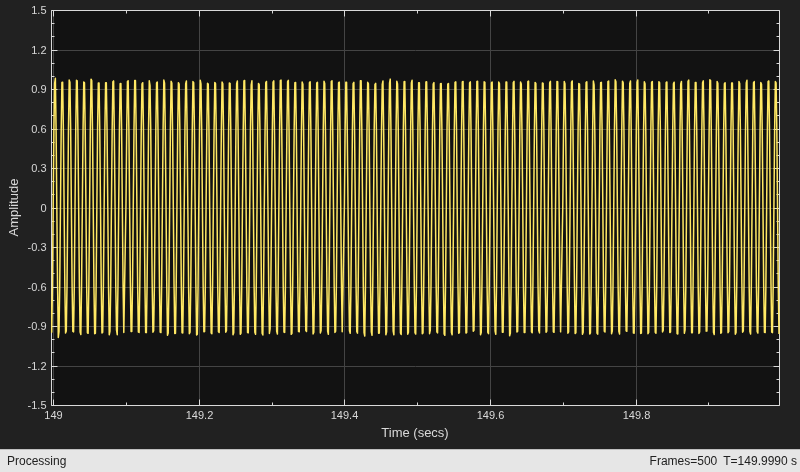

Set the reader to read data in frames of size 300. Verify that the data read matches the data written to the file.

```reader.SamplesPerFrame = 300; while ~isDone(reader) out = reader(); scopereader(out) end release(reader); ```

Even when the reader reads data with a different frame size, the output in both time scopes matches exactly.

Use a `dsp.BinaryFileReader` System object™ to read data from a binary file in a row-major format.

Write the Data

Write the matrix `A` to the binary file `Matdata.bin` using a `dsp.BinaryFileWriter` object. The object writes the specified header followed by the data.

The header has the following format:

• DataType set to `double`.

• Complexity set to `false`.

• FrameSize (number of rows in the data matrix) set to 3.

• NumChannels (number of columns in the data matrix) set to 4.

```A = [1 2 3 8; 4 5 6 10; 7 8 9 11]; header = struct('DataType','double',... 'Complexity',false,... 'FrameSize',3,... 'NumChannels',4); writer = dsp.BinaryFileWriter('Matdata.bin',... 'HeaderStructure',header); writer(A);```

Release the writer so that the reader can access the data.

`release(writer);`

Specify the header using the `HeaderStructure` property of the reader object. If the exact header is not known, you must at least specify the prototype of the header. That is, the number of fields, and the data type, size, and complexity of each field in the prototype must match with the header data written to the binary file. The `dsp.BinaryFileReader` object reads the binary file `Matdata.bin` until the end of file is reached. Configure the System object to read the data into 4 channels, with each channel containing 5 samples. Each loop of the iteration reads a channel (or frame) of data.

```headerPrototype = struct('DataType','double',... 'Complexity',false,... 'FrameSize',5,... 'NumChannels',4); reader = dsp.BinaryFileReader('Matdata.bin',... 'HeaderStructure',headerPrototype,... 'NumChannels',4,... 'SamplesPerFrame',5); while ~isDone(reader) out = reader(); display(out) end```
```out = 5×4 1 2 3 8 4 5 6 10 7 8 9 11 0 0 0 0 0 0 0 0 ```

Each frame of `out` contains frames of the matrix `A`, followed by zeros to complete the frame. The original matrix `A` contains 4 channels with 3 samples in each channel. The reader is configured to read data into 4 channels, with each channel containing 5 samples. Because there are not enough samples to complete the frame, the reader object appends zeros at the end of each frame.

Create a `dsp.BinaryFileWriter` object which writes to a file named `myfile.dat`. There is no header. The data is complex.

```writer = dsp.BinaryFileWriter('myfile.dat'); data = [1 2 3 4]+1i*[5 6 7 8]; writer(data); release(writer);```

Read the data using the `dsp.BinaryFileReader` System object™. To view data in the format it is written to the file, set the `IsDataComplex` property to `false`. The reader object reads the data as a sequence of numbers in a row major format. Set `SamplesPerFrame` to 1 and `NumChannels` to 8.

```reader = dsp.BinaryFileReader('myfile.dat','SamplesPerFrame',1,... 'NumChannels',8); s = struct([]); reader.HeaderStructure = s; dataRead = reader();```

You can see that the real and imaginary components of the original data are sample interleaved.

`display(dataRead);`
```dataRead = 1×8 1 5 2 6 3 7 4 8 ```

The `dsp.BinaryFileWriter` and `dsp.BinaryFileReader` System objects do not support writing and reading fixed-point data. As a workaround, you can write the stored integer portion of the `fi` data, read the data, and use this value to reconstruct the `fi` data.

Write the Fixed-Point Data

Create an `fi` object to represent 100 signed random numbers with a word length of 14 and a fraction length of 12. Write the stored integer portion of the `fi` object to the data file `myFile.dat`. The built-in data type is `int16`, which can be computed using `class(storeIntData)`.

```data = randn(100,1); fiDataWriter = fi(data,1,14,12); storeIntData = storedInteger(fiDataWriter); writer = dsp.BinaryFileWriter('myFile.dat'); writer(storeIntData);```

Release the writer so that the reader can access the data.

`release(writer);`

Specify the reader to read the stored integer data as `int16` data with 100 samples per data frame. The real-world value of the fixed-point number can be represented using ${2}^{\left(-fractionLength\right)\left(storedInteger\right)}$. If you know the signedness, word length, and fraction length of the fixed-point data, you can reconstruct the `fi` data using $fi\left(realValue,signedness,wordLength,fractionLength\right)$. In this example, the data is signed with a word length of 14 and a fraction length of 12.

```reader = dsp.BinaryFileReader('Filename','myFile.dat',... 'SamplesPerFrame',100,... 'DataType','int16'); data = reader(); fractionLength = 12; wordLength = 14; realValue = 2^(-fractionLength)*double(data); fiDataReader = fi(realValue,1,... wordLength,fractionLength);```

Verify that the writer data is the same as the reader data.

`isequal(fiDataWriter,fiDataReader)`
```ans = logical 1 ```

The `dsp.BinaryFileWriter` and `dsp.BinaryFileReader` System objects do not support writing and reading characters. As a workaround, cast character data to one of the built-in data types and write the integer data. After the reader reads the data, convert the data to a character using the `char` function.

Write the Character Data

Cast a character into `uint8` using the `cast` function. Write the cast data to the data file `myFile.dat`.

```data = 'binary_file'; castData = cast(data,'uint8'); writer = dsp.BinaryFileWriter('myFile.dat'); writer(castData);```

Release the writer so that the reader can access the data.

`release(writer);`

Read the `uint8` Data

Configure the reader to read the cast data as `uint8` data.

```reader = dsp.BinaryFileReader('myFile.dat',... 'DataType','uint8',... 'SamplesPerFrame',11); readerData = reader(); charData = char(readerData);```

Verify that the writer data is the same as the reader data. By default, the reader returns the data in a column-major format.

`strcmp(data,charData.')`
```ans = logical 1 ```

By default, the `dsp.BinaryFileWriter` System object™ uses the endianness of the host machine. To change the endianness, use the `swapbytes` function.

Write a numeric array into `myfile.dat` using the `dsp.BinaryFileWriter` object. Before writing the data, change the endianness of the data using the `swapbytes` function.

```data = [1 2 3 4 2 2]; swapData = swapbytes(data); writer = dsp.BinaryFileWriter('myfile.dat'); writer(swapData);```

## Version History

Introduced in R2016b
