Plot response of phase noise filter block
View Filter Response of Phase Noise Block
This example shows how to use the
plotPhaseNoiseFilter function to view the filter response of a Phase Noise block in a Simulink® model.
Load a Simulink model that contains a Phase Noise block. The
load_system (Simulink) command loads a model into memory without making its model window visible. The function will also work with models whose window is visible. The example,
slex_phasenoise, contains a
Phase Noise block.

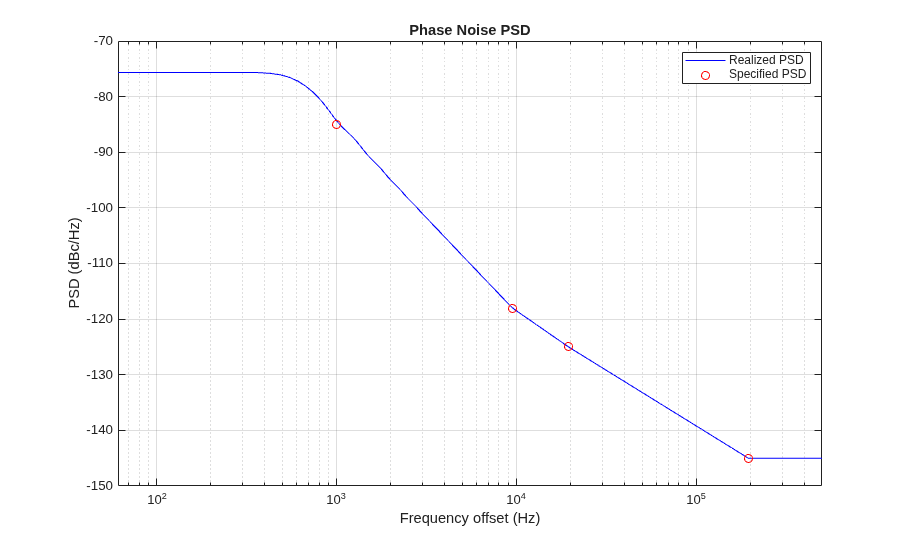

plotPhaseNoiseFilter function to view the filter response of the block Phase Noise.
