Assemble and Simulate AUTOSAR Software Components in Architecture Model

Design Components and Link Simulink Behavior Models in AUTOSAR Architecture

Create an AUTOSAR architecture model configured for the AUTOSAR Classic Platform. Add four Classic Component blocks.

arch = autosar.arch.createModel("AUTOSAR_SWArchitecture",platform="Classic");
sensor = addComponent(arch,"Sensor");
controller = addComponent(arch,"Controller");
speedometer = addComponent(arch,"Speedometer");
actuator = addComponent(arch,"Actuator");
addPort(arch,"Sender","ReportEmergencyBrake")

ans =
  ArchPort with properties:

              Name: 'ReportEmergencyBrake'
         Interface: [0×0 Simulink.dictionary.archdata.PortInterface]
    SimulinkHandle: 184.0002
            Parent: [1×1 autosar.arch.Model]
              Kind: 'Sender'
         Connected: 0

Link the AUTOSAR architecture to data dictionary speedometerInterfaces.sldd that is already used by the component models.

linkDictionary(arch,"speedometerInterfaces.sldd");

Link the Simulink models to the component blocks in the AUTOSAR architecture.

linkToModel(sensor,"autosar_sensorSWC");
linkToModel(controller,"autosar_controllerSWC");
linkToModel(speedometer,"autosar_speedometerSWC");
linkToModel(actuator,"autosar_actuatorSWC");

Connect the component blocks by using the connect function or by clicking the Smart Connect on the Modeling tab of the Simulink Toolstrip.

connect(arch,sensor,controller);
connect(arch,controller,actuator);
connect(arch,speedometer,actuator);
connect(arch,actuator,[]);
layout(arch);
save(arch);

Simulate the AUTOSAR software architecture.

sim("AUTOSAR_SWArchitecture.slx");

Simulink function callers mapped to AUTOSAR client ports with communication attribute ServerCallPoint set to Asynchronous are simulated as if they were synchronous, but they are asynchronous in the generated code and exported ARXML.

Generate and Inspect AUTOSAR-Compliant C Code and Composition ARXML

Generate code and export composition ARXML from the AUTOSAR architecture model, AUTOSAR_SWArchitecture by using the export function.

Click the Export Composition ARXML button to export ARXML from the AUTOSAR architecture model. The exporter generates ARXML from the AUTOSAR architecture model and AUTOSAR-compliant C code for each of the linked component models in the architecture model, and opens the AUTOSAR architecture export report.

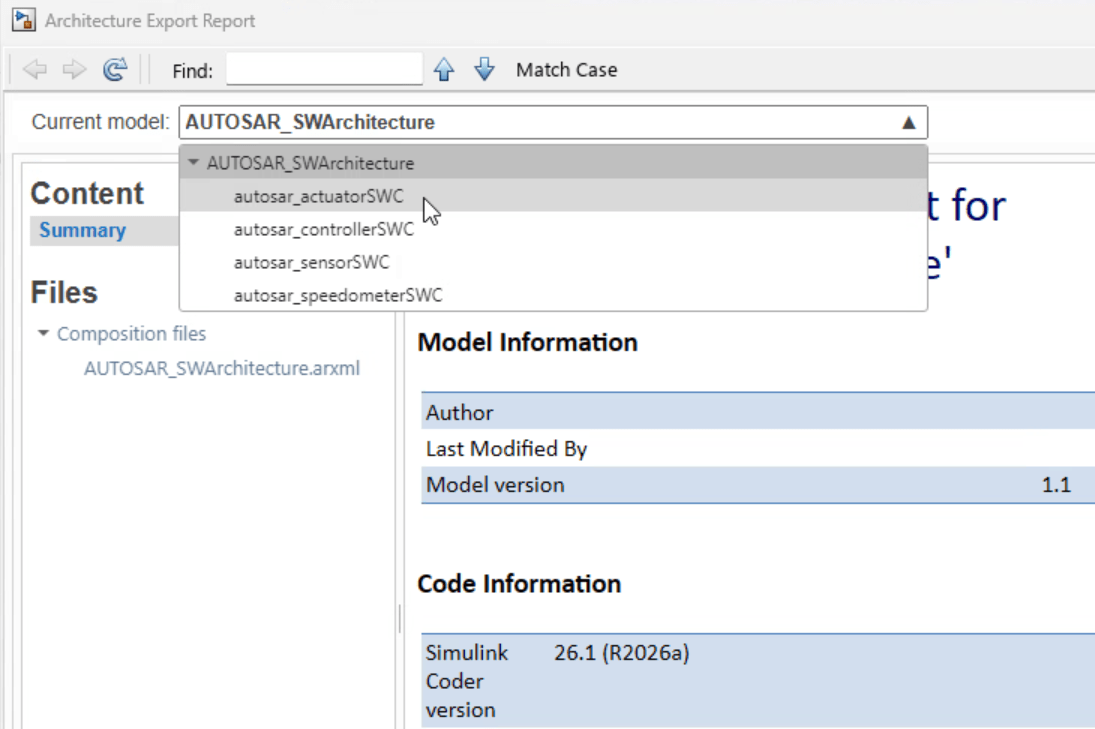

In the architecture export report, you can navigate to code generated for each of the component models. For example, to view code for the model autosar_actuatorSWC, select it from the Current model list.

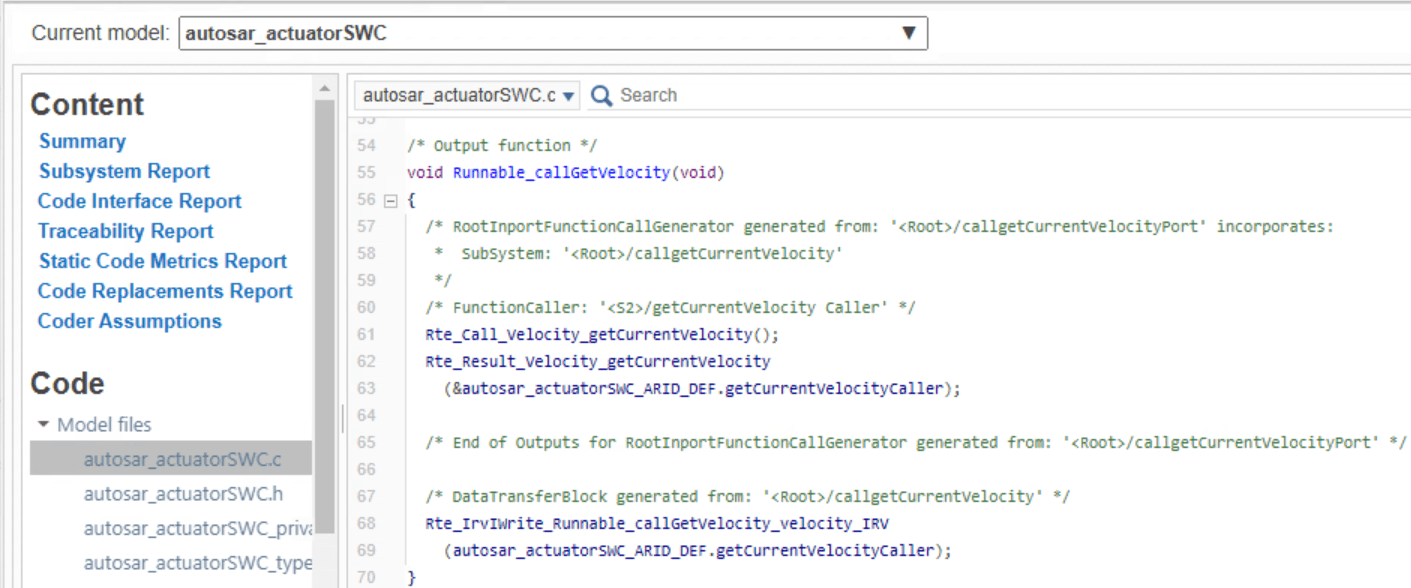

For model AUTOSAR_SWArchitecture, which contains a client that invokes a server operation asynchronously, the generated code contains two RTE access function definitions. In ARXML descriptions, operation arguments have a direction: IN, OUT, or INOUT. In the generated code, the Rte_Call function invokes the server operation and passes IN arguments. The Rte_Result function retrieves the server results and passes OUT arguments.

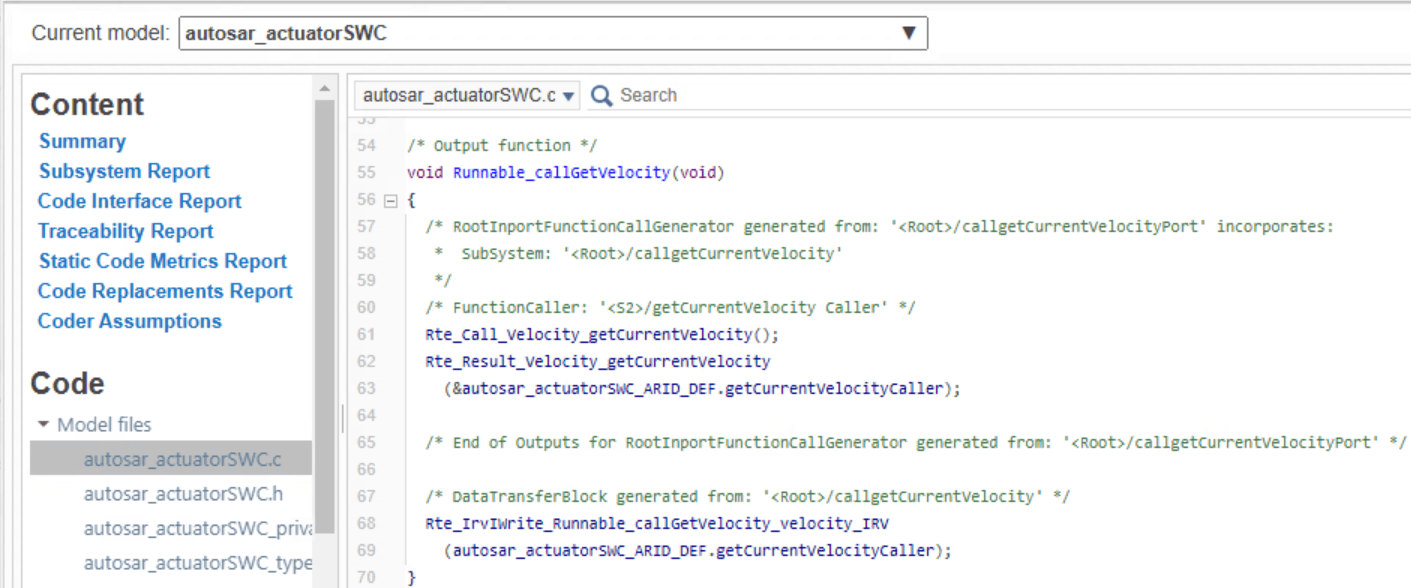

In this example, function Rte_Call_Velocity_getCurrentVelocity invokes the server operation, and function Rte_Result_Velocity_getCurrentVelocity retrieves the result.

In the exported ARXML files, the ASYNCHRONOUS-SERVER-CALL-RESULT-POINT element indicates which runnable processes the result, in this case Runnable_callGetVelocity. The ASYNCHRONOUS-SERVER-CALL-RESULT-POINT references the corresponding ASYNCHRONOUS-SERVER-CALL-POINT.

<RUNNABLE-ENTITY UUID="...">
    <SHORT-NAME>Runnable_callGetVelocity</SHORT-NAME>
    <MINIMUM-START-INTERVAL>0</MINIMUM-START-INTERVAL>
    <ASYNCHRONOUS-SERVER-CALL-RESULT-POINTS>
        <ASYNCHRONOUS-SERVER-CALL-RESULT-POINT UUID="...">
            <SHORT-NAME>SCR_Velocity_getCurrentVelocity</SHORT-NAME>
            <ASYNCHRONOUS-SERVER-CALL-POINT-REF DEST="ASYNCHRONOUS-SERVER-CALL-POINT">/Components/autosar_actuatorSWC/autosar_actuatorSWC_IB/Runnable_callGetVelocity/SC_Velocity_getCurrentVelocity</ASYNCHRONOUS-SERVER-CALL-POINT-REF>
        </ASYNCHRONOUS-SERVER-CALL-RESULT-POINT>
    </ASYNCHRONOUS-SERVER-CALL-RESULT-POINTS>
    <CAN-BE-INVOKED-CONCURRENTLY>false</CAN-BE-INVOKED-CONCURRENTLY>
    <SERVER-CALL-POINTS>
        <ASYNCHRONOUS-SERVER-CALL-POINT UUID="...">
            <SHORT-NAME>SC_Velocity_getCurrentVelocity</SHORT-NAME>
            <OPERATION-IREF>
                <CONTEXT-R-PORT-REF DEST="R-PORT-PROTOTYPE">/Components/autosar_actuatorSWC/Velocity</CONTEXT-R-PORT-REF>
                <TARGET-REQUIRED-OPERATION-REF DEST="CLIENT-SERVER-OPERATION">/Interfaces/SpeedInterface/getCurrentVelocity</TARGET-REQUIRED-OPERATION-REF>
            </OPERATION-IREF>
            <TIMEOUT>1.0E-06</TIMEOUT>
        </ASYNCHRONOUS-SERVER-CALL-POINT>
    </SERVER-CALL-POINTS>
    <SYMBOL>Runnable_callGetVelocity</SYMBOL>
    <WRITTEN-LOCAL-VARIABLES>
        <VARIABLE-ACCESS UUID="...">
            <SHORT-NAME>WV_velocity_IRV</SHORT-NAME>
            <ACCESSED-VARIABLE>
                <LOCAL-VARIABLE-REF DEST="VARIABLE-DATA-PROTOTYPE">/Components/autosar_actuatorSWC/autosar_actuatorSWC_IB/velocity_IRV</LOCAL-VARIABLE-REF>
            </ACCESSED-VARIABLE>
        </VARIABLE-ACCESS>
    </WRITTEN-LOCAL-VARIABLES>
</RUNNABLE-ENTITY>
