Hybrid Electric Vehicle Multimode Reference Application

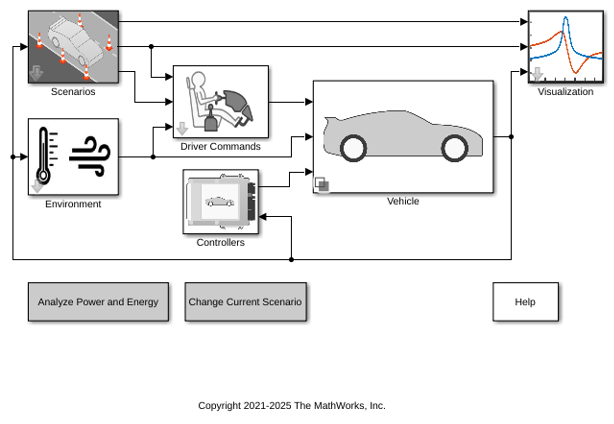

The hybrid electric vehicle (HEV) multimode reference application represents a full multimode HEV model with an internal combustion engine, transmission, battery, motor, generator, and associated powertrain control algorithms. Use the reference application for powertrain matching analysis and component selection, control and diagnostic algorithm design, and hardware-in-the-loop (HIL) testing.

Open the Hybrid Electric Vehicle Multimode Reference Application Project

Run the following command to create and open a working copy of the project files:

autoblkHevStart

For more information, see Explore the Hybrid Electric Vehicle Multimode Reference Application.

helpview('autoblks','hybrid_refapp')
