EV Charging Reference Application

The electric vehicle (EV) charging reference application models charging of an EV battery from an electric vehicle supply equipment (EVSE) unit, including digital communication between them. The application provides three charging options, each utilizing a different protocol combination for basic charging and high-level communication. The application incorporates a mapped battery block without thermal management.

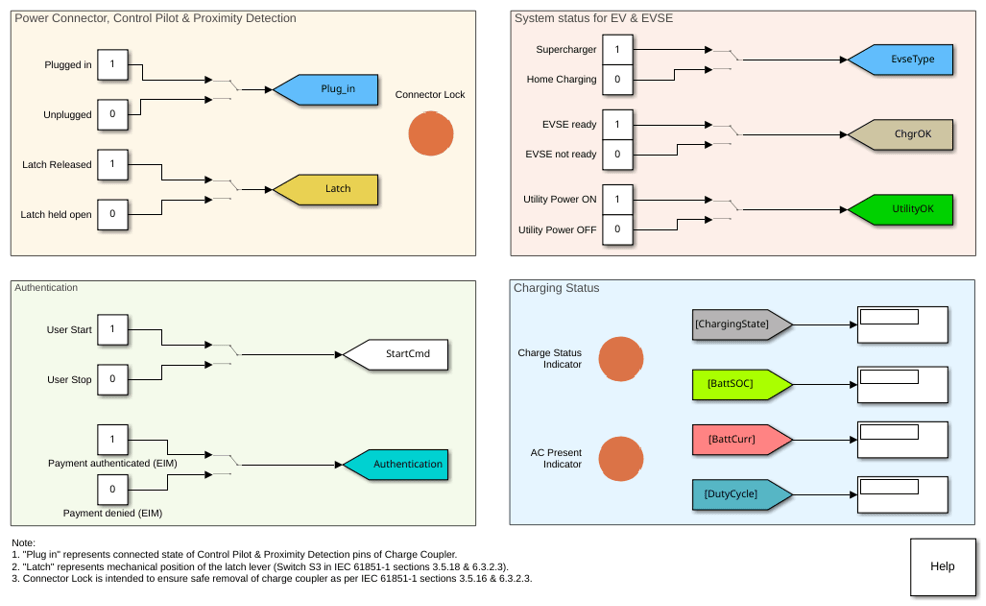

During the charging process, a dashboard displays the system states and the charging progress.

For more information, see Charge an Electric Vehicle.
