animate

Replace existing data with new data for animation

Syntax

animate(p,data)

animate(p,angle,magnitude)

Description

animate(p,data) removes all the current data from polar plot, p and adds new data, based on real amplitude values, data.

animate(p,angle,magnitude) removes all the current data polar plot, p and adds new data sets of angle vectors and corresponding magnitude matrices.

Examples

Replace Existing Polar Plot Data For Animation

Create a helix antenna that has a 28 mm radius, a 1.2 mm width, and 4 turns. Plot the directivity of the antenna at 1.8 GHz.

hx = helix(Radius=28e-3, Width=1.2e-3, Turns=4);
H = pattern(hx,1.8e9,0,0:1:360);
P = polarpattern(H);

Create a dipole antenna and calculate its directivity at 270 MHz.

d = dipole;
D = pattern(d,270e6,0,0:1:360);

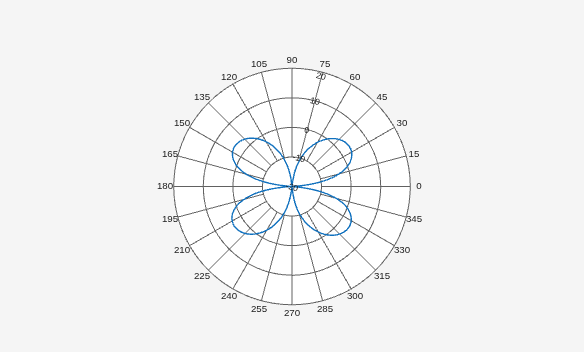

Replace the existing polar plot of the helix antenna with the directivity of the dipole using the animate method.

animate(P,D);

Animate Using Cavity Data

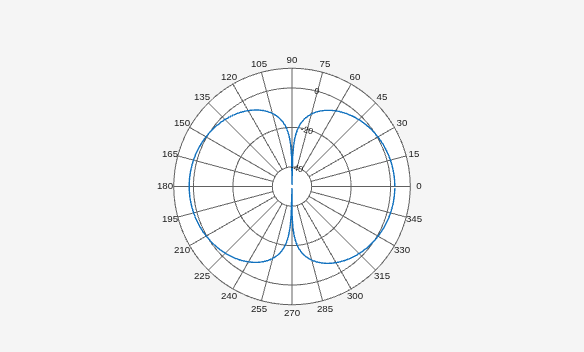

Create a default dipole antenna and plot the polar pattern of its directivity at 1 GHz.

d = dipole;
D = pattern(d,75e6,0,0:1:360);
P = polarpattern(D);

Create a default cavity antenna. Calculate the directivity of the antenna and write the data to cavity.pln using the msiwrite function.

c = cavity;
msiwrite(c,2.8e9,"cavity.pln",Name="Cavity Antenna Specifications");

Read the cavity specifications file into Horizontal, Vertical and Optional structures using the msiread function.

[Horizontal,Vertical,optional]= msiread("cavity.pln")

Horizontal = struct with fields:
    PhysicalQuantity: 'Gain'
           Magnitude: [360×1 double]
               Units: 'dBi'
             Azimuth: [360×1 double]
           Elevation: 0
           Frequency: 2.8000e+09
               Slice: 'Elevation'

Vertical = struct with fields:
    PhysicalQuantity: 'Gain'
           Magnitude: [360×1 double]
               Units: 'dBi'
             Azimuth: 0
           Elevation: [360×1 double]
           Frequency: 2.8000e+09
               Slice: 'Azimuth'

optional = struct with fields:
         name: 'Cavity Antenna Specifications'
    frequency: 2.8000e+09
         gain: [1×1 struct]

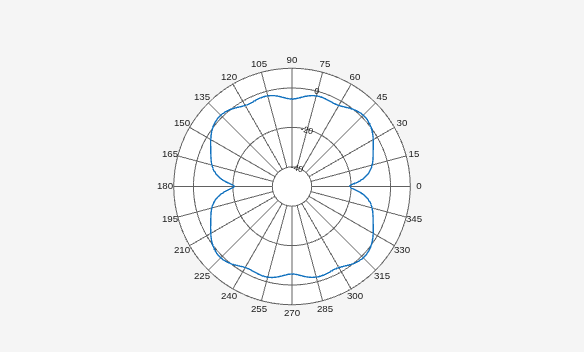

Replace data from the dipole antenna with data from cavity antenna.

animate(P,Horizontal.Azimuth,Horizontal.Magnitude);

Input Arguments

p — Polar plot

scalar handle

Polar plot, specified as a scalar handle.

Example: polarpattern

data — Antenna or array data

real length-M vector | real M-by-N matrix | real N-D array | complex vector or matrix

Antenna or array pattern data, specified as one of the following:

• A real length-M vector, where M contains the magnitude values with angles assumed to be $$\frac{(0:M-1)}{M}\times {360}^{\circ }$$ degrees.

• A real M-by-N matrix, where M contains the magnitude values and N contains the independent data sets. Each column in the matrix has angles taken from the vector $$\frac{(0:M-1)}{M}\times {360}^{\circ }$$ degrees. The set of each angle can vary for each column.

• A real N-D array, where N is the number of dimensions. Arrays with dimensions 2 and greater are independent data sets.

• A complex vector or matrix, where data contains Cartesian coordinates ((x,y) of each point. x contains the real part of data and y contains the imaginary part of data.

When data is in a logarithmic form such as dB, magnitude values can be negative. In this case,polarpattern plots the lowest magnitude values at the origin of the polar plot and highest magnitude values at the maximum radius.

Example: pattern(dipole,70e6)

angle — Set of angles

vector in degrees

Set of angles, specified as a vector in degrees.

magnitude — Set of magnitude values

vector | matrix

Set of magnitude values, specified as a vector or a matrix. For a matrix of magnitude values, each column is an independent set of magnitude values and corresponds to the same set of angles.
