shapes

Extract and modify metal layers from PCBReader object

Since R2020b

Syntax

shapes(B)

Description

shapes(B) extracts and modifies the individual metal layers from a PCBReader object.

Examples

Extract and Modify Metal Layer

Use the gerberRead function to import top-layer Gerber file.

P = gerberRead('antenna_design_file.gtl');

Extract the metal layer from the file using the shapes function.

S = shapes(P);

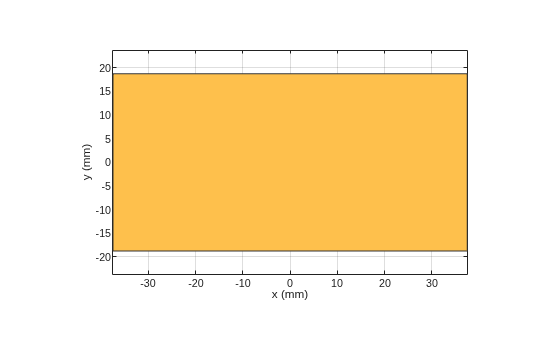

View the metal layer.

figure
show(S)

Modify the metal layer.

S.Vertices = [-1 0 0;-0.5 0.2 0;0 0 0;0.0375 -0.0188 0];

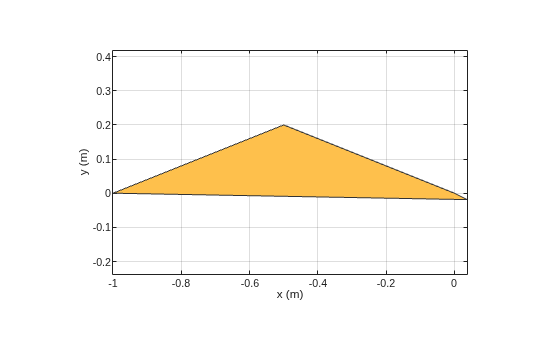

View the modified metal layer.

show(S)

Extract Metal from Two-Layer Design PCBReader Object

Create a PCBReader object.

B = PCBReader;

Import a two-layer design.

st = B.StackUp;
st.Layer2 = "UWBVivaldi.gtl";
st.Layer4 = "UWBVivaldi.gbl";
B.StackUp = st;

Extract shapes from the metal layers.

S = shapes(B);

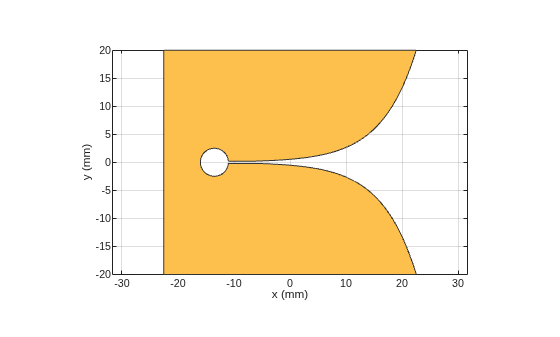

View the top-layer Gerber file.

figure
show(S(1))

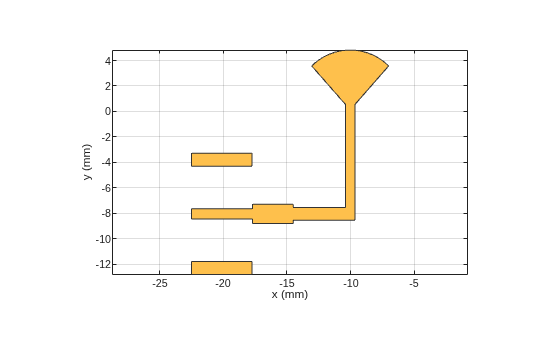

View the bottom-layer Gerber file.

figure
show(S(2))

Input Arguments

B — PCB reader

PCBReader object

PCB reader, specified as a PCBReader object.

Example: B = gerberRead('antenna_desgin_file.gbl')

Version History

Introduced in R2020b
