removeSlivers
Description
removes sliver outliers from boundary of the shape and returns a polygon object.s
= removeSlivers(shapeobject
,slivertol
)
Examples
Remove Slivers from Rectangle Shape for Antenna
Create two rectangle shapes. Change the length and the center of orientation of the second rectangle to the values shown.
rect1 = antenna.Rectangle; rect2 = antenna.Rectangle; rect2.Length = 1e-7; rect2.Center = [0,0.75];
Add rectangle 1 and rectangle 2.
rect3 = rect1 + rect2
rect3 = Polygon with properties: Name: 'mypolygon' Vertices: [8x3 double]

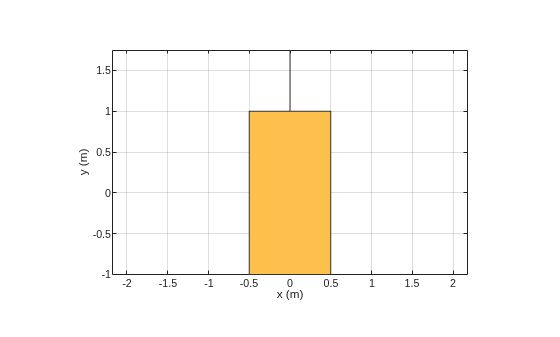

show(rect3)
Remove slivers.
rect4 = removeSlivers(rect3,1e-6)
rect4 = Polygon with properties: Name: 'mypolygon' Vertices: [4x3 double]

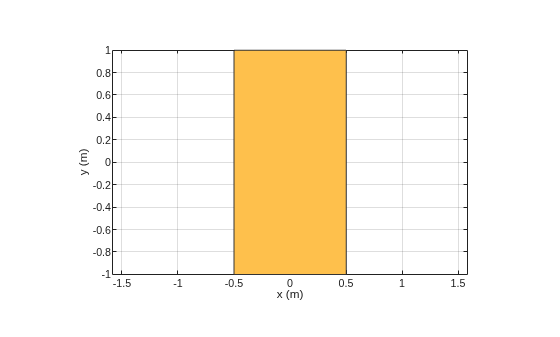

show(rect4)
Input Arguments
shapeobject
— Shape with sliver outlier
2-D shape object
2-D shape with sliver outlier, specified as either:
antenna.Rectangle
,antenna.Circle
,antenna.Ellipse
,antenna.Polygon
, orantenna.Triangle
object.Object created using
shapes
function.shape.Rectangle
,shape.Circle
,shape.Ellipse
, orshape.Polygon
object.
Data Types: function
slivertol
— Sliver tolerance
nonnegative scalar
Sliver tolerance, specified as a nonnegative scalar.
Data Types: double
Version History
Introduced in R2020b
