layout

Display array or PCB stack layout

Syntax

layout(array)

layout(pcbstack)

Description

layout(array) displays the layout of the array object. The circles in the layout corresponds to antenna feed points within the array.

example

layout(pcbstack) displays the layout of the PCB stack object. The circles in the layout corresponds to antenna feed points on the PCB.

example

Examples

collapse all

Display Array Layout on X-Y Plane

Open Live Script

Create and view a 3x3 rectangular array layout on the X-Y plane.

h = rectangularArray(Size=[3 3]);
layout(h)

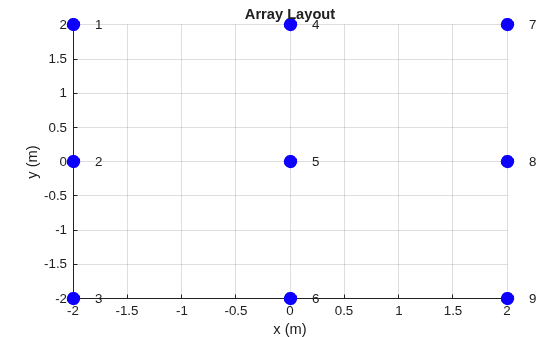

Figure contains an axes object. The axes object with title Array Layout, xlabel x (m), ylabel y (m) contains 10 objects of type scatter, text.

Display PCB Stack Layout

Open Live Script

Default PCB stack layout.

p = pcbStack;
layout(p)

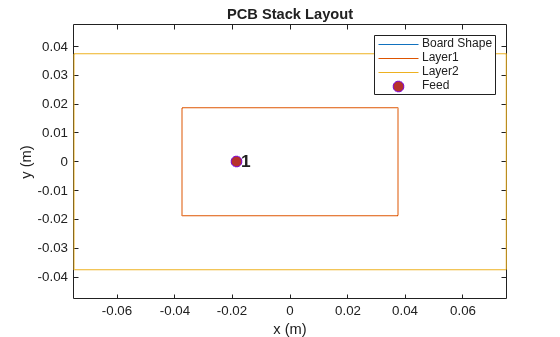

Figure contains an axes object. The axes object with title PCB Stack Layout, xlabel x (m), ylabel y (m) contains 5 objects of type line, text. One or more of the lines displays its values using only markers These objects represent Board Shape, Layer1, Layer2, Feed.
